9.3.3.2.2 Tag Settings

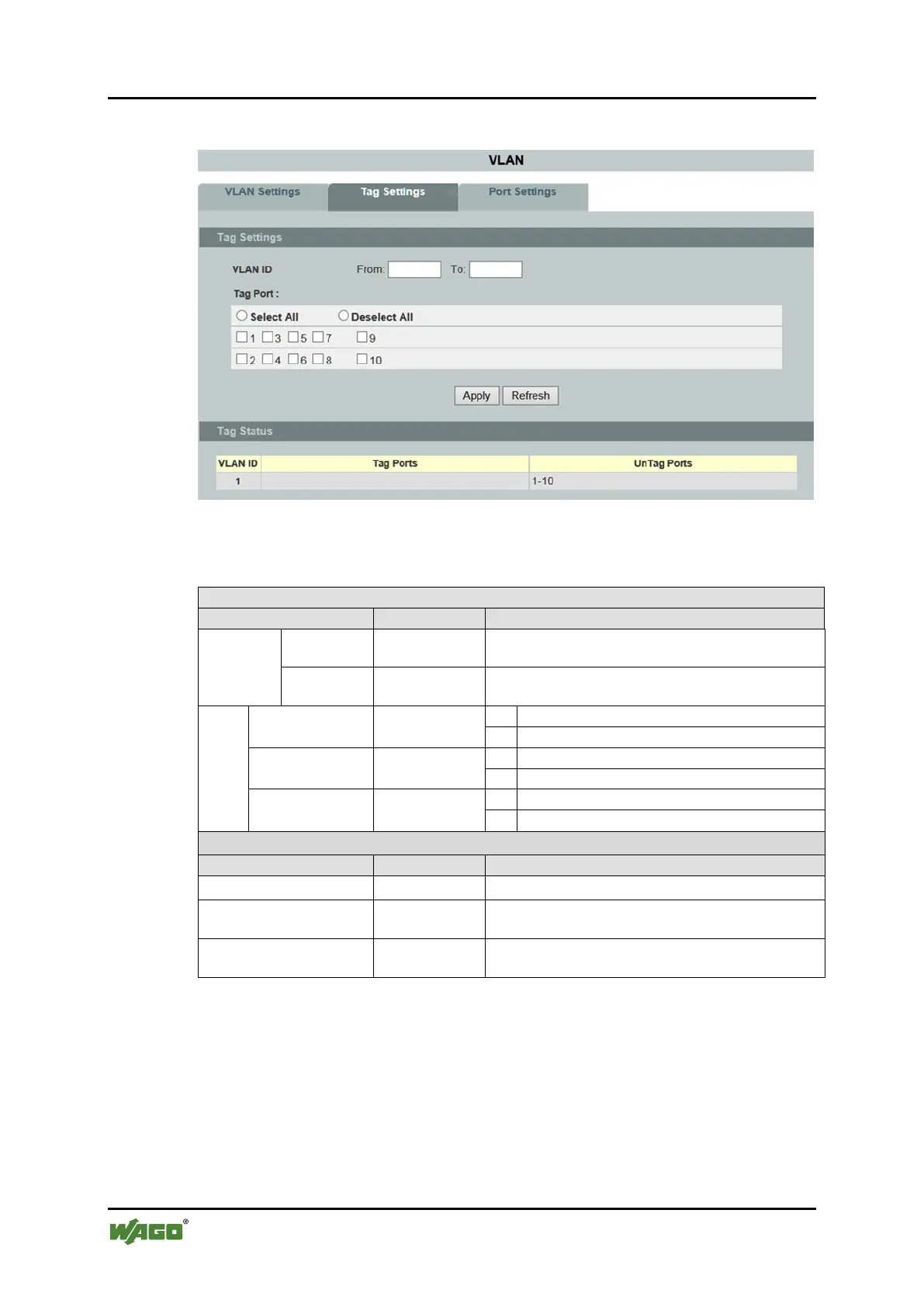

Figure 57: WBM “VLAN” Page – “Tag Settings” Tab
Table 61: WBM “VLAN” Page – “TAG Settings” Tab
Tag Settings
Parameters
Default
Description
VLAN-ID
From:
Enter the VLAN ID for this entry in the input field.
Valid range: 1 … 4094
to:
Enter the VLAN ID for this entry in the input field.
Valid range: 1 … 4094
Tag
Port
Select All


No port is selected as a tagged port.

All ports are selected as tagged ports.
Deselect All


No tagged port is disabled.

All tagged ports are disabled.
 1 …
 10


The port is not enabled.

The port is enabled.
Tag Status
Parameters
Default
Description
VLAN ID
1 … 4094
This column displays the VLAN ID.
Tag Ports
1 … 7
This field displays the ports that have been assigned
as tag ports.
Un Tag Ports
1 … 7
This field displays the ports that have been assigned
as untagged ports.
