Walfront Mach3 - Spindle Speed Control (0-10 V) Setup

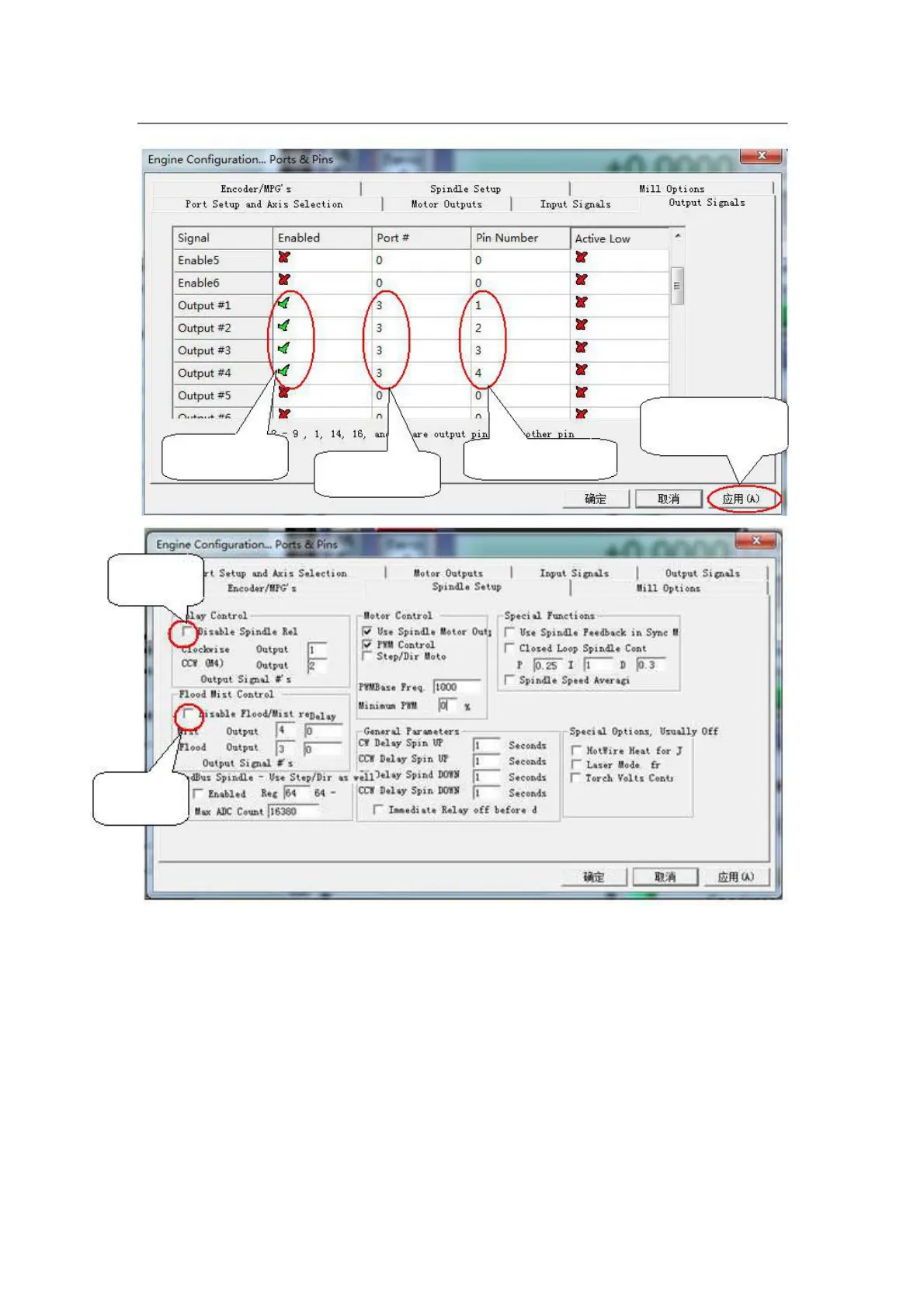

Don’t forget click
“apply”
Pick ticks”√ ”
Pin number 1-4 Enter “3”
Remove
”√ ”
Remove
”√ ”
M3 code control output 1 output, M4 code control output port 2 output,M5 shut down output 1
and output2.
M7 code control output 3 output, M8 code control output port 4 output,M9 shut down output 1
and output2.
2.6 Spindle speed control (0-10V) Setup:
There is 0-10v signal output on the control card, Can be used to connect the Inverter to control the
spindle speed.
According to the actual parameters of the inverter and the spindle, set the maximum spindle
