Walker Edison HANB5B - Page 10

Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved. P.10

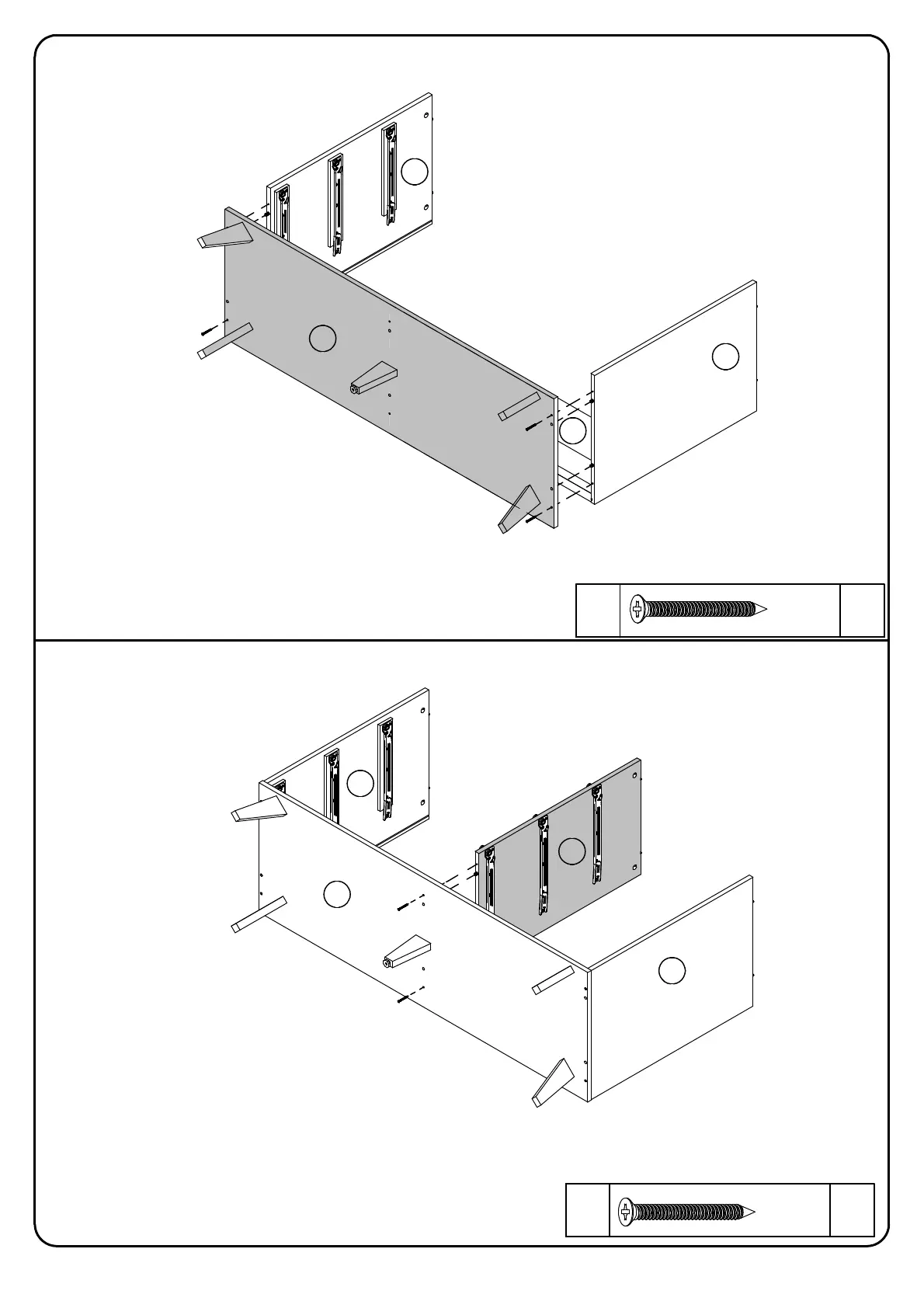

Step 10
Step 11
04
10
F
Ø4x40mm
4
Secure part (4) into parts (2,3) using screw
(F) and philips head screwdriver.
03
02
12
Secure part (10) into part (4) using screw
(F) and philips head screwdriver.
04
02
03
F
Ø4x40mm
2
F
F
F
F
F
F
