Safety Instructions
14
Gear Axle (5810-1)

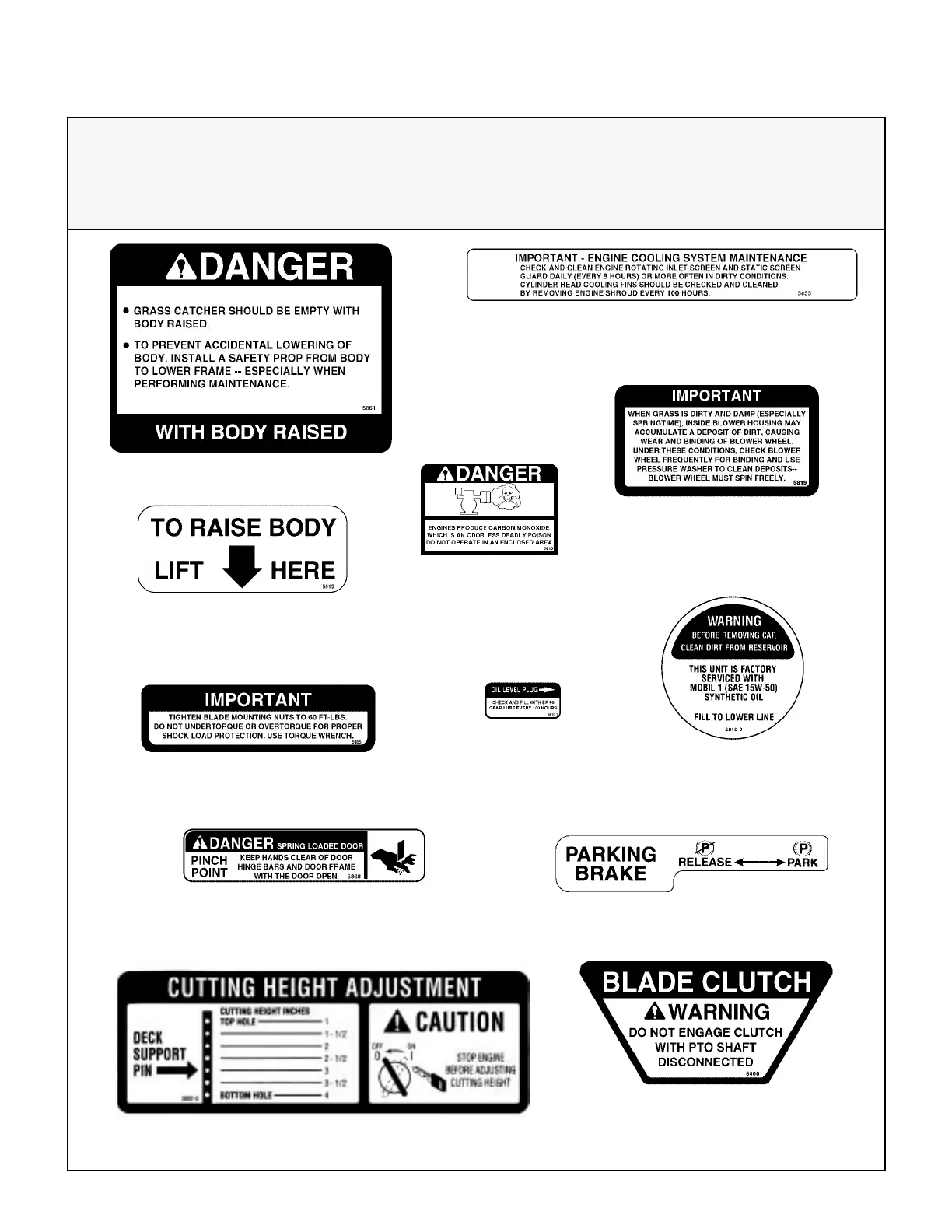

SAFETY, CONTROL, AND INSTRUCTION DECALS
Safety, Control, and Instruction Decals are installed on the machine;
if any are missing, illegible, or damaged, a replacement should be ordered and installed before
putting the machine into operation. The Decal Part Number is listed below and in the Parts Manual.
Hydrostat Oil
Reservoir (5810)
Deck Gearbox Cover (5807-3)
Underside of Body (5861)
Top Rear of Fuel Tank (5855)
Rear Crossbreed of Body (5815)
On Body Adjacent to Clutch
Control Lever (5806)
Catcher Door Hinge Bar, LH and RH Sides (5868)
Deck Carrier Frame (5865)
Parking Brake (7809)
Top of Blower Housing (5819)
Top of Fuel Tank (6810)
