Operating Instructions
26
Parking Brake
The parking brake functions by locking a pin into the
hydrostatic transmission pinion gear teeth. Moving
the lever FORWARD engages the parking brake;
moving the lever BACKWARD releases the brake.
IMPORTANT: Stop the tractor completely before
engaging the parking brake. The parking brake uses
a positive mechanical lock similar to the PARK posi-
tion on an automotive automatic transmission. If the
tractor is moving when the brake is engaged, it will
result in sudden stoppage and possible internal
damage to the axle drive.
NOTE: If pressure on the parking brake pin (e.g.
parked on a hill) makes it impossible to release the
parking brake with the parking brake lever, move the
mower gently forward or backward to release the pin.
Transmission Lockout Levers
The transmission lockout levers disengage the
hydrostatic transmissons. By lifting the lever on top
of the transmission and locking it into place with the
lockout cam, the hydrostatic transmissions are
released to permit freewheeling. By releasing the
cam and lowering the lever, the transmissions are
engaged for normal operation. The transmission
lever in the LOCKOUT position is used to enable
moving the machine without the engine running
(e.g., for service). Refer to TRANSMISSION LOCK-
OUT in this section for operating instructions.
NOTE: The transmission plunger on the side of the
transmission case (activated by the LOCKOUT
LEVER) must be completely released during opera-
tion of the mower, otherwise operation of the
transmission will be erratic.

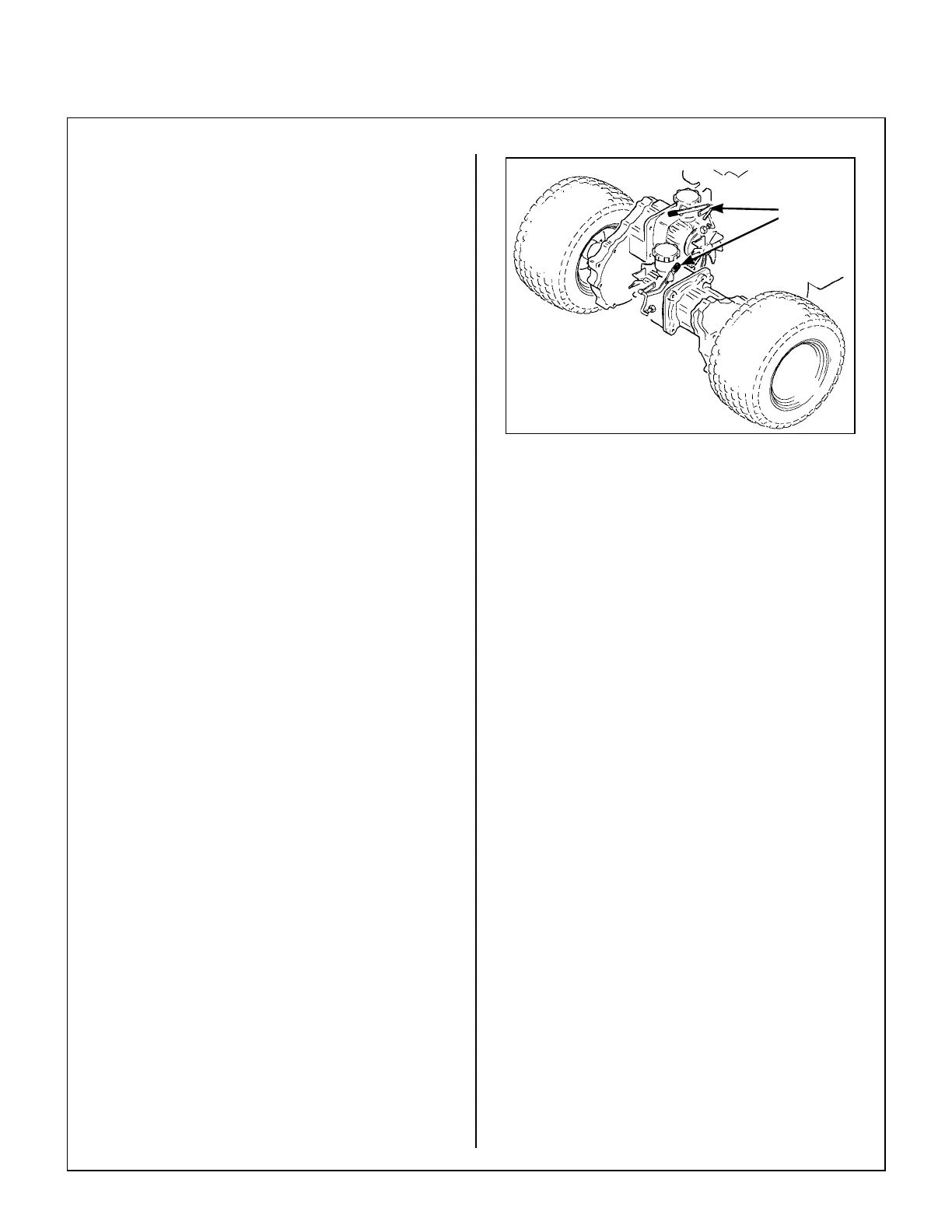

Lockout Lever Location
Hourmeter
The hourmeter, which is located on the left front of
the body, displays operating time accumulated
while the ignition switch is in the ON position.
Light Switch (For Optional Lights)
Operates headlights (when installed).
Lockout
Levers
