Walker MS (13 HP) - Page 31

Operating Instructions
27

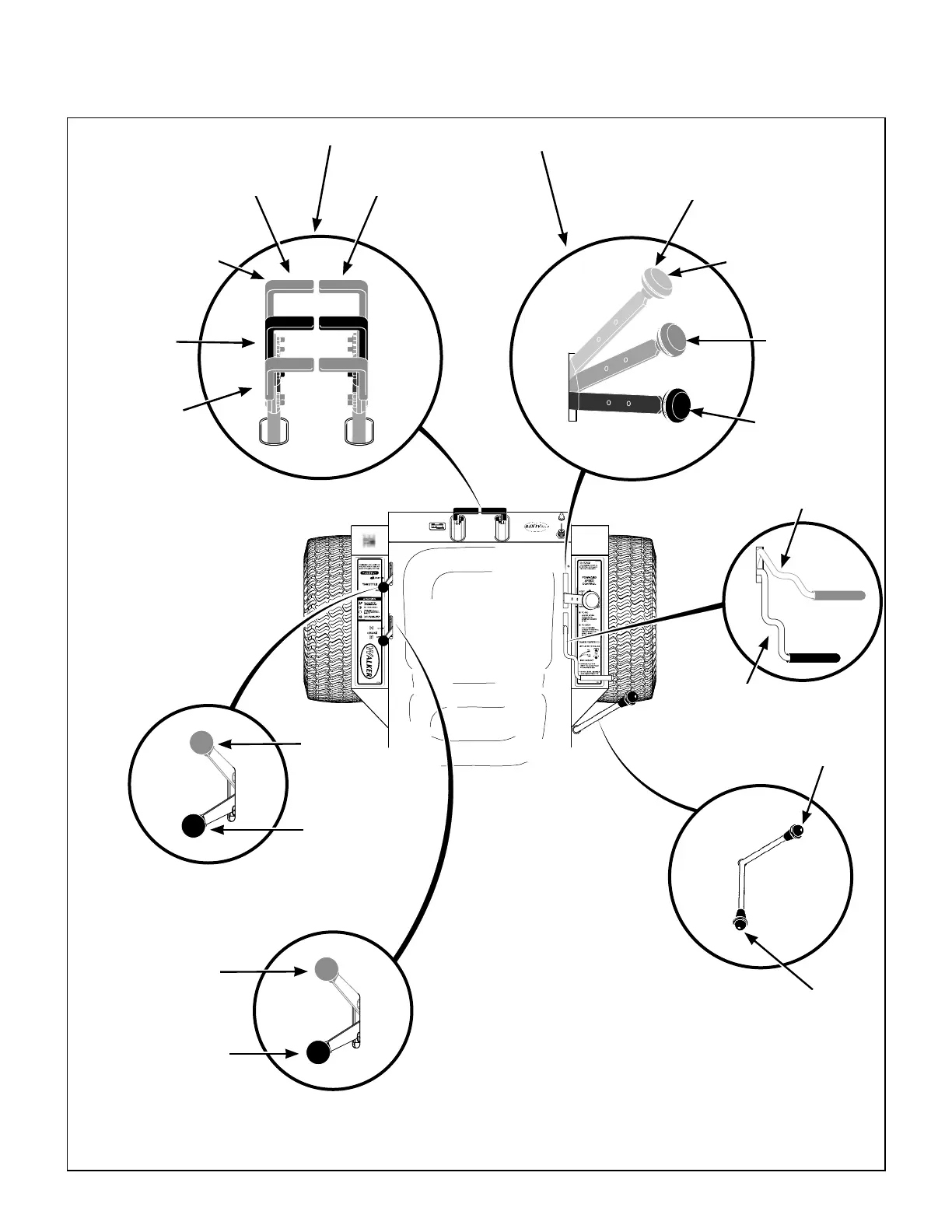

Operating Controls (Top View from Drivers Point of View)
THROTTLE
BLADE CLUTCH
(PTO)
PARKING
BRAKE
LEFT WHEEL
STEERING LEVER
Forward Position
(No Control Change)
Neutral-Park
Position
Reverse Drive
Wheel Motion
Position
RIGHT WHEEL
STEERING LEVER
The Forward Speed Control also Establishes the Neutral-Park Position of the Steering Levers
FORWARD SPEED
CONTROL LEVER (FSC)
Full Forward
Ground Speed
Position
Intermediate
Ground Speed
Position
Neutral-Park
Position
Idle
Position
ON Position
OFF Position
CHOKE
Engaged
Position
Fast
Throttle
Position
Engaged
Position
Disengaged
Position
Disengaged
Position
