Walker MS (13 HP) - Ground Drive Belt

Maintenance Instructions REPLACING/REPAIRING
60
Ground Drive Belt
1. To remove the ground drive belt:
a. Raise the spring-loaded idler to relax belt.
b. Slide belt off pulleys, then release the
idler.

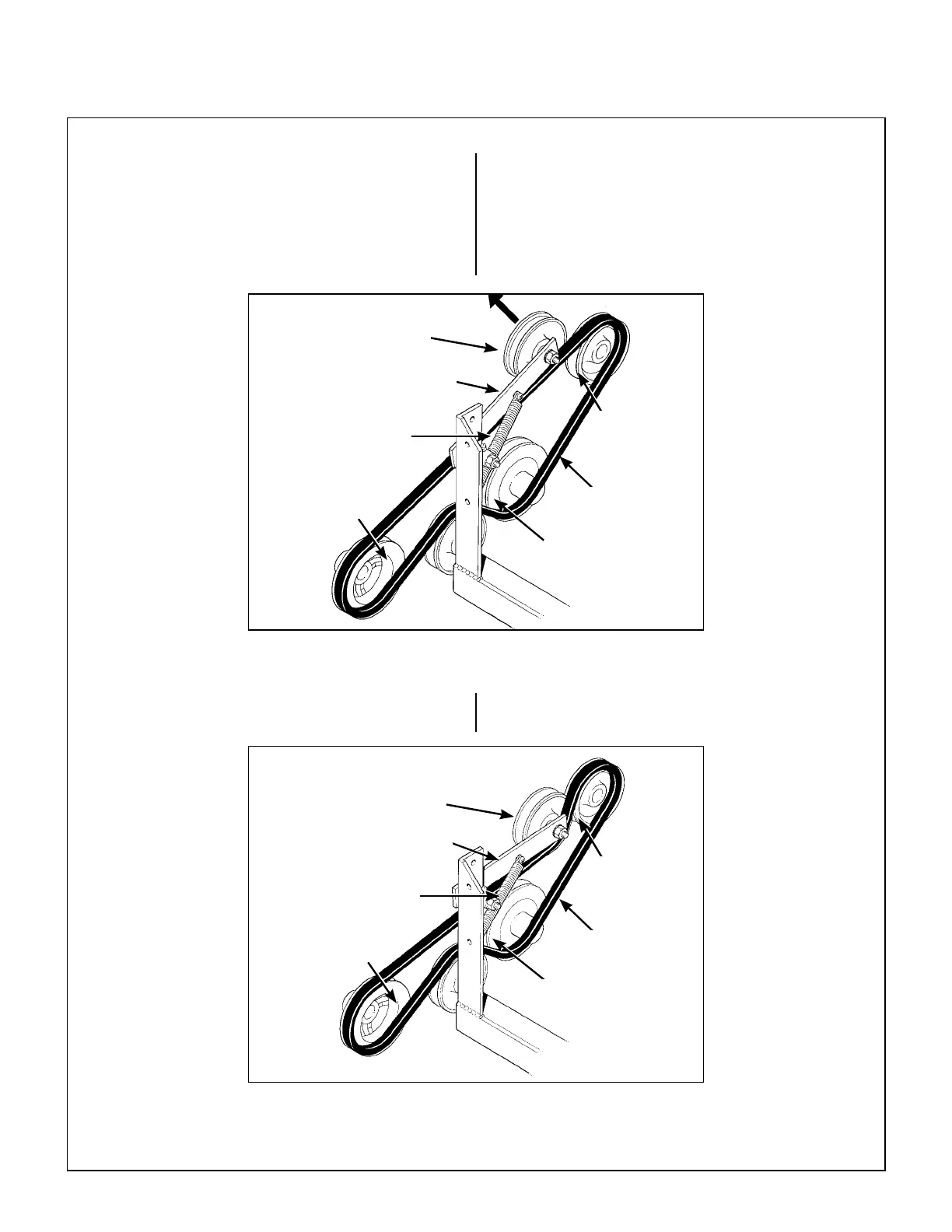

Raise Idler Pulley to Relax Belt
Transmission
Drive Pulley
Ground Drive
Belt
Tension Spring
Idler Pulley
Belt Tightener Arm
Hydrostatic
Drive Pulley
Hydrostatic
Drive Pulley
Ground Drive Belt Assembly (Disengaged)
2. Reverse the procedure to install the ground
drive belt.
Transmission
Drive Pulley
Ground Drive
Belt
Tension Spring
Idler Pulley
Belt Tightener Arm
Hydrostatic
Drive Pulley
Hydrostatic
Drive Pulley
Ground Drive Belt Assembly (Engaged)
