WALKER MANUFACTURING COMPANY
July 2006
SERVICE INSTRUCTIONS
063

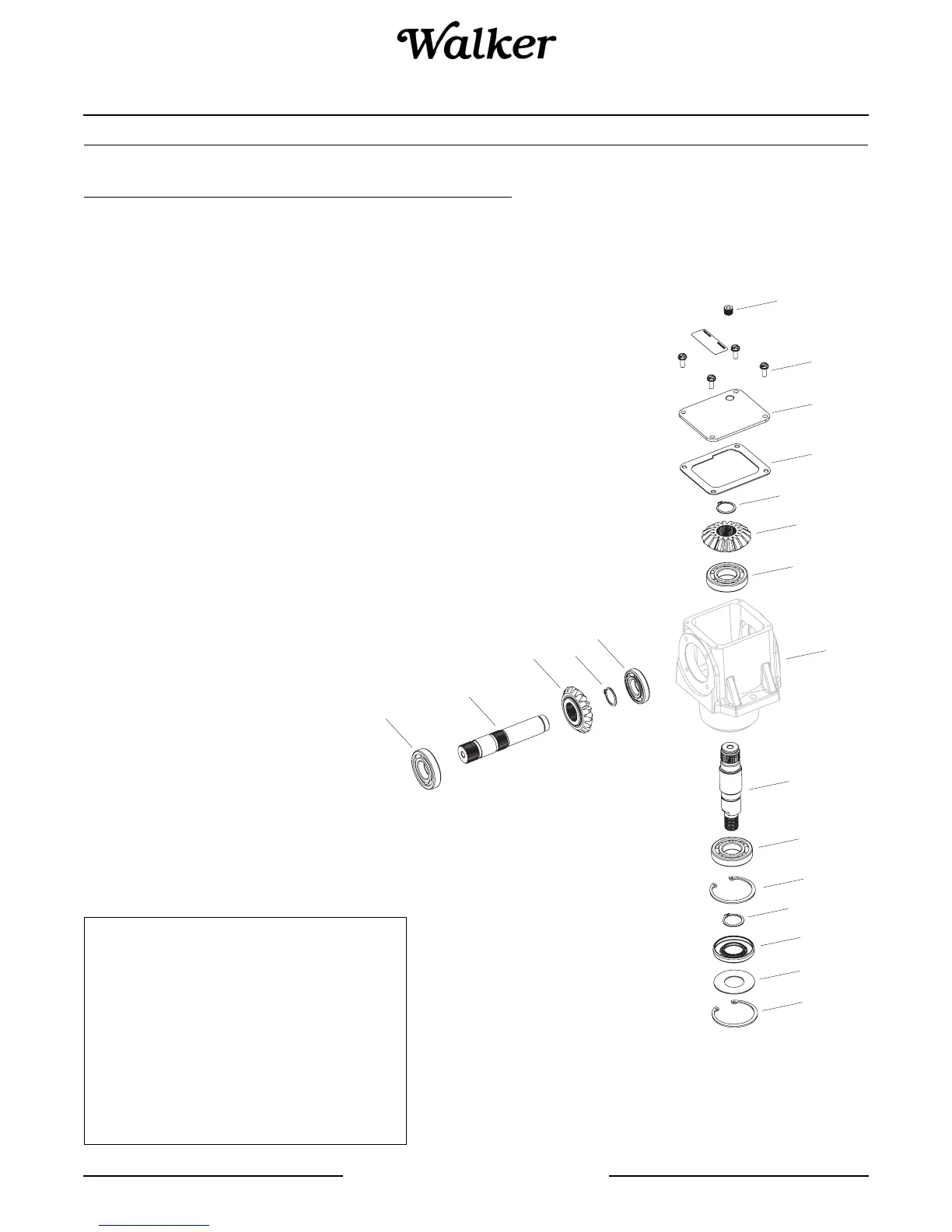

CAST IRON PEERLESS GEARBOX 1050-001 (WALKER P/N 5053-5)
10
4
1
14
5
3
12
2
9
12
7
6
11
15
7
13
5
3
8
12
1 P018 772067 Cover, LH 1
2 N/A 770141 Right Angle Drive Housing 1
3 P003 778101 Miter Gear (17 teeth-steel) 2
4 P008 792025 Screw, RD/HD Self-Tap 4
5 P032 788018 Snap Ring, Gear Retainer 2
6 P028 788019 Snap Ring 1
7 P016 792119 Snap Ring 2
8 P005 776040A Input Shaft 1
9 P059 776261 Output Shaft 1
10 P041 28534 Plug, Cover 1
11 P001 471730 Seal, Oil (Federal-Mogle) 1
12 P024 780034 Ball Bearing 3
13 P019 780024 Ball Bearing 1
14 P004 788028 Gasket Cover 1
15 P062 792219 Seal Protector Washer 1
This Gearbox is used in the following applications:
(RH and LH indicate view from operator seat)
DSD36 RH Gearbox
DSD42 RH Gearbox
DML42 RH Gearbox
DSD54 RH Gearbox
WALKER PEERLESS
ITEM PART PART DESCRIPTION NO.
NO. NO. NO. REQ’D
To Next Page
