Replacement of the Power Board
The Power board of the Commander 2 charger is enclosed within the plastic body of the charger.
The Power board consists of the following components:
• Power Supply Unit
• Wired Communications: MID, Power Sharing, Control pilot, etc.
• Energy Metering
The Power board of the Commander 2 charger, if malfunctioning or damaged can be replaced by
performing the following steps:
Carefully remove the communications cable
from the body of the charger.

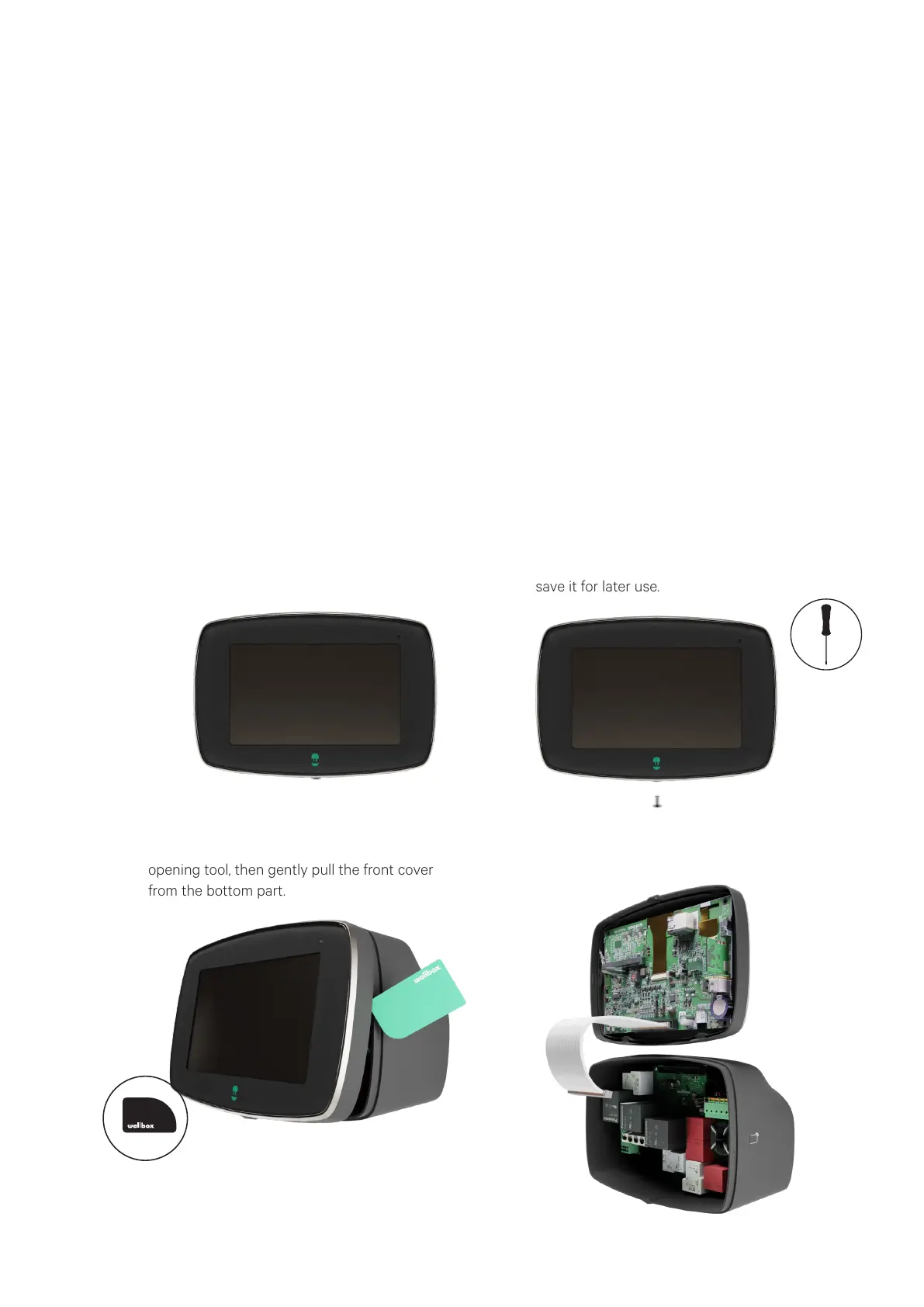

Unclip the lateral and bottom clips with the
opening tool, then gently pull the front cover
from the bottom part.
3. 4.
Removing the old Power board
Unscrew the Torx screw at the bottom of
the charger using a Torx T9 screwdriver and
save it for later use.
Turn o the power supply to the charger.
1. 2.
