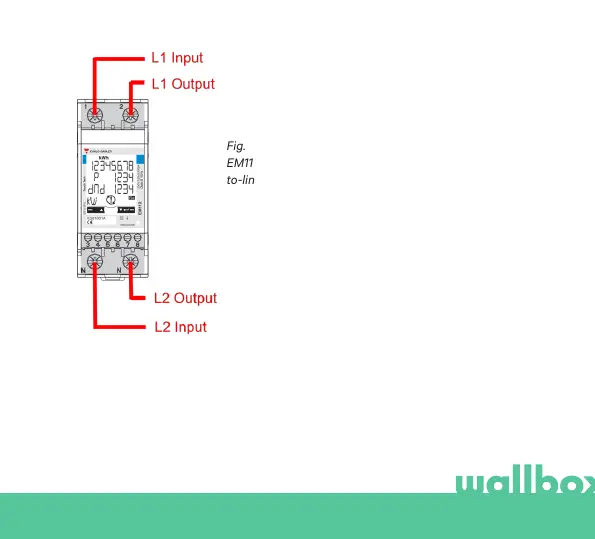

Fig. A1.2 Power lines installation on an
EM112 without neutral line and/or line-
to-line voltage below 260V.
In the following pages Fig. A1.3, Fig. A1.4, Fig. A1.5 and Fig. A1.6 show
where to connect the cabling to the Wallbox.
Depending on the model, the Wallbox may label RS485A for D+ and
RS485B for D-.
