Wallbox Power Boost - Energy Meter Location

6

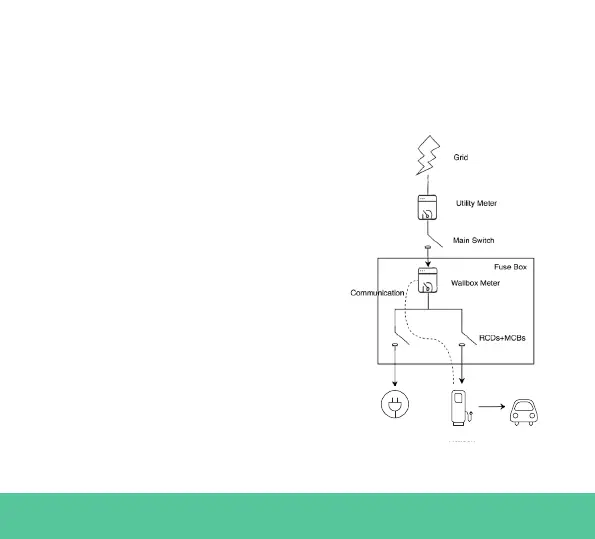

Fig. 1: Schematic location of the
Wallbox meter
As shown in Fig. 1, the energy meter
must be located after the utility meter
(labled as “Wallbox Meter”) and before
the split of power for the house.
Install the energy meter to the mains
according to its Installation Guide.
3. Location of the Energy Meter
CarWallboxOther house loads
