4.5 Machine Components
The WP845 model is shown, however both 800 Series models
have the same components.
01840
1
3
12
13
14
15
16
17
19 20
23 22
26 24
27
11 910 8
7 6
2
4
21
5
18
25

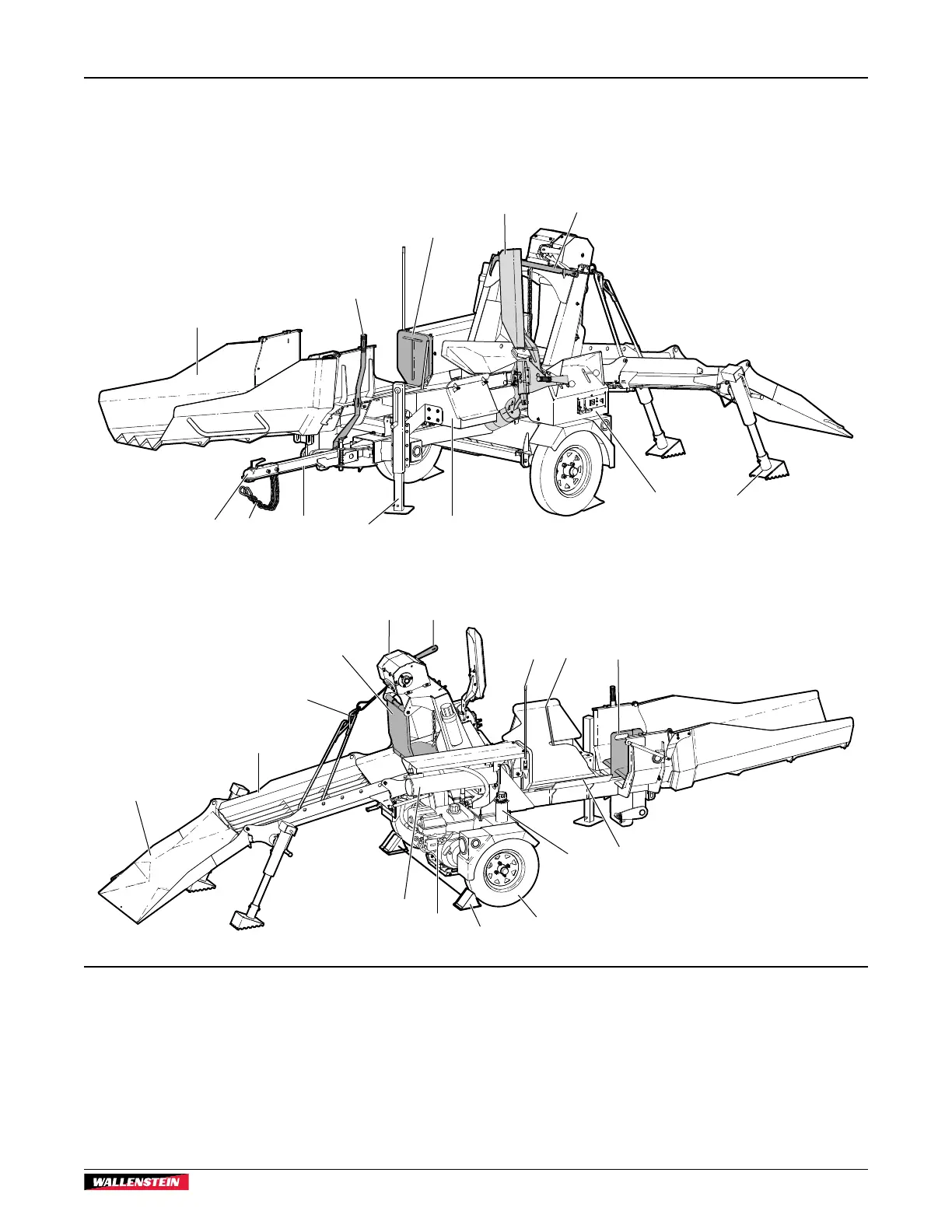

Fig. 6 – Machine components
1. Splitter chute
2. Wedge-height adjustment lever
3. Push block
4. Chain-saw holder
5. Hookaroon
6. Bracing jacks
7. Operator control panel
8. Toolbox
9. Trailer jack
10. Pivot tongue
11. Safety chains
12. Ball-hitch
13. Lead-in chute
14. Log-loader chute
15. Winch rope and hook
16. Log stabilizer
17. Winch
18. Winch gear lever
19. Push-block locator
20. Log-length guide
21. Splitting wedge
22. Splitting cradle
23. Hydraulic fluid reservoir
24. Wheels –5.30-12 LRC USA Trail 4on4"
25. Wheel chocks
26. Vanguard® engine
27. Hydraulic cylinder (push block)
WP845 / WP875
Trailer Firewood Processor
Familiarization
