5.3 Splitting-Wedge Height
Adjustment Lever
The lever adjusts the height of the splitting wedge to align it with
the log. For instructions, see Set the Splitting-Wedge Height on
page 37.
High
Move the lever toward the High setting to
raise the splitting wedge.
Low
Move the lever toward the Low setting to
lower the splitting wedge.
01228

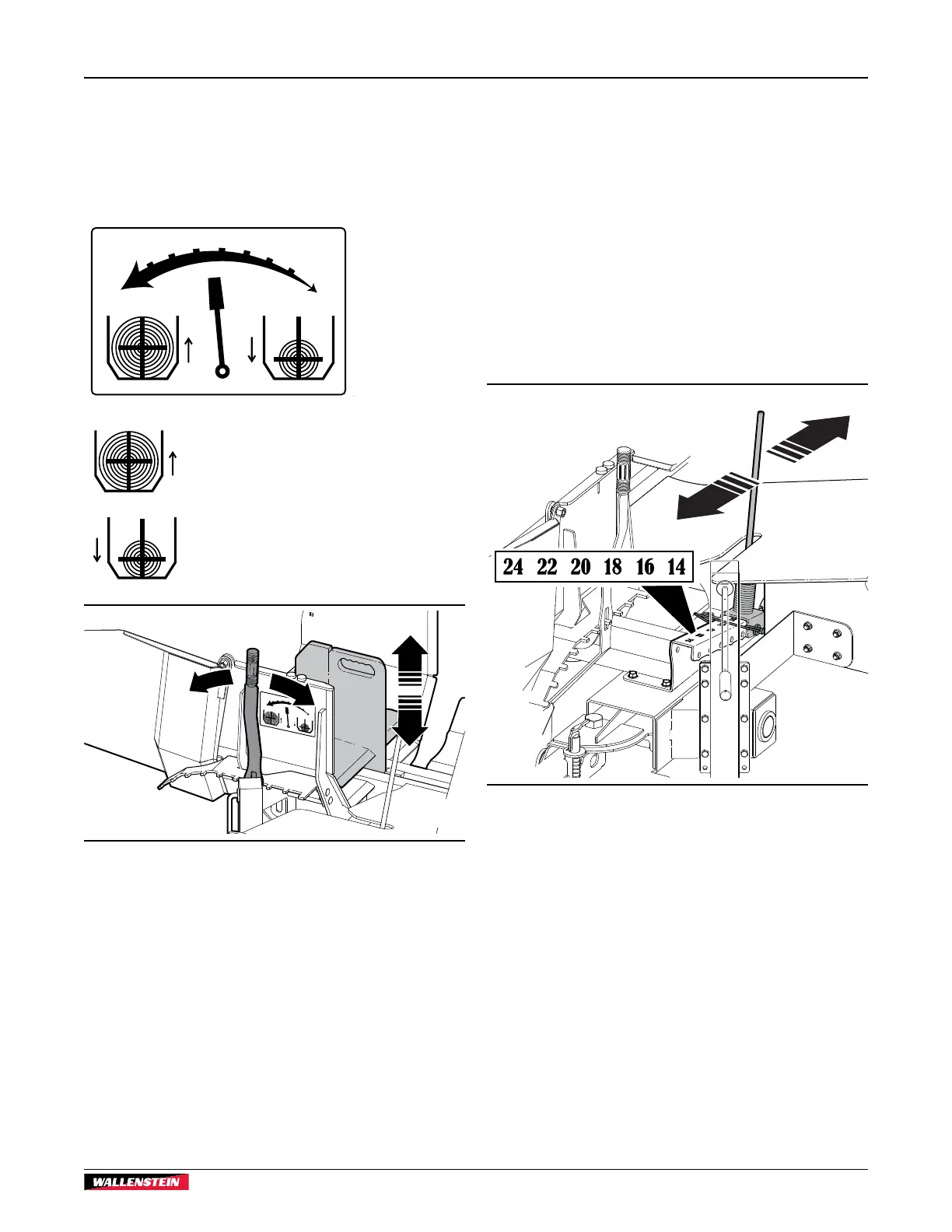

Fig. 13 – Splitting-wedge height adjustment lever
5.4 Log-length Guide
The log-length guide is located on the LH side of the splitting
cradle. The operator can select the desired log length. For
instructions, see Set the Log-length Guide on page 37.
The log-length guide can be set to one of the following lengths:
• 14 in (37 cm)
• 16 in (41 cm)
• 18 in (46 cm)
• 20 in (51 cm)
• 22 in (56 cm)
• 24 in (61 cm)
01142
Fig. 14 – Log-length guide
WP845 / WP875
Trailer Firewood Processor
Controls
23
