5.5 Splitter Chute Height Adjustment
Use the adjustable sliding bracket to set the splitter chute height.
The front end of the splitter chute can be set to a maximum
height of 54" (1.37 m).
This feature provides a method to load split wood directly onto a
conveyor or into a high-sided dump trailer.
For instructions, see Set the Splitter Chute Height on page
36.
01229

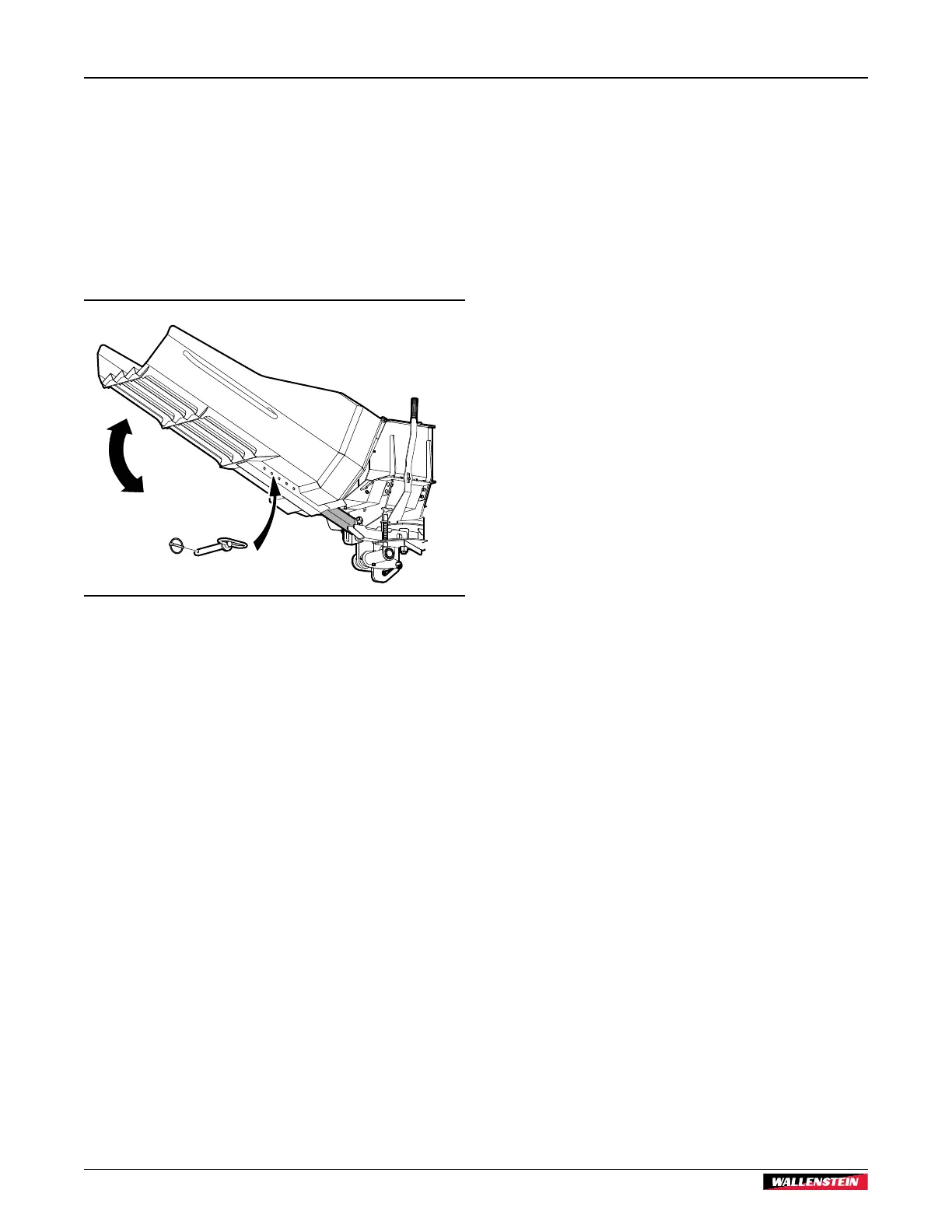

Fig. 15 – Splitter chute height adjustment
