6.10.1 Unfold the Lead-in and Log-Loader
Chutes
1. Lift the bracing jacks to the brace position.
For each jack:
- Remove the snapper pin.
- Lift the jack up to the brace position.
- Install the snapper pin to secure the jack.
2. Hold the log-loader chute to prevent it from falling, while
you disconnect the log-loader chute lock arm:
- Remove the linchpin from the tab on the LH side of the
log-loader chute.
- Remove the lock arm from the log-loader chute and
rotate it down to the machine frame.
Make sure the tab on the LH side of the machine frame
goes through the lock arm slot.
- Insert the linchpin through the tab to secure the lock
arm.
3. Carefully fold down the log-loader and lead-in chutes until
the bracing jacks are on the ground.
4. Close the two toggle-clamp latches to secure the log-loader
chute. The latches are located below the log-loader chute
(one on each side):
- Rotate the handle down to the open position.
- Place the latch bar over the catch plate.
- Rotate the handle up to the closed position.
5. Use the handle to unfold the lead-in chute.
6. Adjust the bracing jacks until the feet are set firmly in the
ground and they support the log-loader chute.
Make sure the bottom edge of the lead-in chute is level with
and touches the ground to avoid logs getting snagged.
01225

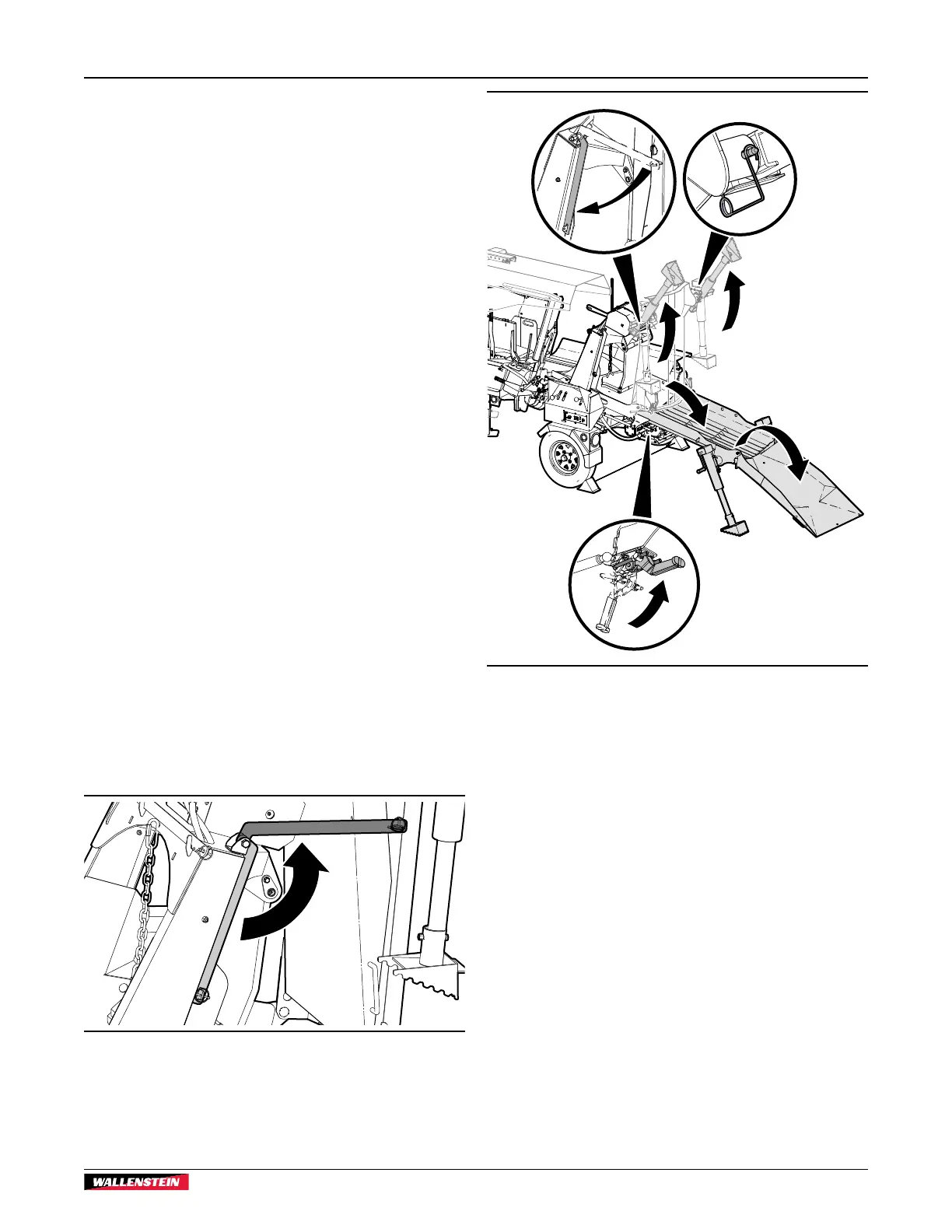

Fig. 20 – Lock arm and latch pin
01833
Fig. 21 – Unfold the lead-in and log loader chutes
WP845 / WP875
Trailer Firewood Processor
Operating Instructions
35
