Replacing Switch and Power Close Hoses
6. Secure the hoses to the front cover leaving 8” and 16” of hose exposed from the
edge of the lower guard.
7. Secure the switch wire to the outside guard using the holes provided using wire ties.
8. Secure the other end of the hose with shield to the inside guard using bolts and
brackets removed in step 4.
9. Install outside guard back in place using the two bolts.
10. Refasten the switch to the column using the two bolts.

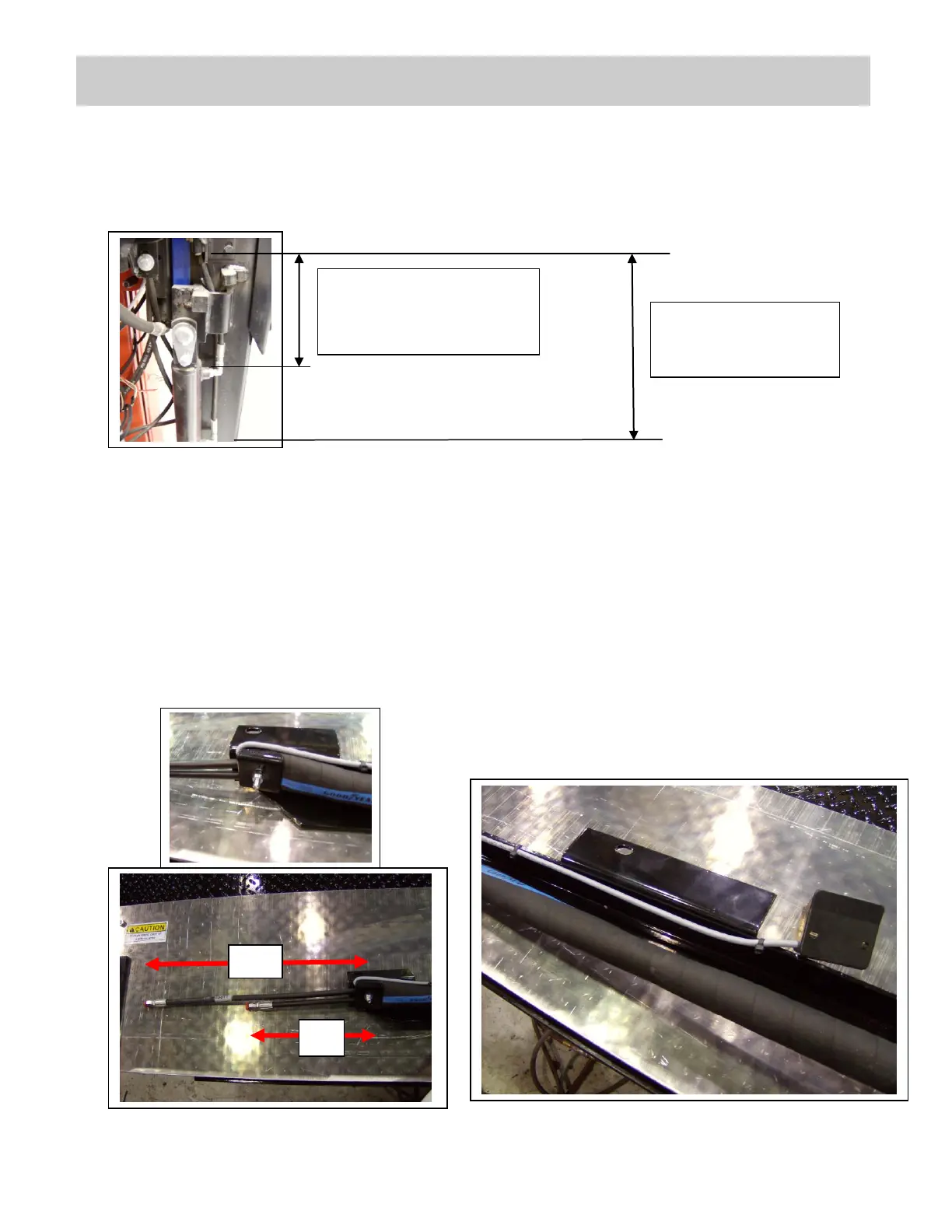

8” from edge of guard
for hose 75489469
female end.
16” from edge of
guard for hose
75489466 – female
end
