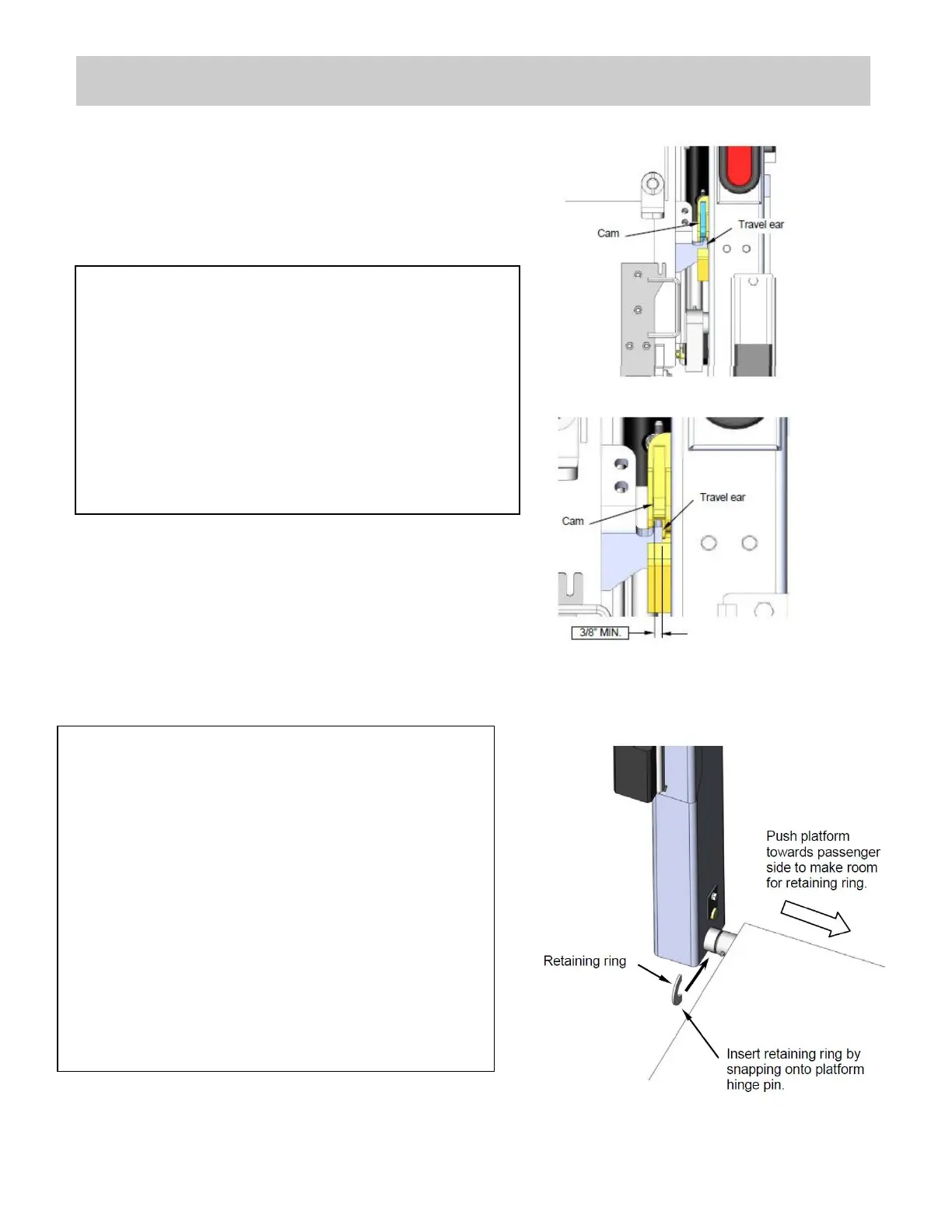

CHECK TRAVEL LATCH ENGAGEMENT
Store platform in travel latch.
Check that travel ear engages the cam by 3/8”
minimum.
If travel ear engages cam less than 3/8” add
retaining
ring to drivers side hinge pin between platform and
runner hinge tube. See INSTALLING PLATFORM
SHIM instructions below.
INSTALLING PLATFORM RETAINING RING
a. Retaining rings should be zip tied to one of the
hydraulic hoses inside the pumpbox. Two are
included if necessary.
b. Lower platform to 20” above ground.
c. Push platform towards passenger side to make
room for retaining ring.
d. Insert retaining ring between platform and
runner hinge tube by snapping onto platform
hinge pin.
e. If travel ear engagement distance is still less
than 3/8” add second retaining ring if platform
can be moved towards curb side to make a gap
greater than 1/8”.
To Next Page
