WALTCO WDV - Series Hydraulic Circuit Explained

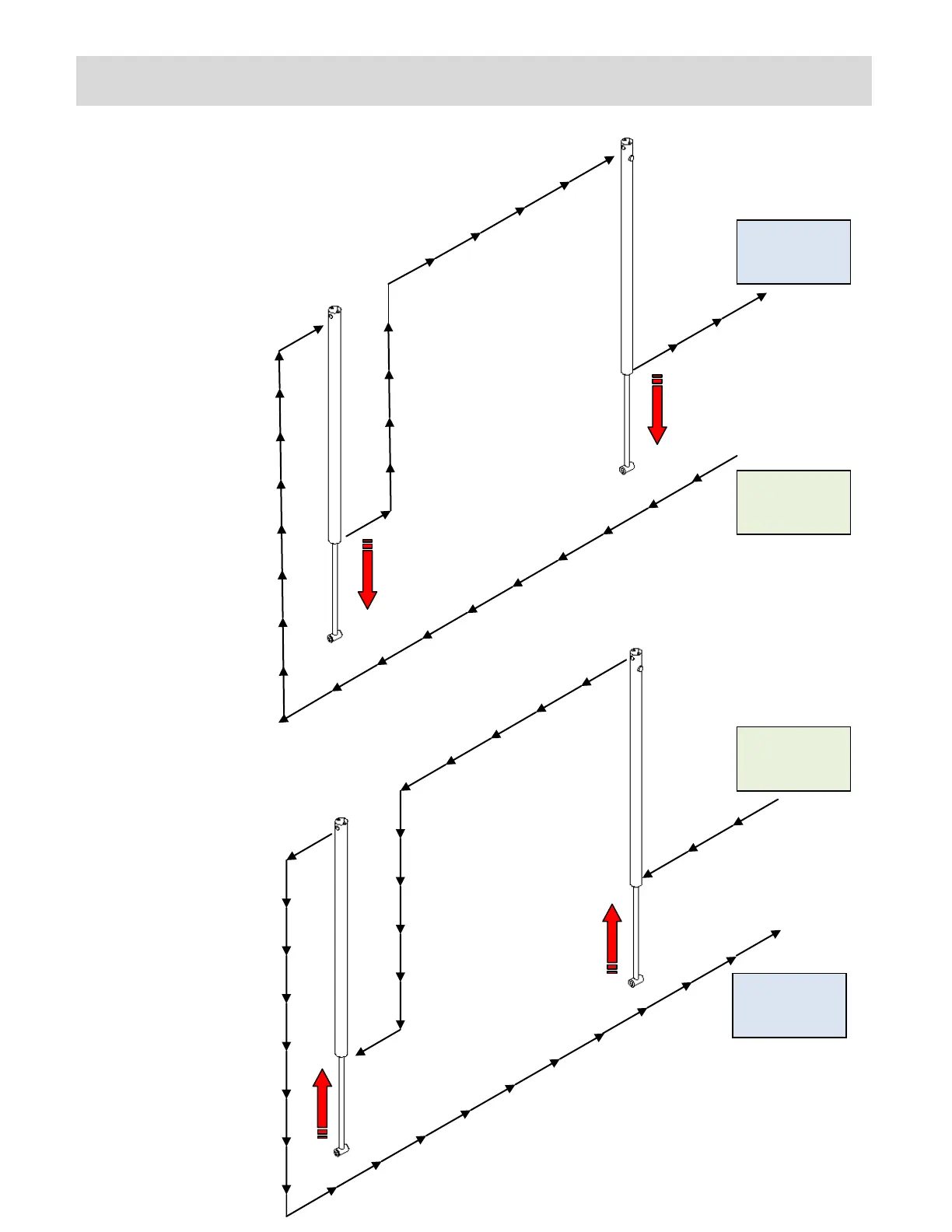

Series Hydraulic Circuit Diagram
Oil Flow Out
From Pump
Oil Flow Out
From Pump
Oil Flow in
Back to Tank
Oil Flow in
Back to Tank
Series hydraulic
circuit diagrams
Oil is pumped into one
cylinder, and the oil
displaced from the
other end feeds the
second cylinder. When
platform is at floor
level, the oil bypasses
to the tank and the
platform always self
levels to the floor.
Note: Left side cylinder
is larger than right side
cylinder.
How the Series Hydraulics works
8
