NOTE -- For valve performance see page 10.
Adjustment type (G, H)
Adjustable spring type (2, 3, 4).
It’sflange mounted on parallelbody on the oppositeside of working ports,the function to limitthe pressure, at lowervalue thanmain
relief valve (min. gap 20 bar -- 290 psi) on downstream sections.
It’s in parallel with flow through line and it works only with single operation.
It needs a dedicated body with extra machining: for production requirements, the block (2) is flanged (1) before the final honing of
spool hole, while the valve (3) is mounted during final assembling phase.
For information contact Customer Service.

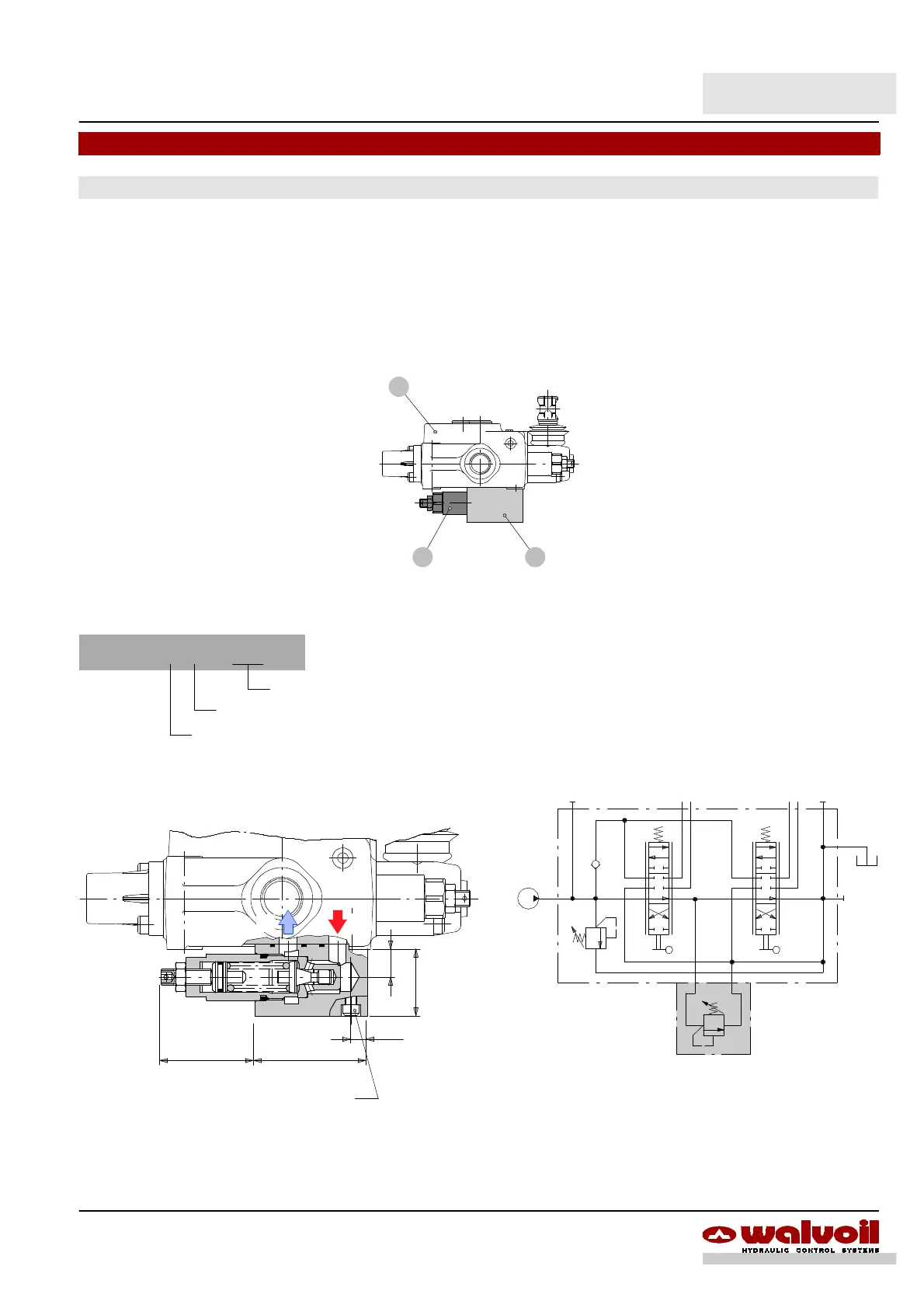

VSC relief valve
Service valves
VSC ( J G 3 -- 100 )
P
A1 B1 A2 B2
T
Ex.: SD5/2--P(JG3--120)/18L/VSC(JG3--100)/18L/AET
1
23
T
LC
Standard setting in bar (for value see page 43)
54.5
7.5
max. 51.5
32
13.5
2.03
2.15
0.30
1.26
0.53
Allen wrench 4
6.6 Nm / 4.9 lbft
120
1750
100
1450
SD5
45DAT003A
\
