5.0 INSTALLATION AND FIXING
VL
2
VAL.130.--.M.EN Issue: A1
09.16
26

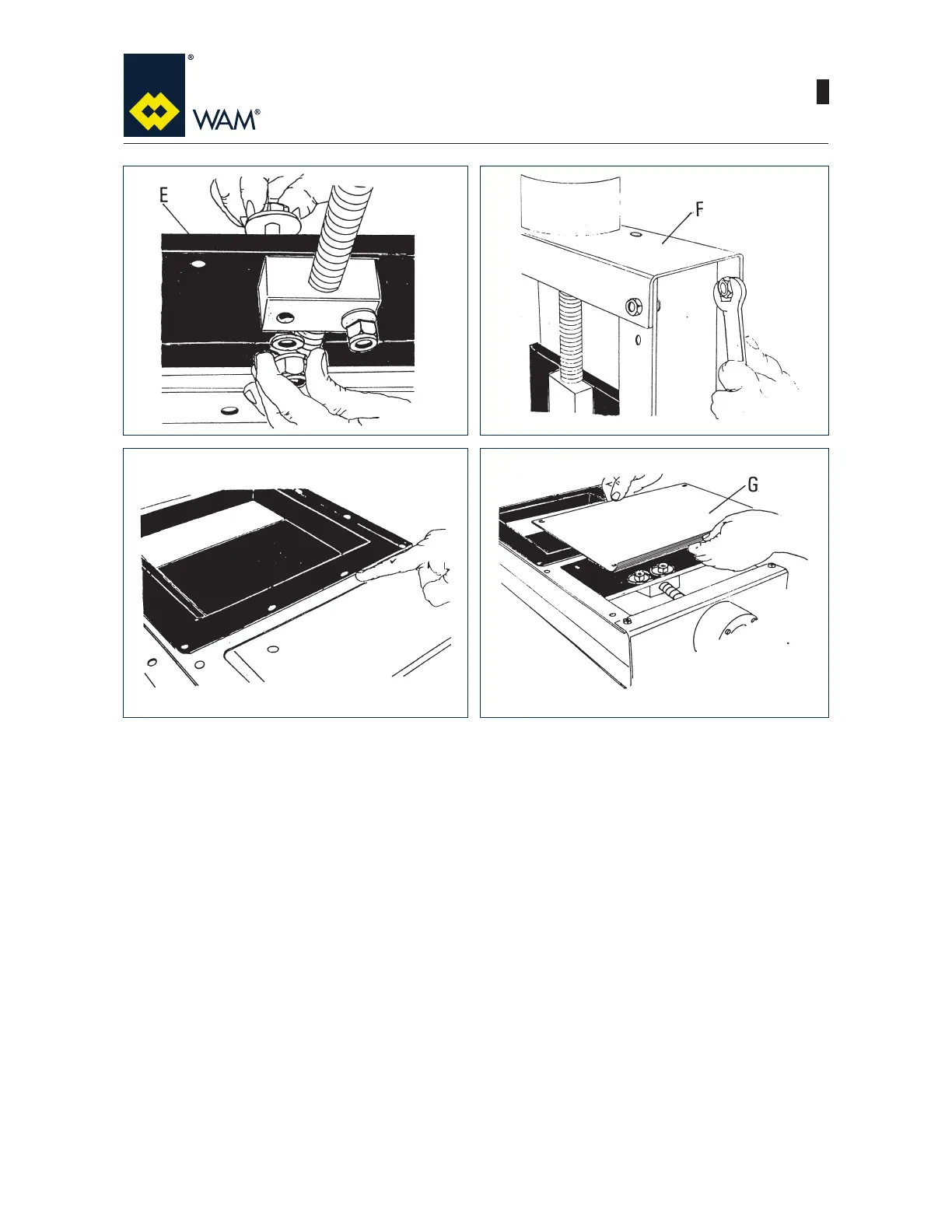

5) lnsert the M12 bolts and the larger washers on the upper side of the blade (E). Position the smaller washers
and the self-locking nuts. Do not tighten completely.
6) Tighten 4 connecting nuts between the cross bar (F) and the body. Check if the valve operation is correct
by turning the hand wheel.
7) For valve installation use bolts which are short enough not to interfere with the blade.
8):KHQDVVHPEO\LVFRPSOHWHG¿WWKHWRSDQGERWWRPJXDUGG) ensuring they perfectly adhere to the frame.
Check the positioning of the self-adhesive gasket.
