3.0 TECHNICAL INFORMATION
2
EXT.SBB-HFF.--.M.A.0219.EN Issue: A
02.19
16
SBB-HFF
MODEL M:
FRAME WITH MONORAIL
- SBB._.125.M
The special feature of this equipment lies in the fact that it does not require the use of a fork lift truck for ex-
ternal loading of FIBCs, as it is designed for use with its own hoist (not supplied) which makes it possible to
operate independently during the various phases.
The equipment comprises:
- an unloading hopper with seal (made of food- grade material for hopper in stainless steel).
- a supporting frame made of suitably sized tubular elements thick enough to ensure the required sturdiness
and solidity.
- a monorail for the hoist (hoist excluded, max height recomended: 600 mm) with frame in Stainless Steel 304
, monorail for the hoist in Carbon Steel galvanized.
- cross with pegs for hooking the FIBC harness, lifting hooks and tubular elements for using a lift truck if nec-
essary for handling FIBCs. (for frame in Stainless Steel 304, the lifting cross is in Carbon Steel galvanized
painted in RAL 1004)

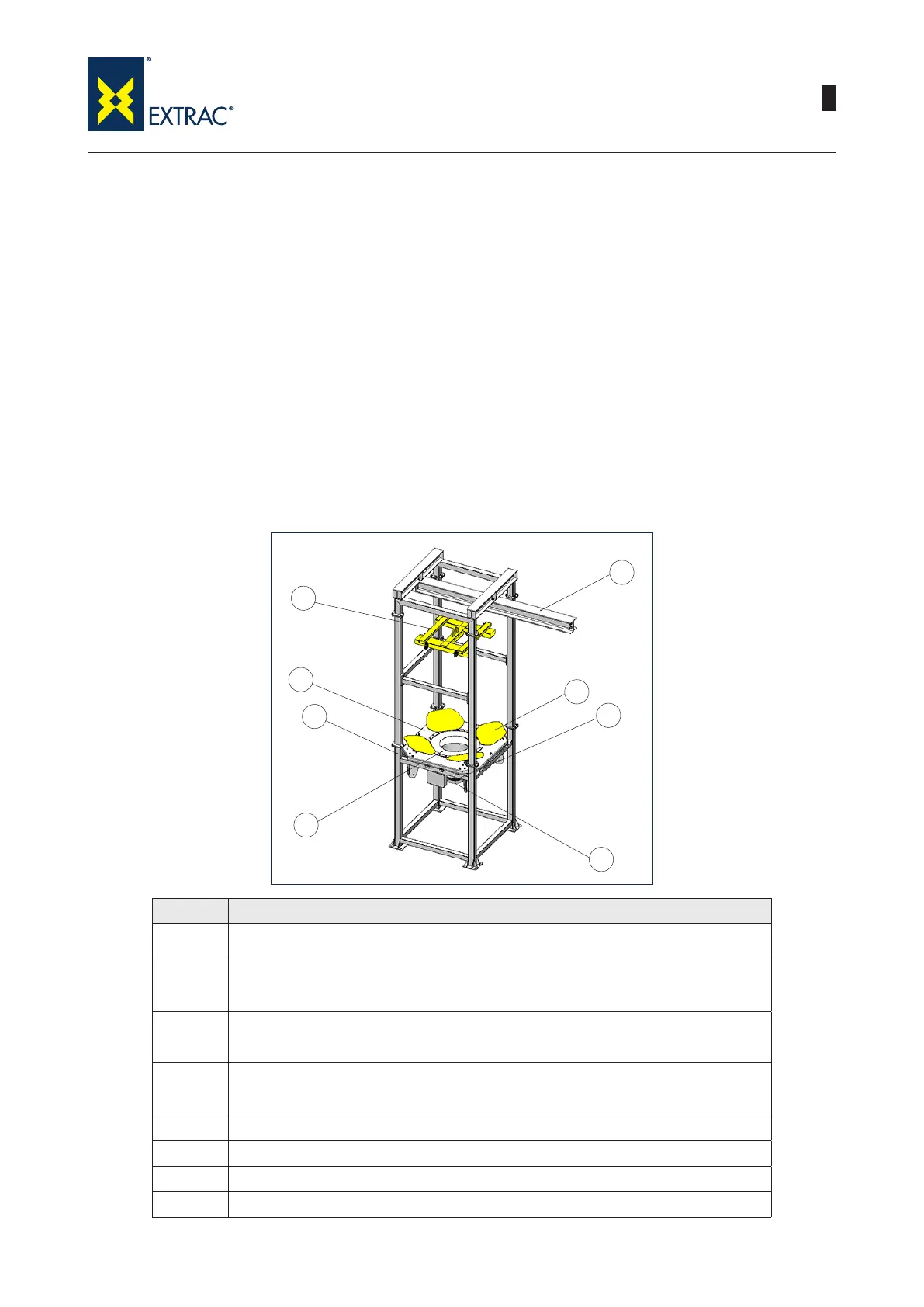

ITEM DESCRIPTION
1
Lifting cross
painted in RAL 1004
2
Vibrating Hopper
in Mild Steel painted RAL 7001
in Stainless Steel 304 glass blasted
3
Frame support
in Mild Steel painted RAL 7001
in Stainless Steel 304 glass blasted
4
Hopper Seal
Hopper in Mild Steel, Seal Black , counterange galvanized
Hopper in Stainless Steel 304, Seal White, counterange Stainless Steel 304
5 Access Door with microswitch predisposition
6 Outlet cone 273 mm
7 Monorail
8 Petals Pneumatic Kit
1
4
2
3
5
6
7
8
