5.0 INSTALLATION AND FIXING
2
EXT.SBB-HFF.--.M.A.0219.EN Issue: A
02.19
31
SBB-HFF

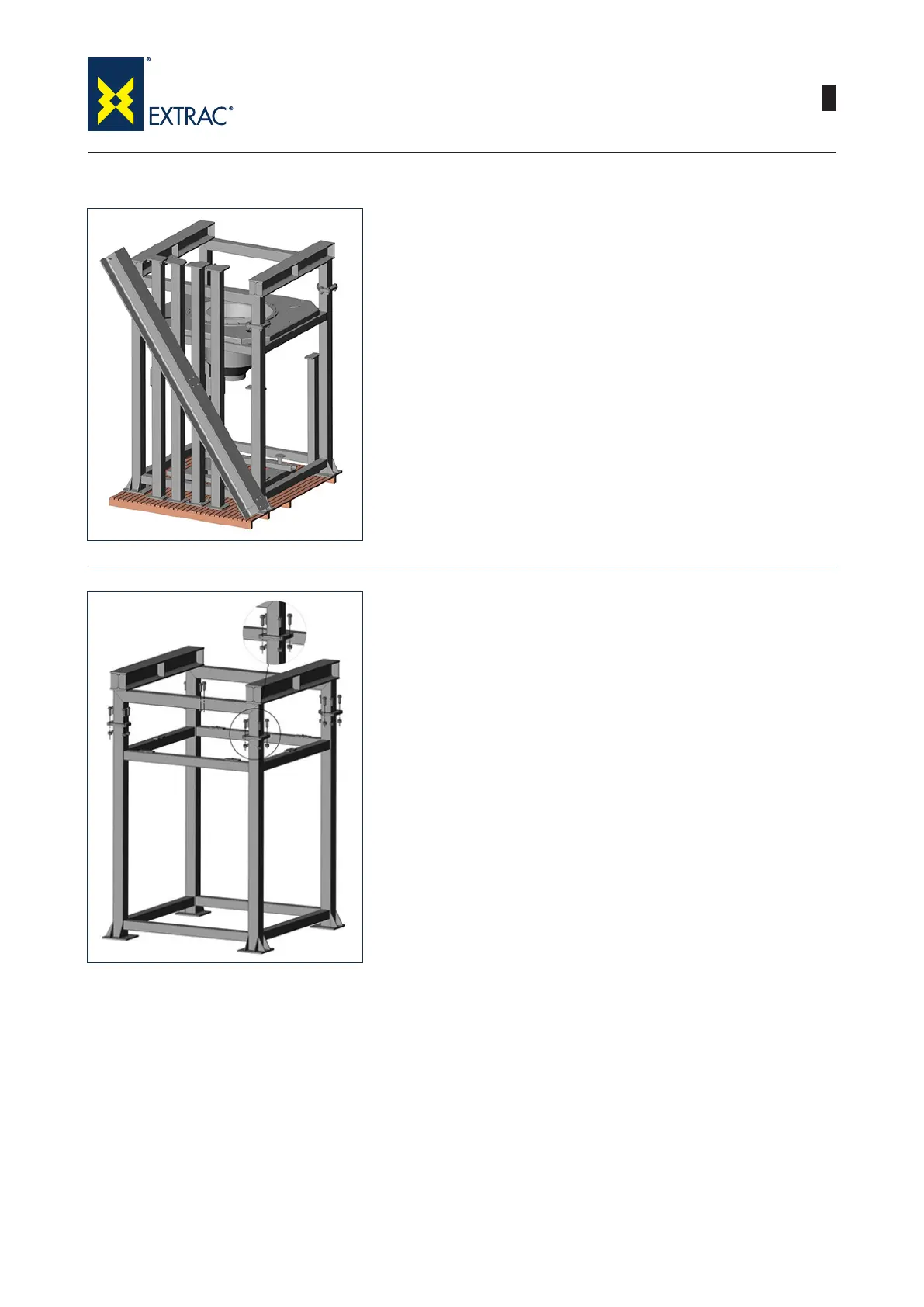

1) The MODEL M BIG-BAG unloader is supplied partially
dismantled to optimize transport. About two hours are
required to complete assembly at the site; after un-
packing and placing all the objects on the oor, pro-
ceed as follows:
2) Slacken the screws connecting the hoist frame 1 to
hopper frame 2.
Use a torque wrench to ensure the following tightening
torques:
M16 screws: 225 Nm
M18 screws: 439 Nm
INSTALLATION - ASSEMBLY OF MODEL M
