5.0 INSTALLATION AND FIXING
2
EXT.SBB-HFF.--.M.A.0219.EN Issue: A
02.19
33
SBB-HFF

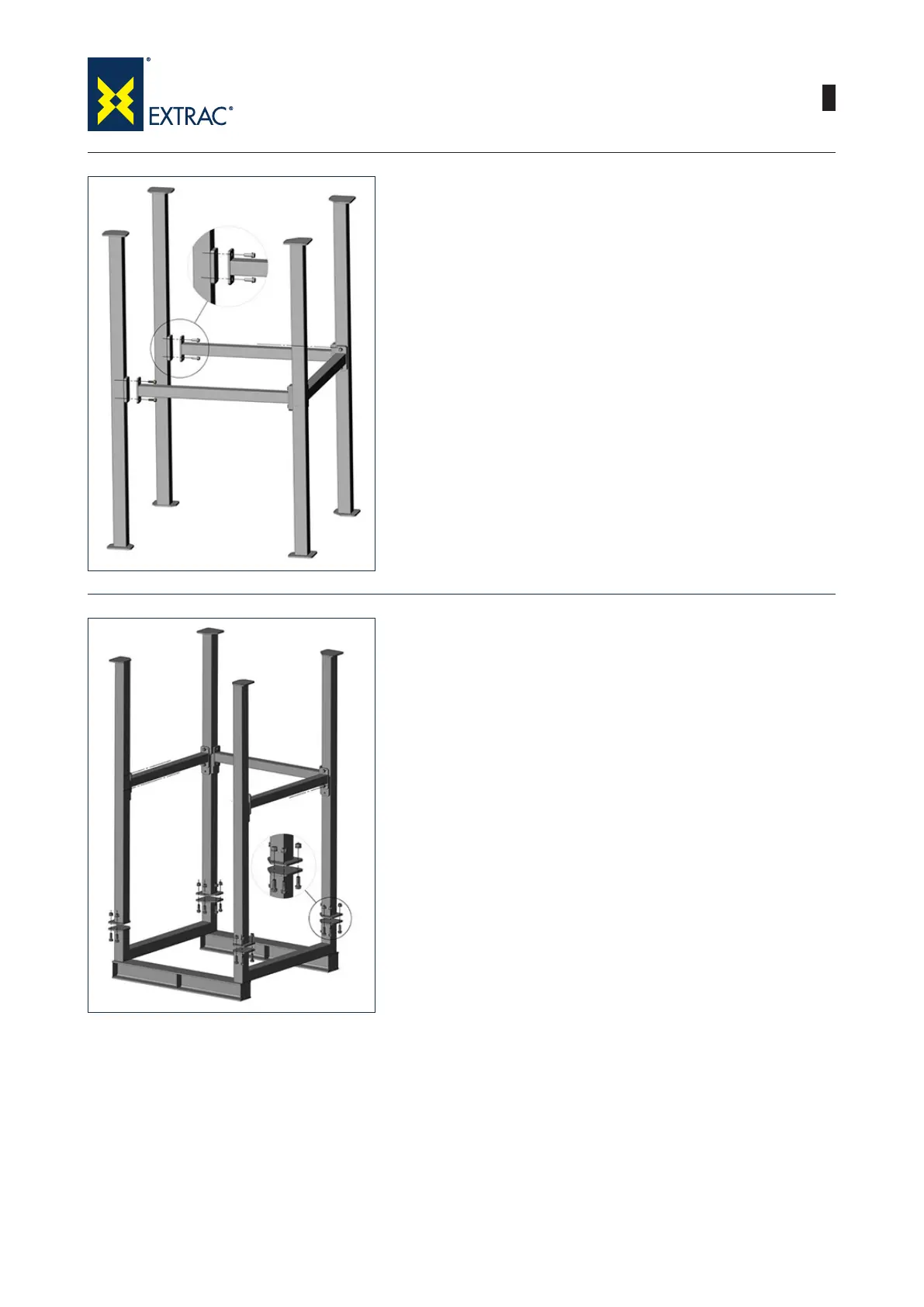

7) Using a crane or similar system, lift the pre-assembly
and x the third strut taking care to avoid tightening the
screws excessively. The structure will now be stable.
Complete the chassis xing the last of the struts as
shown in the Figure; again take care to avoid tightening
the screws excessively.
Use a torque wrench to ensure the following tightening
torques:
M16 screws: 225 Nm
M18 screws: 439 Nm
8) Lift the chassis carefully using a crane or a forklift truck
and place it on top of the hoist frame as shown in the
Figure.
Fix the hoist frame to the chassis by means of the 16
M16 bolts and tighten these.
Use a torque wrench to ensure the following tightening
torques:
M16 screws: 225 Nm
M18 screws: 439 Nm
