5.0 INSTALLATION AND FIXING
2
EXT.SBB-HFF.--.M.A.0219.EN Issue: A
02.19
41
SBB-HFF
N° DESCRIPTION QTY.
1 T.C.E.I. SCREW SS 304 UNI 5931 DIAM. M5x40 2
2 BEVELLED WASHER SS 304 UNI 6592 Ø5x10 2
3 LIMIT STROKE MOD.XCSPA 591 TELEMECANI TYPE 1
4 HEX NUT SELF-LOCK. LONG SS 304 DIAM.M5 2
5 BEVELLED WASHER SS 304 UNI 6592 Ø6x18 2

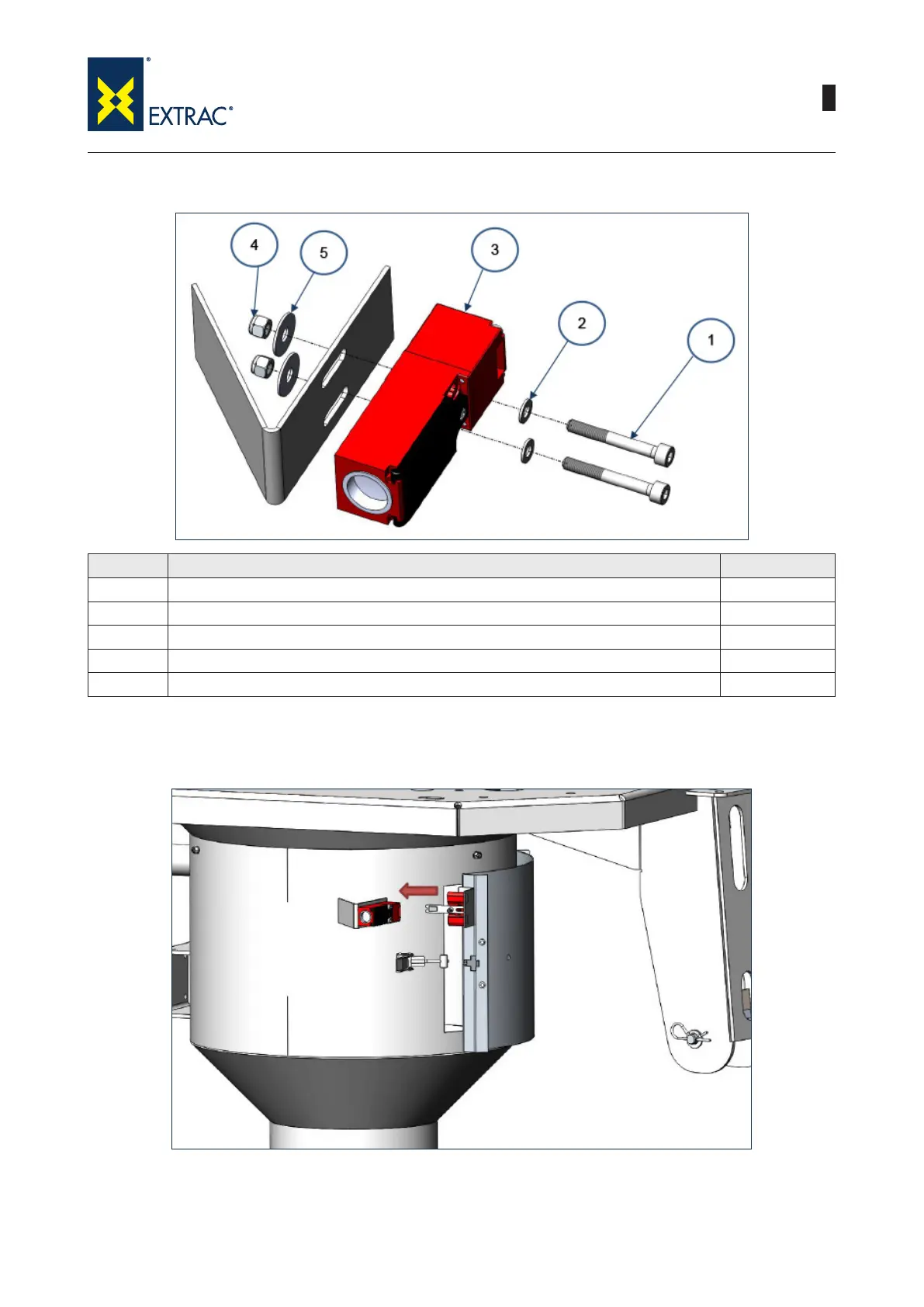

3) Assembling the limit switch
Full view
