WAMGROUP SBB-HFF - Page 44

5.0 INSTALLATION AND FIXING
2
EXT.SBB-HFF.--.M.A.0219.EN Issue: A
02.19
40
SBB-HFF

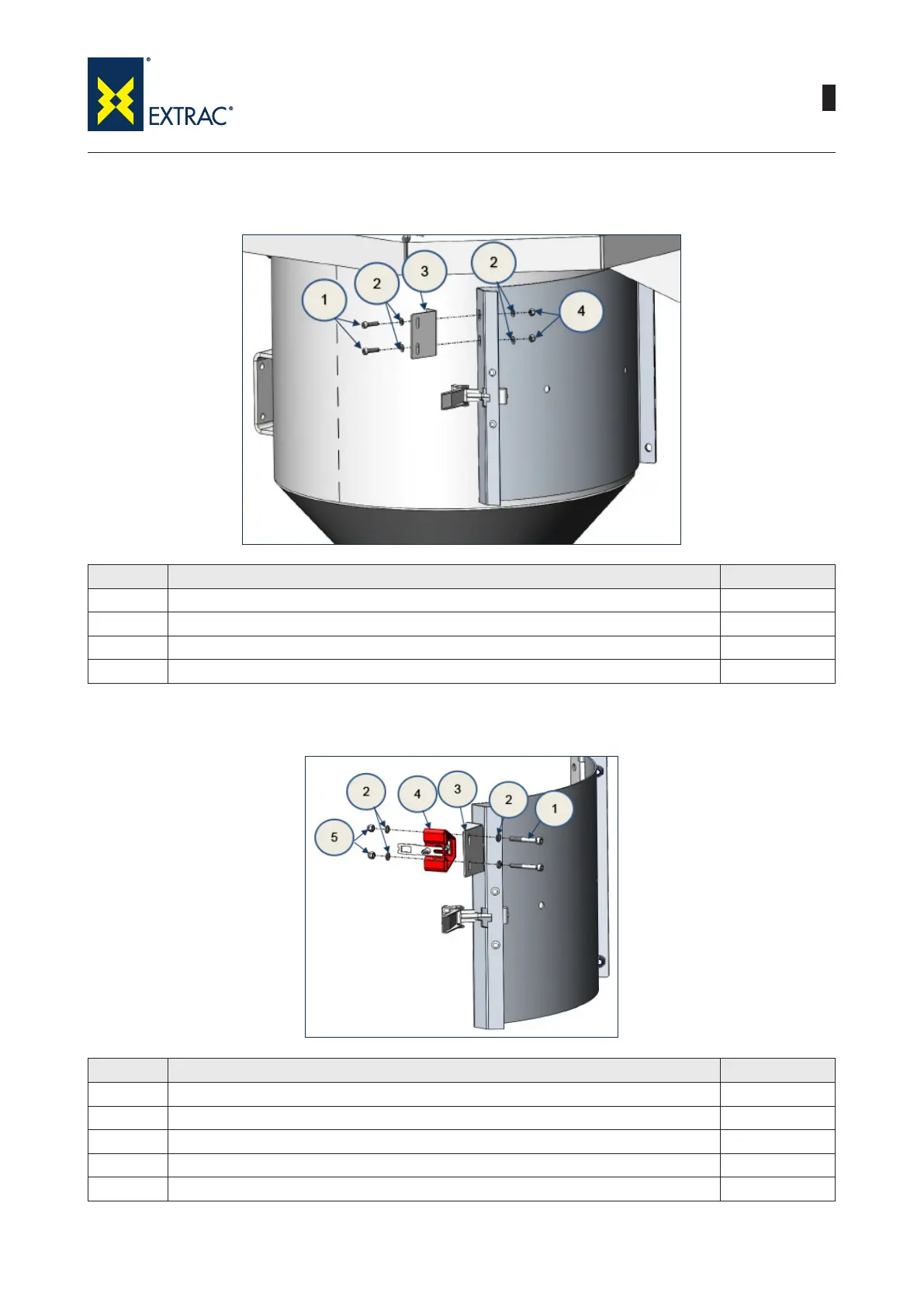

MICRO DOOR KIT SBB ASSEMBLY INSTRUCTION
1) Assembling the limit switch tab holding bracket
N° DESCRIPTION QTY.
1 T.C.E.I. SCREW SS 304 UNI 5931 DIAM. M5x20 2
2 BEVELLED WASHER SS 304 UNI 6592 Ø5x10 4
3 HATCH LIMIT SWITCH TAB HOLDING BRACKET 1
4 HEX NUT SELF-LOCK. LONG SS 304 DIAM.M5 2
N° DESCRIPTION QTY.
1 T.C.E.I. SCREW SS 304 UNI 5931 DIAM. M5x40 2
2 BEVELLED WASHER SS 304 UNI 6592 Ø5x10 4
3 HATCH LIMIT SWITCH TAB HOLDING BRACKET 1
4 ADJUSTABLE TAB XCS-Z13 X SWITCH DI. 1
5 HEX NUT SELF-LOCK. LONG SS 304 DIAM.M5 2
2) Assembling the limit switch tab on hatch bracket
