5.0 INSTALLATION AND FIXING
2
EXT.SBB-HFF.--.M.A.0219.EN Issue: A
02.19
39
SBB-HFF

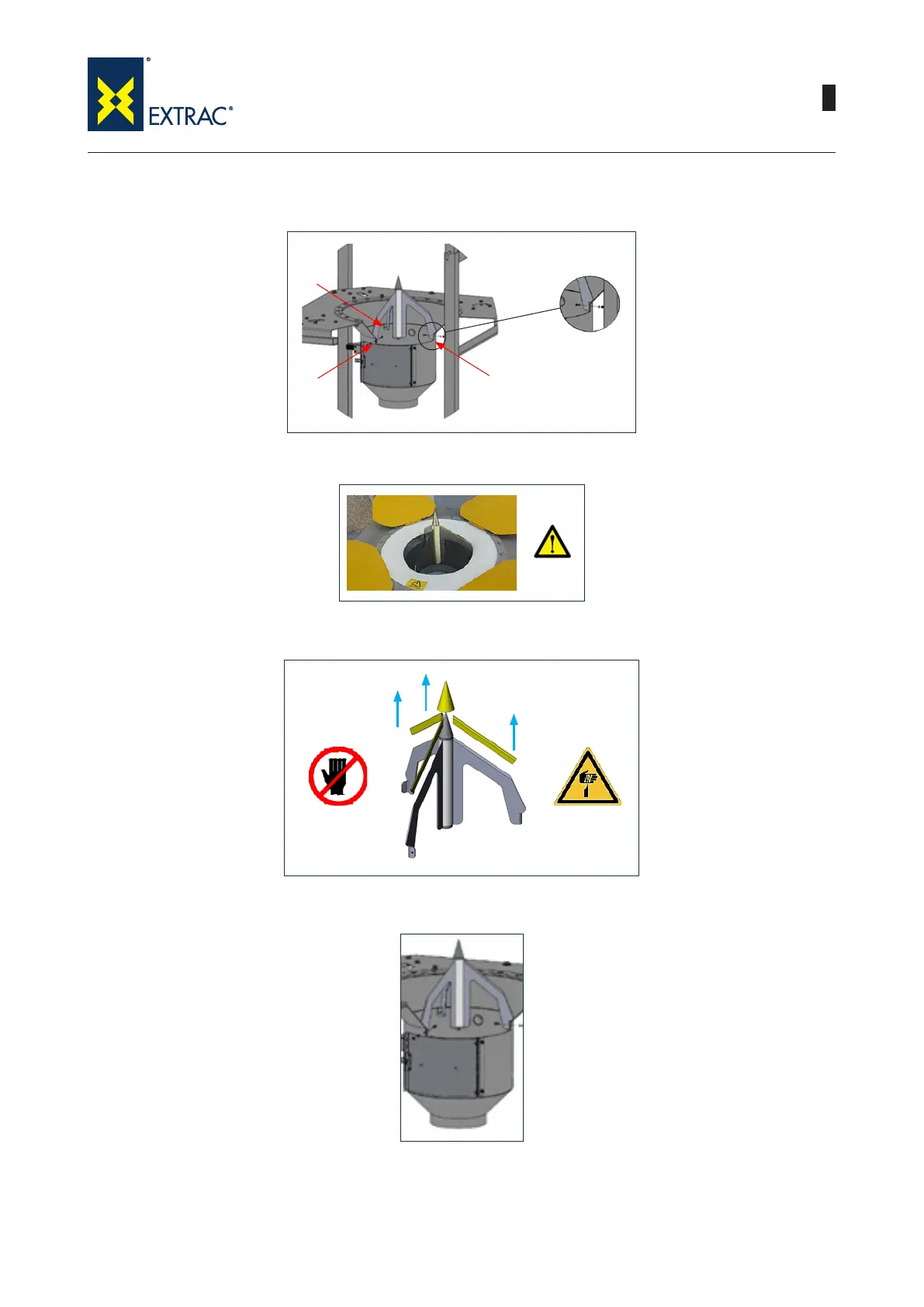

4) Failure to secure it by means of all nuts and bolts provided, lowers the performance and the voids the warranty.
Ensure to follow the tightening torque of 150 Nm for M6 bolts.
1
2
3
Fig. 1
5) During assembly pay attention not to damage the hopper seal.
6) After having made sure the cutting kit has been properly assembled, remove with care the blades tip shields.
7) After assembly, ensure the kit works perpendicular to the outlet bore axis.
