Wandel & Goltermann OLP-10 User Manual

Service Manual OLS-81-10

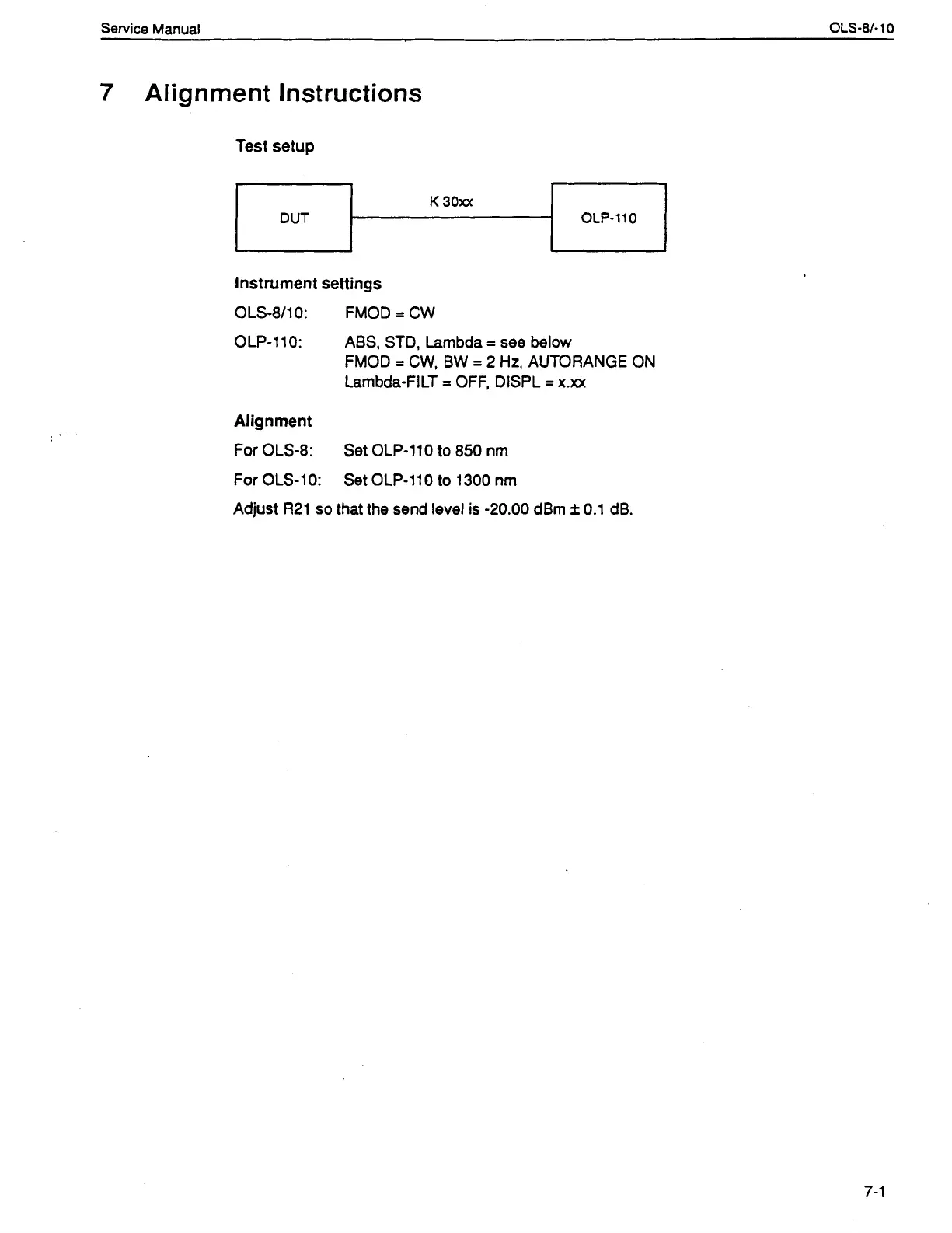

7 Alignment Instructions
Test setup
Instrument settings
OLS-8/10: FMOD
= CW
OLP-110:
ABS, STD, Lambda
= see below
FMOD
= CW, BW = 2 HZ, AUTORANGE ON
Lambda-FILT
= OFF. DlSPL = x.xx
Alignment
For OLS-8: Set OLP-110 to 850 nm
For OLS-10:
Set OLP-110 to 1300 nm
Adjust R21 so that the send level is -20.00 dBm
f 0.1 dB.
