Service
Manual
OLP-101-15
Mechanical DesignlAssernbly Instructions
instrument Codes
You will find the series number on the front panel.
Assembly Instructions
Disassembly
1 Remove black rubber ring
<C>.
2
Remove the upper section
<A>
of the shockproof casing.
3
Remove battery compartment cover.
4 Remove the OLP from the lower section
<B>
of the shockproof casing.
5
Remove the
4
screws at the rear of the instrument
(2
in the battery compartment).
6
Remove the upper section of the casing.

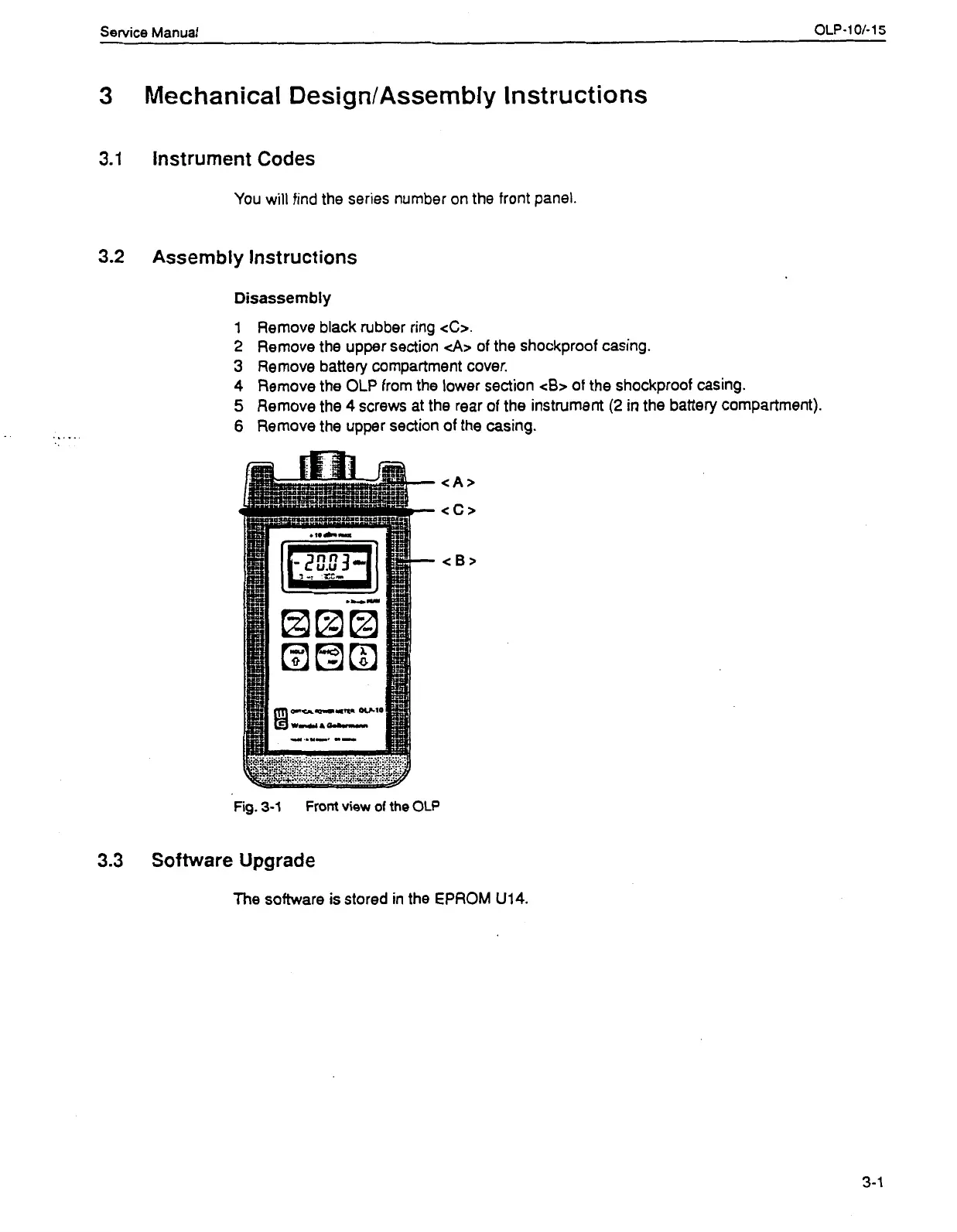

Fig.
3-1
Front
view
of
the
OLP
Software Upgrade
The software is stored in the EPROM U14.
