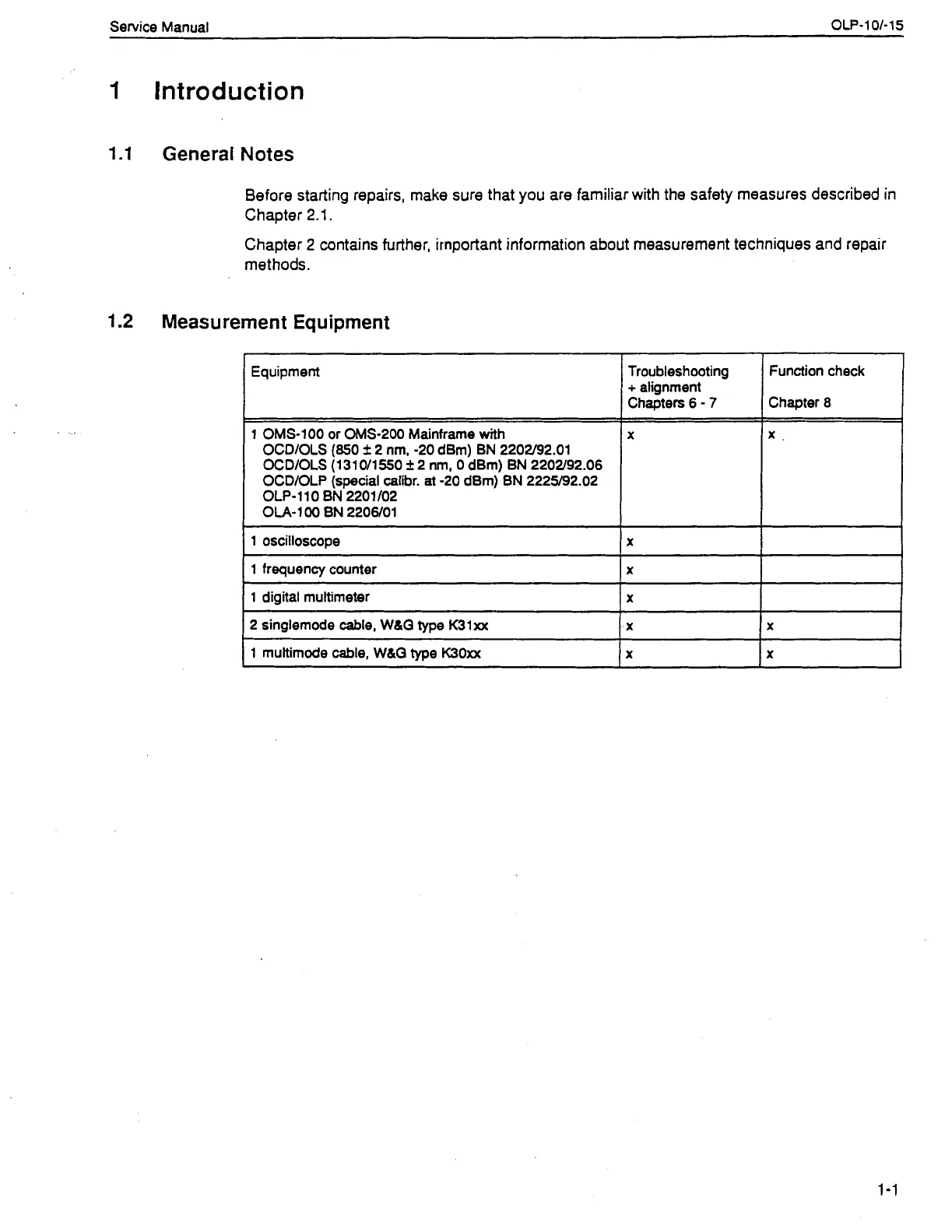

I Introduction
1.1 General Notes
Before starting repairs, make sure that you are familiar with the safety measures described in
Chapter
2.1.
Chapter 2 contains further, irnportant information about measurement techniques and repair
methods.
1.2 Measurement Equipment
. -- -
Equipment
1 OMS-100 or OMS-200 Mainframe
with
OCDlOLS (850 f 2 nm, -20 dBm) BN 2202192.01
OCDIOLS (131 011 550
f 2 nm, 0 dBm) BN 2202192.06
OCDIOLP (special calibr.
at -20 dBm) BN 2225192.02
OLP-110 BN 2201102
OLA-100 BN 2206101
1 oscilloscope
Troubleshooting
+ alignment
Chapters
6 - 7
Function check
Chapter
8
1 2 singlemode cable, W&Q type K3lxx 1.. I x
1 frequency counter
1 digital multimeter
x
x
1 multimode cable, W&Q type K30xx
x x
