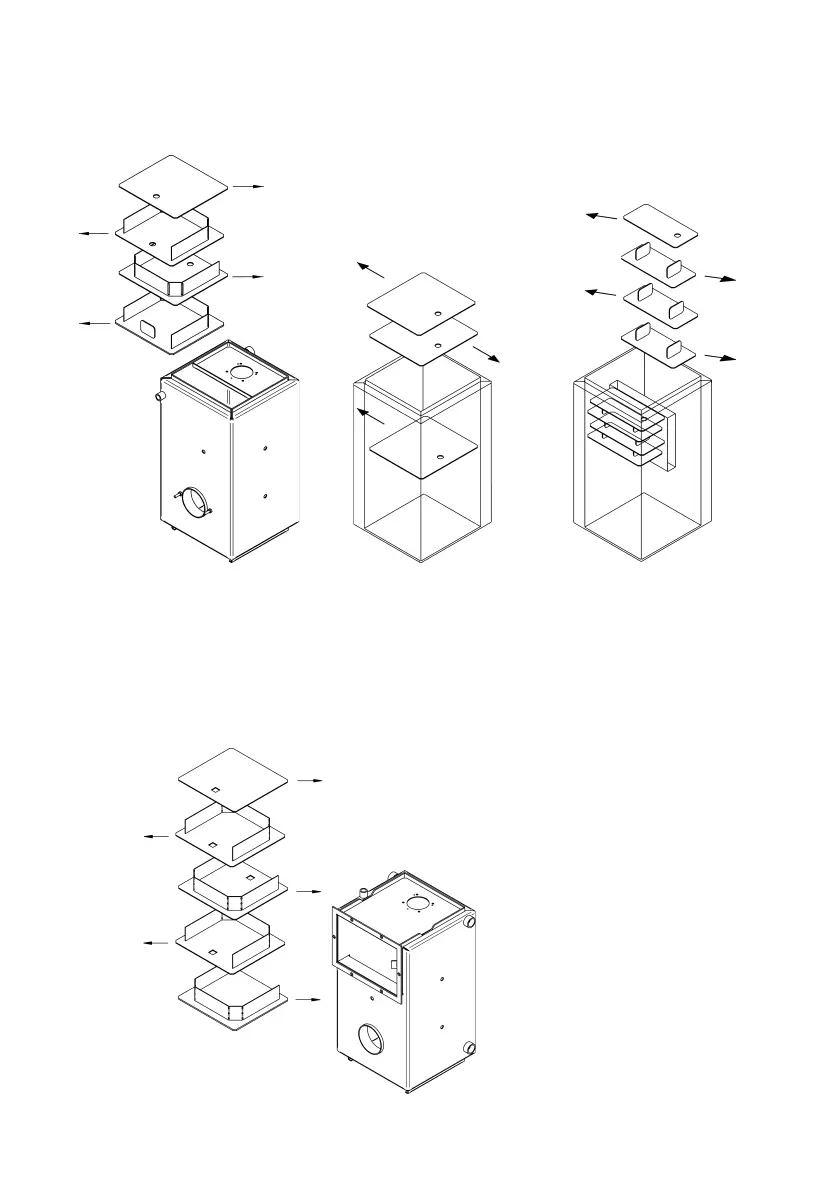

1.8 Baffles
1.8.1 Top Servicing Boilers
50/70
(3 in number)
70/90 & 120/150 (8 in number)
90/120, 150/200, 300, 400 & 500
have a similar arrangement
(12, 12, 12, 16 and 16
baffles respectively)
FRONT FRONT
50/90
(4 in number)
heavy baffle to the bottom
Note: Before firing make sure
the baffles have not been
dislodged in transit and are
correctly positioned. To achieve
maximum efficiency push the
baffles in the direction of the
arrows as shown.
1.8.2 Components 50/90 Front Servicing Boiler
50/90
(5 in number)
heavy baffle to the bottom
Page 5
