Page 59

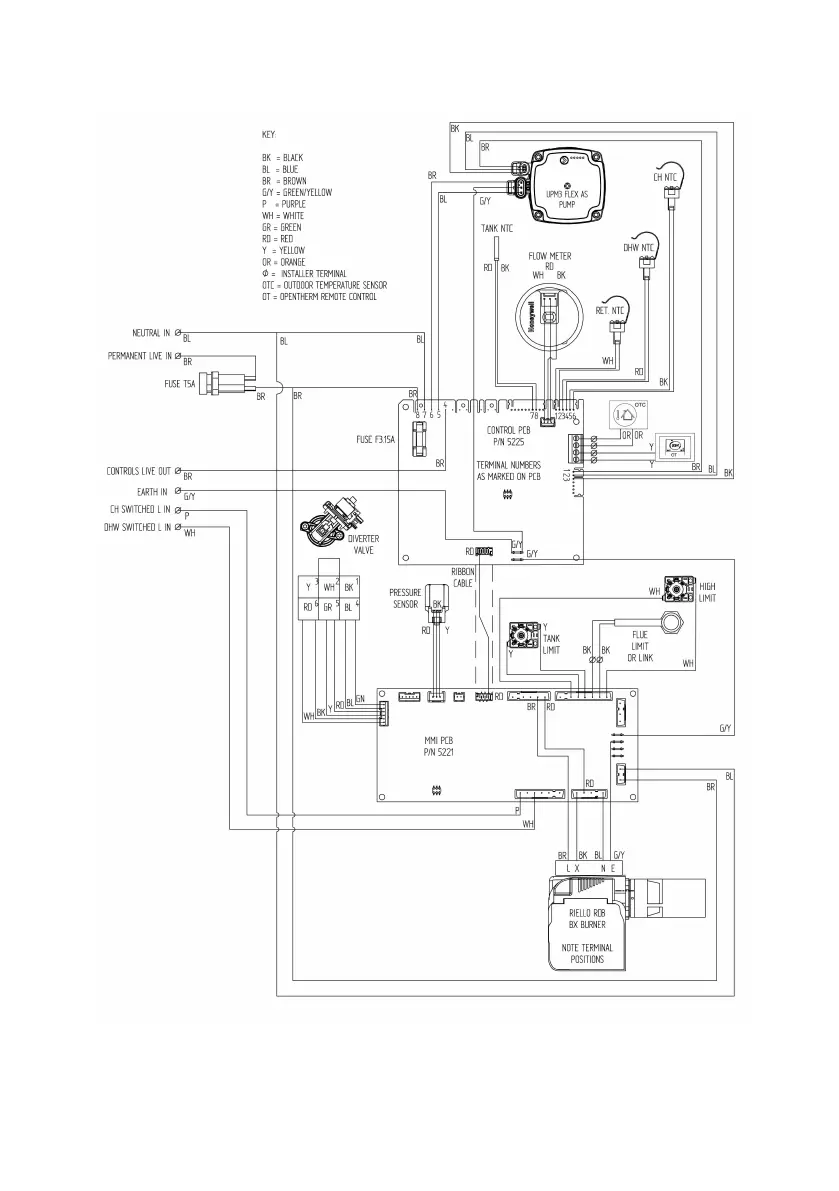

6.3.2 Wiring Diagram & Fuses
The appliance must have a permanent live supply connected to operate.
Perfector 5 Side:Back
CyanMagentaYellowBlackM1M2
