WarmFlow DI110UV - Twin Coil Cylinders

Page 8 of 34
5.4 Twin Coil Cylinders

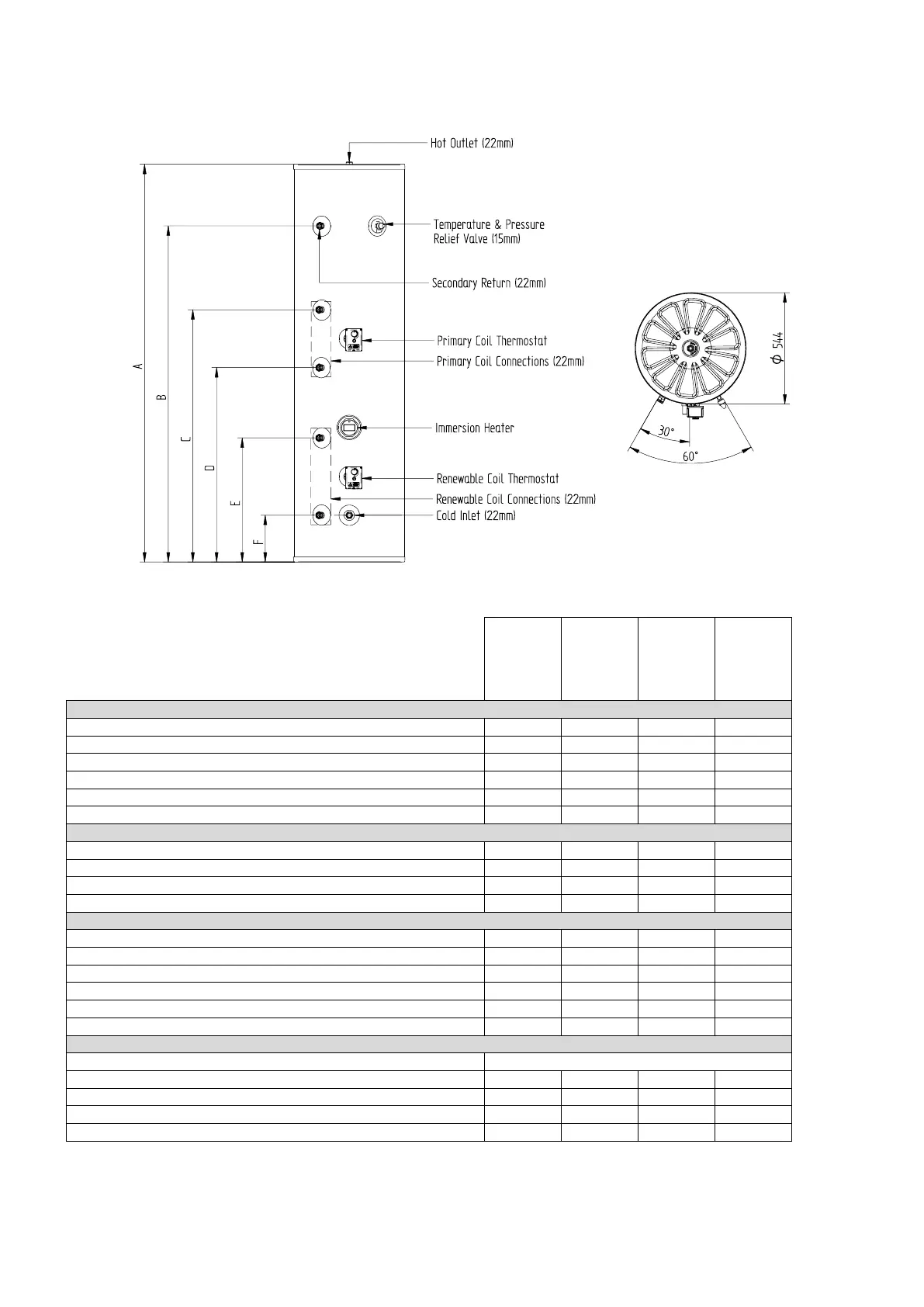

Figure 3: Twin Coil cylinders components & dimensions
TW170UV
TW200UV
TW240UV
TW290UV
DIMENSIONS
(A) Height (mm)
1205
1380
1655
1940
(B) Secondary return connection (mm)
N/A
1080
1355
1640
(C) Primary coil upper connection (mm)
883
988
1088
1231
(D) Primary coil lower connection (mm)
601
705
806
948
(E) Renewable coil upper connection (mm)
511
605
605
605
(F) Cold inlet connection / Renewable coil lower connection (mm)
228
228
228
228
OPERATING DATA
Cold water capacity (litres)
165
194
233
281
Weight when full (kg)
210
240
290
350
Standing heat loss (kWh/24h)
1.66
1.97
2.12
2.26
V40 Hot water volume (litres)
245
253
341
434
COIL PERFORMANCE (EN12897)
Primary coil rating @ 15L/min (kW)
14.27
14.35
14.28
14.64
Primary coil pressure drop @ 15L/min (mbar)
63
63
63
63
Heat up time by primary coil @ 15L/min (mins)
19
22
29
35
Renewable coil rating @ 15L/min (kW)
12.33
16.62
16.47
15.82
Renewable coil pressure drop @ 15L/min (mbar)
63
60
60
60
Dedicated renewable volume (litres)
83
97
117
141
FICHE DATA
Supplier Name
Warmflow
Supplier Model Identifier
TW170UV
TW200UV
TW240UV
TW290UV
Energy Efficiency Class
C
C
C
C
Standing Loss (W)
69
82
88
94
Storage Volume (litres)
165
194
233
281
Table 4: Twin Coil cylinder data
