5.2 Direct Cylinders

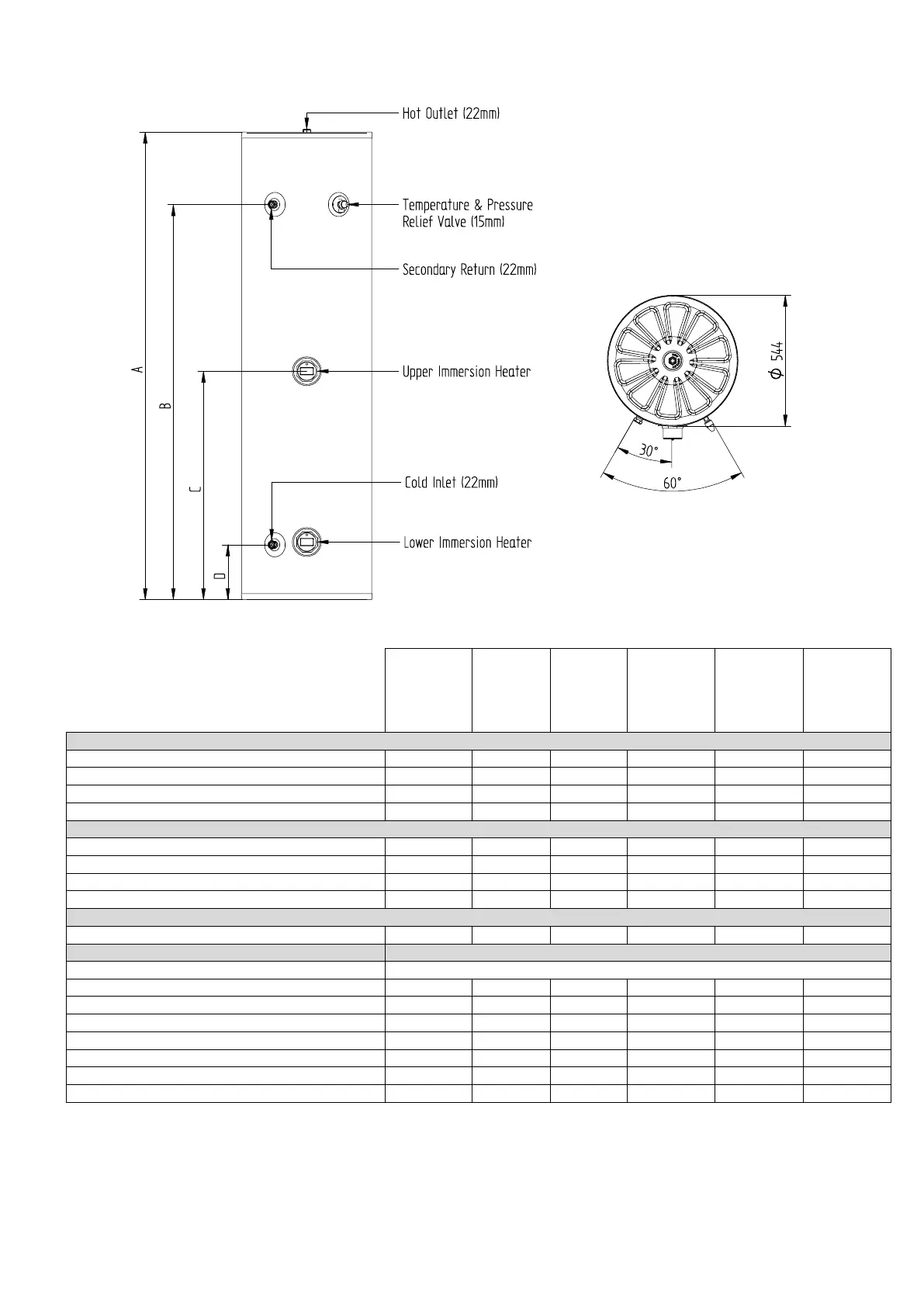

Figure 1: Direct cylinders components & dimensions
DI110UV
DI140UV
DI170UV
DI200UV
DI240UV
DI290UV
DIMENSIONS
(A) Height (mm)
830
1005
1205
1380
1655
1940
(B) Secondary return connection / T&P (mm)
N/A / 530
N/A / 705
N/A / 905
1080 / 1080
1355 / 1355
1640 / 1640
(C) Upper immersion (mm)
393
481
581
668
806
948
(D) Cold inlet connection / Lower immersion (mm)
228 / 239
228 / 239
228 / 239
228 / 239
228 / 239
228 / 239
OPERATING DATA
Rated volume (litres)
107
136
165
194
233
281
Weight when full (kg)
140
180
210
240
290
350
Standing heat loss (kWh/24h)
1.43
1.41
1.68
1.78
2.08
2.15
V40 Hot water volume (litres)
138
181
230
267
345
432
PERFORMANCE
Heat up time by lower immersion only (mins)
121
154
198
237
287
345
FICHE DATA
Supplier Name
Warmflow
Supplier Model Identifier
DI110UV
DI140UV
DI170UV
DI200UV
DI240UV
DI290UV
Declared Load Profile
M
M
L
L
XL
XL
Energy Efficiency Class
C
C
C
C
C
C
Water Heating Energy Efficiency, ηwh (%)
38
38
38
38
38
38
Annual Electrical Consumption, AEC (kWh)
1339
1702
2295
2698
3609
4352
Thermostat Setting (°C)
65
65
65
65
65
65
Sound Power Level (dB)
15
15
15
15
15
15
Table 2: Direct cylinder data
Data listed with SMART Immersion thermostat fitted to lower position.
