5.5 Heat Pump Cylinders

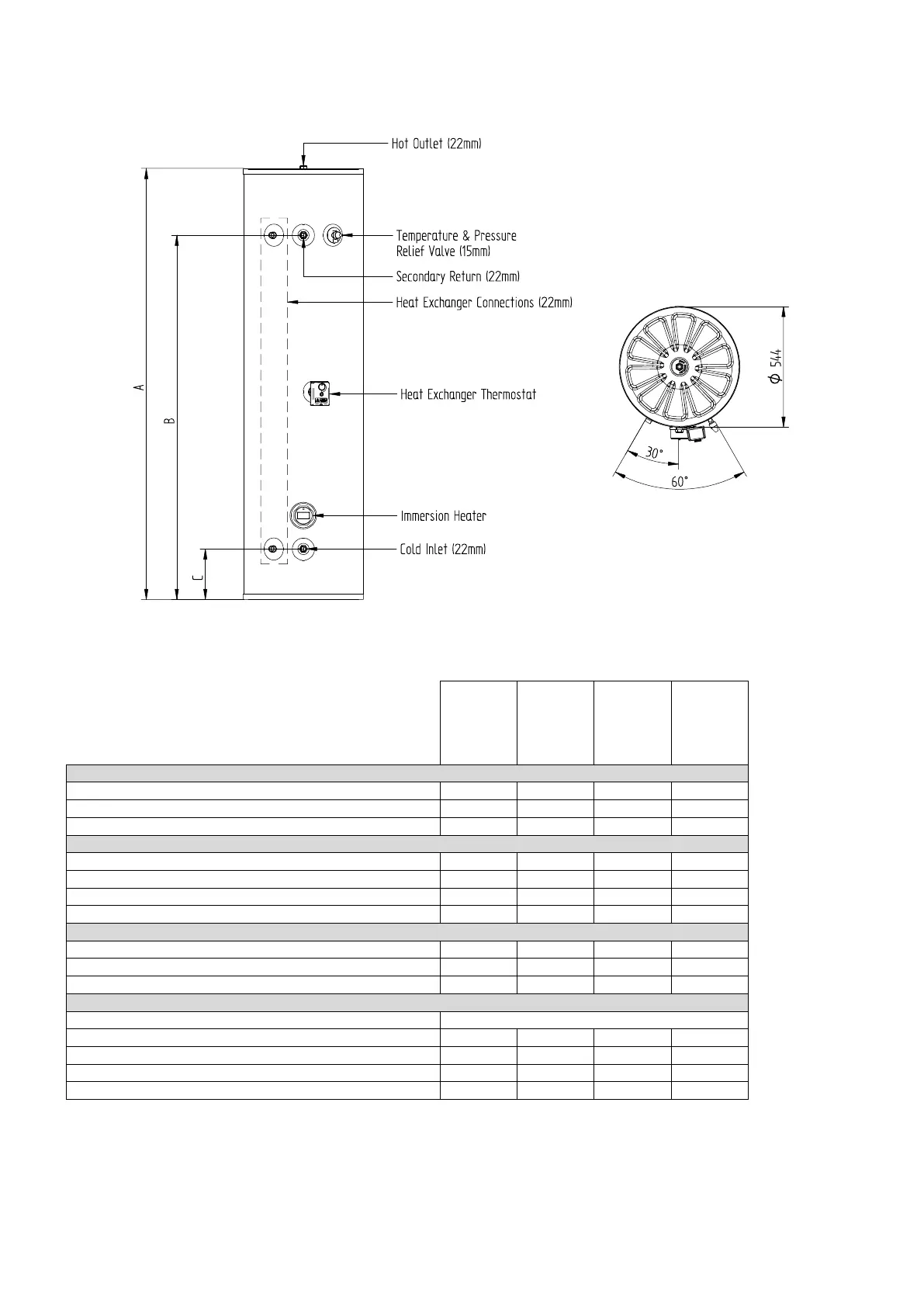

Figure 4: Heat Pump cylinders components & dimensions
HP170UV
HP200UV
HP240UV
HP290UV
DIMENSIONS
(A) Height (mm)
1205
1380
1655
1940
(B) Heat Exchanger / Secondary return connection (mm)
905
1080
1355
1640
(C) Heat Exchanger / Cold Inlet connection (mm)
228
228
228
228
OPERATING DATA
Cold water capacity (litres)
165
194
233
281
Weight when full (kg)
210
240
290
350
Standing heat loss (kWh/24h)
1.68
1.78
2.08
2.15
V40 Hot water volume (litres)
229
259
312
401
COIL PERFORMANCE (EN12897)
Primary coil rating @ 15L/min (kW)
17.08
25.85
29.38
21.92
Primary coil pressure drop @ 15L/min (mbar)
35
30
30
30
Heat up time by primary coil (mins)
25
21
22
34
FICHE DATA
Supplier Name
Warmflow
Supplier Model Identifier
HP170UV
HP200UV
HP240UV
HP290UV
Energy Efficiency Class
C
C
C
C
Standing Loss (W)
70
74
87
90
Storage Volume (litres)
165
194
233
281
Table 5: Heat Pump cylinder data
