Page 73
11 BURNERS

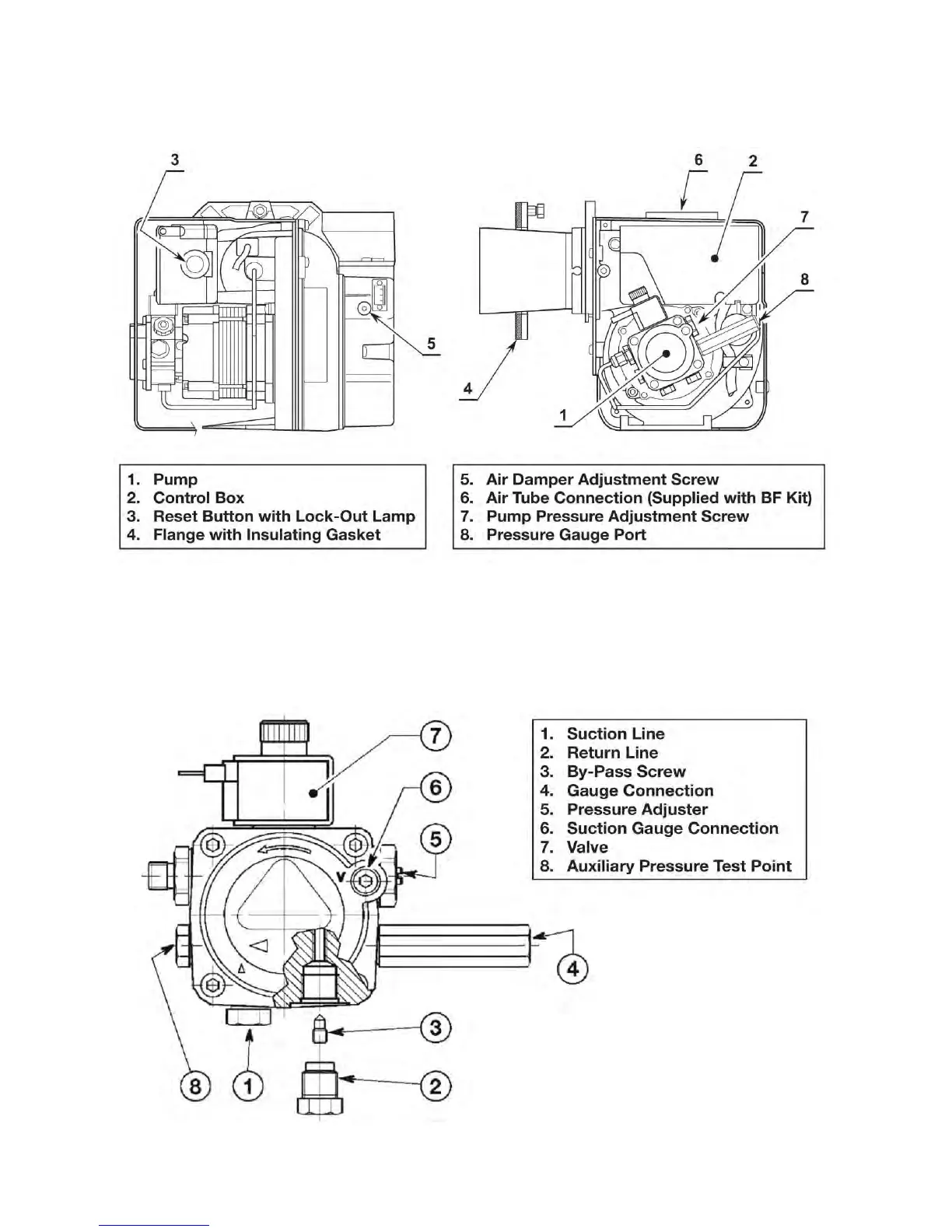

11.1 RDB Burner
11.2 Oil Pump
The burner is supplied for use with a one pipe system. For use on a two pipe system, it is
necessary to remove the return port plug and fit a small by-pass plug as shown.
