INSTALLATION INSTRUCTIONS

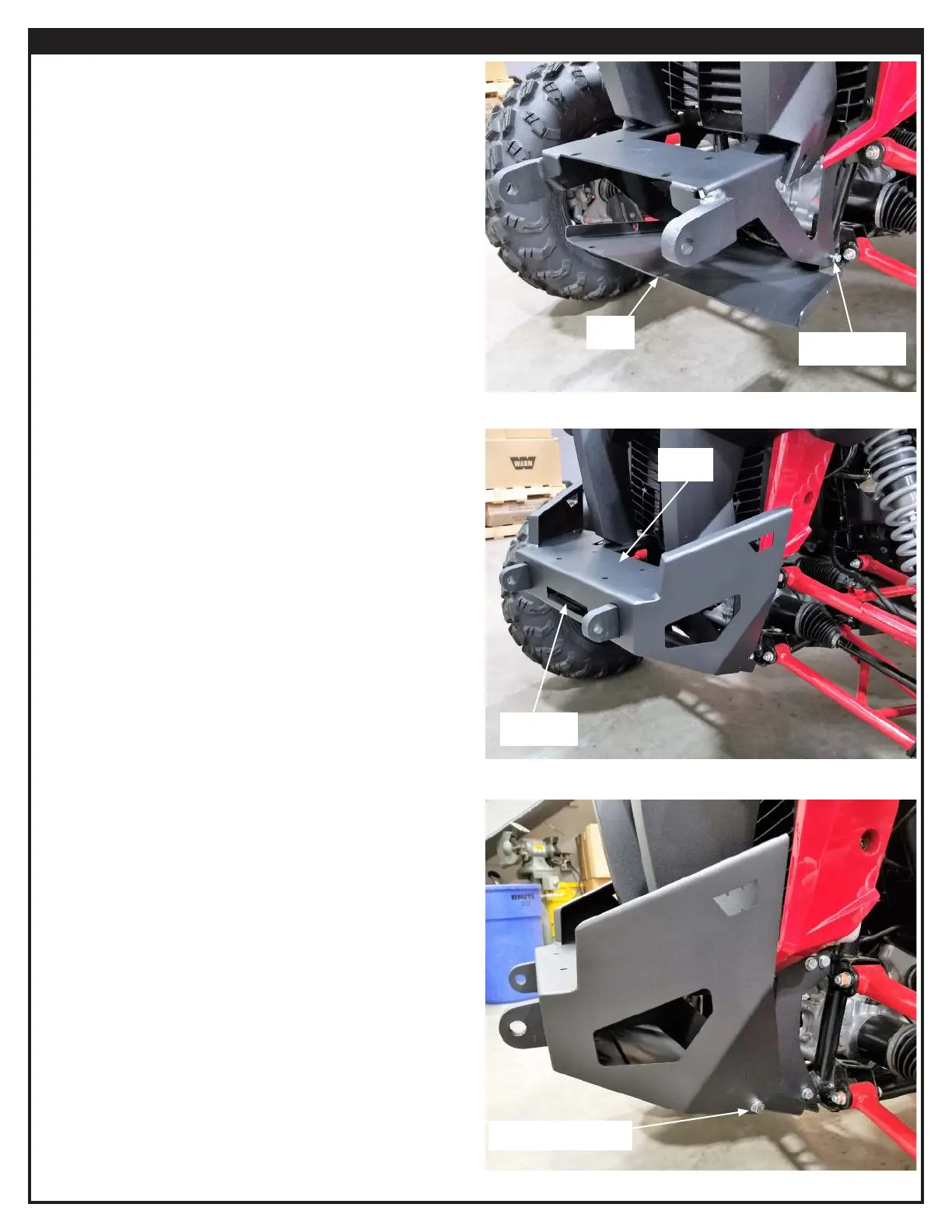

8. Slide the skid plate (A4) into place. NOTE: The tabs on the
skid plate will t in between the bumper mount and the
vehicle frame.
9. Install one M8 bolt (B1) and washer (B2) to lower mounting
location.
10. If you have a light bar, install light bar to light bracket (A5)
now.
11. Install light bracket to bumper mount using two supplied
M8 bolts (B1), four washers (B2) and two nuts (B3). Refer to
exploded view on page 3.
12. While lifting up on the skid plate, slide the bumper shell
(A1) over the upper mounting bracket. NOTE: The skid
plate should t on the inside edge of the bumper shell.
13. Install one M8 bolt (B1) and one at washer (B2) through
the lower bumper end cap mounting hole. Do not continue
all the way through the skid plate yet.
14. Insert one plastic washer (B4) over bolt. NOTE: The plastic
washer sits in between the end cap and the skid plate. Trim
any excess o washer if necessary.
15. Continue threading bolt through skid plate and fasten with
lock nut (B3). Refer to exploded view on page 3.
16. Repeat for other side.
B1 and B2
A4
A1
Figure 5
Figure 6
Install light
bracket here
Figure 7
B1, B2, B4, B3
