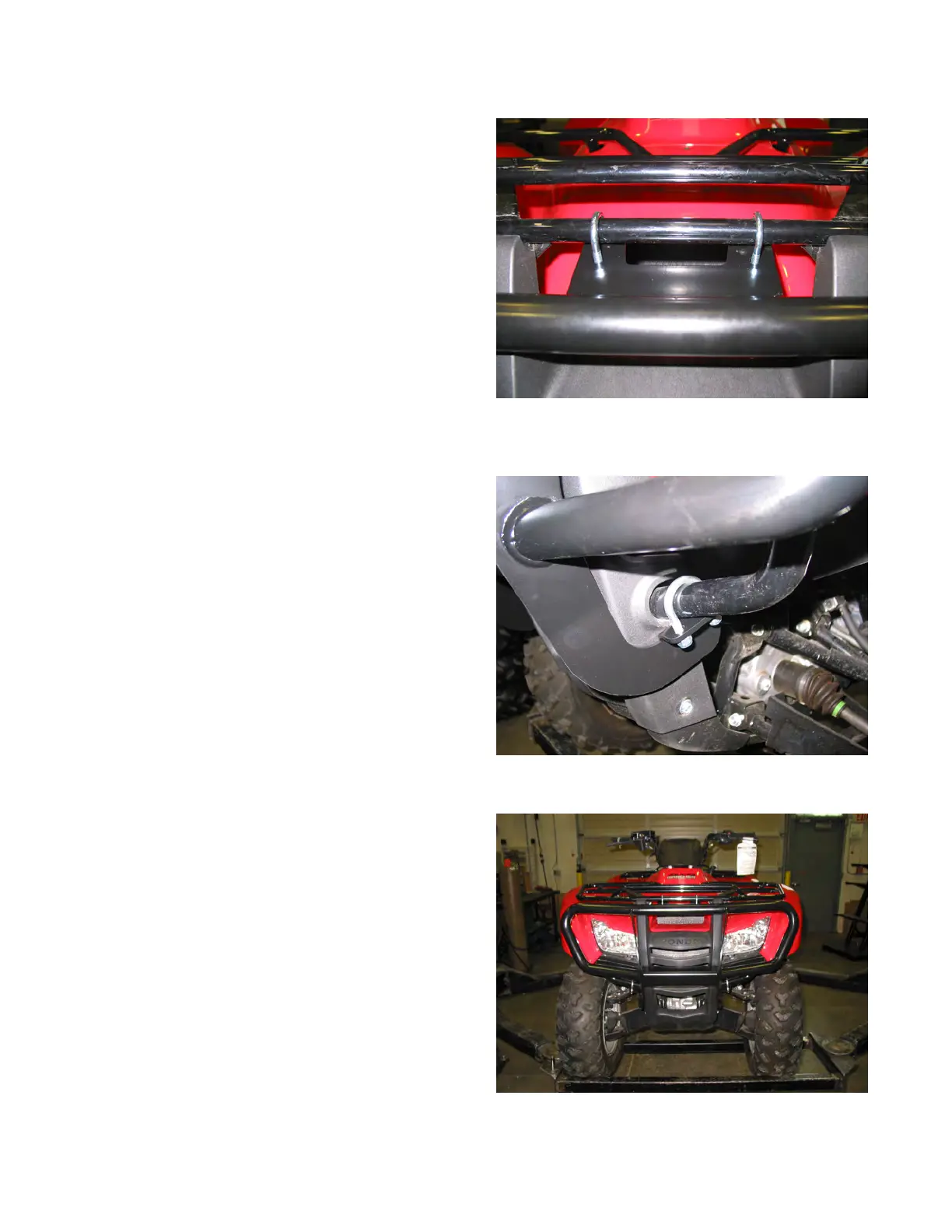

Figure 1
Figure 2
V. INSTALLATION
1. Loosely fasten the top bumper mounting tab to
the underside of vehicle rack using 1/4-20 u-bolts,
1/4 inch at washers and 1/4-20 lock nuts. See
gure 1.
2. Loosely secure bottom bumper mount tabs to
lower factory bumper tube. Use 5/16-18 u-bolts
with 5/16 at washers and 5/16 lock nut. See
gure 2.
3. Center bumper on vehicle and tighten down all
hardware.
Figure 3
