Warren rupp SANDPIPER S1FB1ABWANS000 - Repair Parts Information; Composite Repair Parts Drawing; Available Service and Conversion Kits

s1fmdl1sm-REV1207 Model S1F Metallic Page 12
29
OPTIONAL METALLIC SEAT
22
22
2
10
9
11
12
16
1
19
30
29
2
13
30
9
20
8
18
4
17
5
24
15
23
6
27
21
7
26
28
3
25
32
14
OPTIONAL MUFFLER
OPTIONAL OVERLAY
14
23
30
31

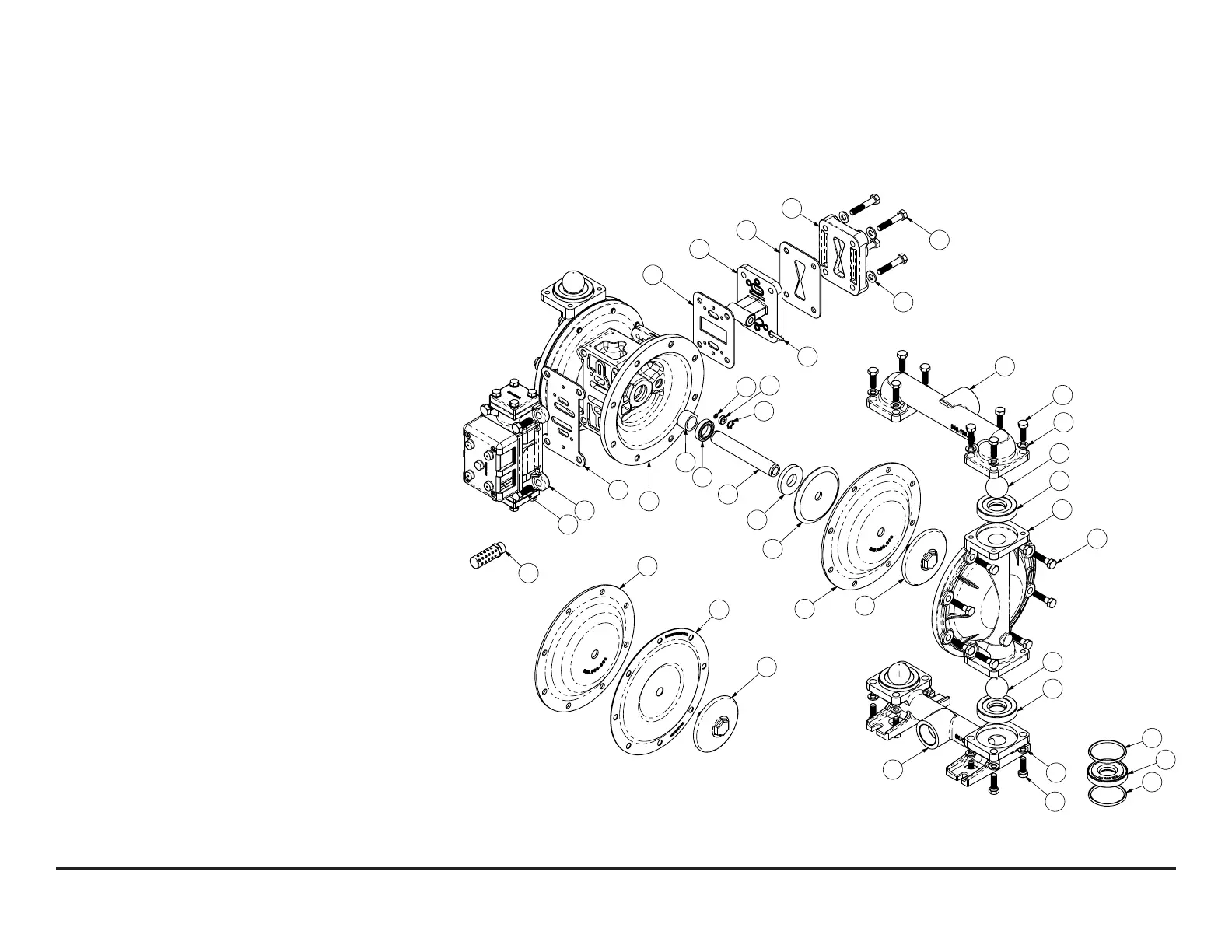

Composite Repair Parts Drawing
476-228-000 AIR END KIT (Aluminum Center)
Seals, O-ring, Gaskets, Retaining Rings, Air Valve
Sleeve and Spool Set, and Pilot Valve Assembly.
476-201-000 AIR END KIT (Air Valve with Stroke Indicator Pin, Aluminum Center)
Seals, O-ring, Gaskets, Retaining Rings, Air Valve
Sleeve and Spool Set, and Pilot Valve Assembly.
476-194-354 WET END KIT
Santoprene Diaphragms, Balls and Polyethylene Seats.
476-194-360 WET END KIT
Nitrile Diaphragms, Balls, and Polyethylene Seats.
476-194-365 WET END KIT
Neoprene Diaphragms, Balls, and Polyethylene Seats.
476-194-633 WET END KIT
FKM Diaphragms, PTFE Overlay, PTFE Balls and Seats.
476-194-635 WET END KIT
Neoprene Diaphragms, PTFE Overlay
Balls and Seats.
476-194-654 WET END KIT
Santoprene Diaphragms, PTFE Overlay,
PTFE Balls, PTFE Seats.
476-194-661 WET END KIT
EPDM Diaphragms, Santoprene Balls
and Polyethylene Seats.
476-194-659 WETTED END KIT
One-PIece Bonded PTFE/Nitrile Diaphragm,
PTFE Balls, PTFE Seats.
HARDWARE KITS
475-212-330 Zinc Plated Capscrews, Washers,
and Hex Nuts.
475-212-115 Stainless Steel Capscrews, Washers,
and Hex Nuts.
AVAILABLE SERVICE AND CONVERSION KITS
