s1fmdl1sm-REV1207 Model S1F Metallic Page 4

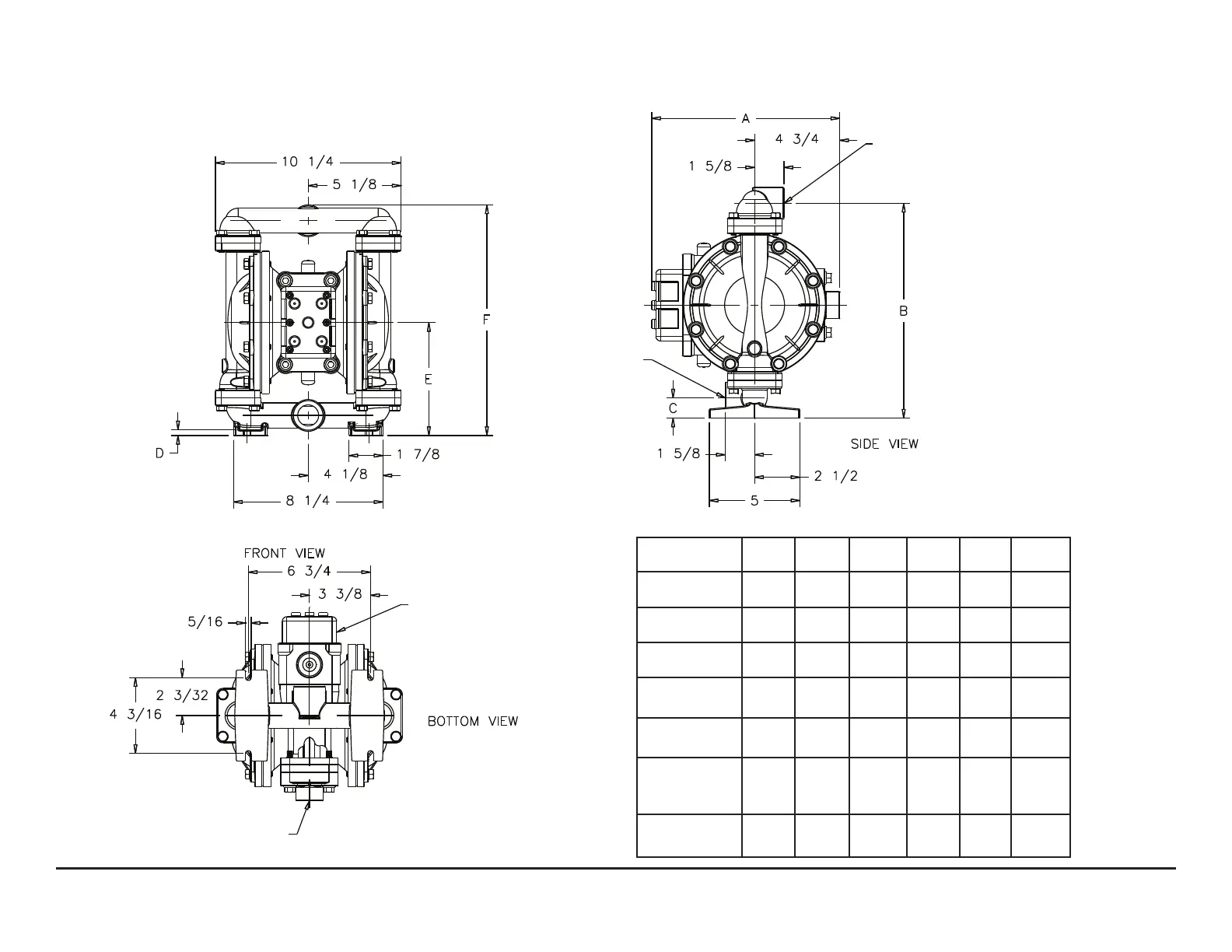

Dimensions: S1F Metallic
Pump Shown
With 530-028-550
Integral Muffler
Both Suction And
Discharge Ports Are
Available With
1" BSP Tapered Connection
Discharge Port
1" NPT
Suction Port
1" NPT
Air Inlet
1/2" NPT
Integral Muffler
1" NPT Exhaust Port
For Optional Muffler
Styles Or Piping Exhaust
Air In Submerged
Applications.
Dimensions in Inches
Dimensional Tolerance:±
1
/8"
Dimension
A
B C D E F
Encapsulated
Muffler
10 3/8
10 3/8
Pulse Output
Kit
Aluminum
11 27/32 1 3/32 5/16 6 7/32 12 23/32
11 31/32 1 7/32 7/16 6 11/32 12 27/32
Stainless
Steel
Mesh
Muffler
13
Sound
Dampening
Muffler
13
Metal
Muffler
12 1/2
