s1fmdl1sm-REV1207 Model S1F Metallic Page 25

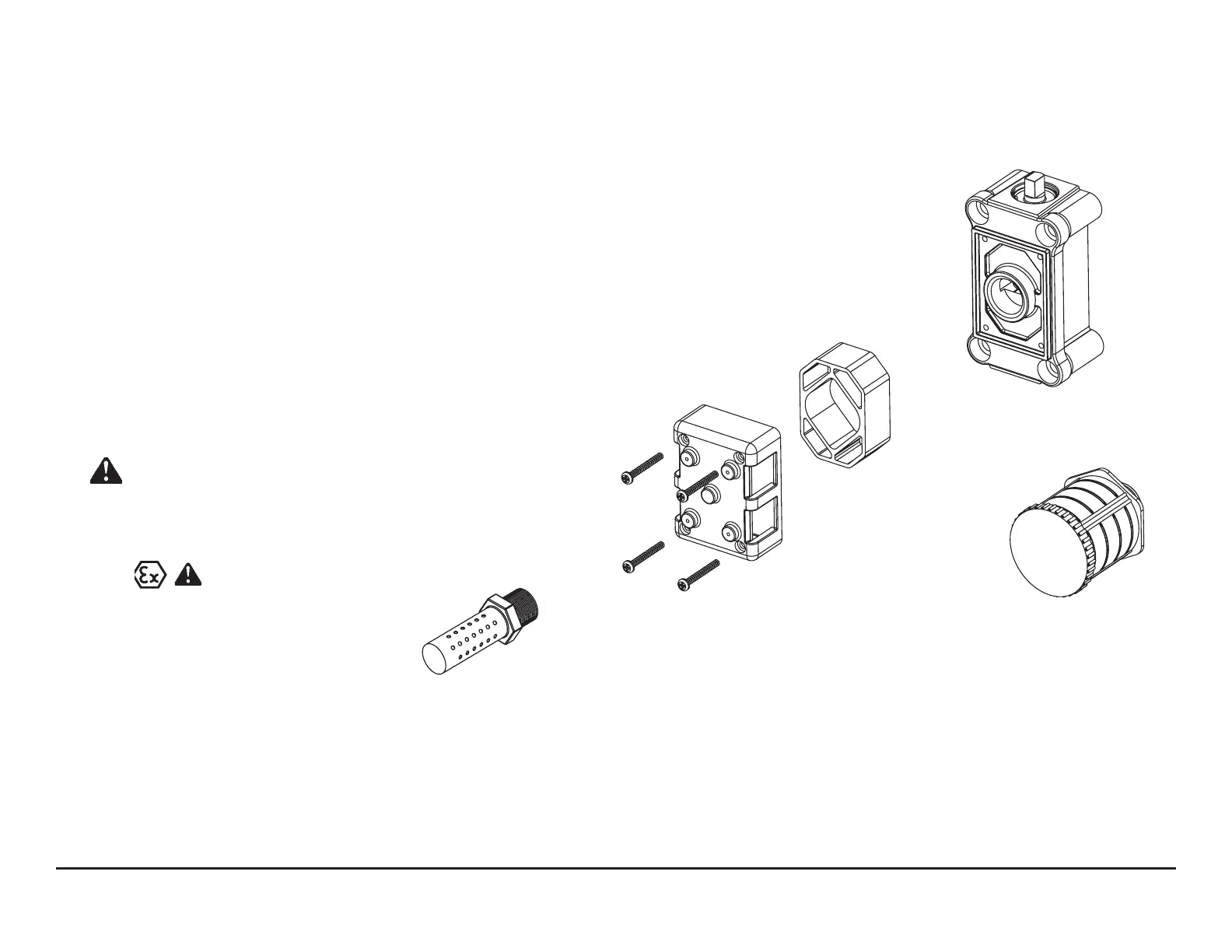

Optional Muffler Configurations, Drawing
OPTION 0
530-028-550 Encapsulated Muffler uses (1)
Cap and (4) 710-015-115 Self Tapping Screw
to hold it in place.
OPTION 1
530-027-000 Sound Dampening Muffler
screws directly into the Air Valve body.
This muffler is equipped with a porous
plastic element.
OPTION 2
530-010-000 Mesh Muffler screws
directly into the Air Valve Body. This
muffler is equipped with a metal element.
OPTION 6
530-033-000 Metal Muffler screws
directly into the Air Body.
Option 1 and 2
Option 6
Option 0
I M2 c T5
II 2GD T5
ATEX Compliant
