18. Engine Room Layout
18.1 Crankshaft distances
Minimum crankshaft distances are to be arranged in order to provide sufficient space between
engines for maintenance and operation.
18.1.1 In-line engines

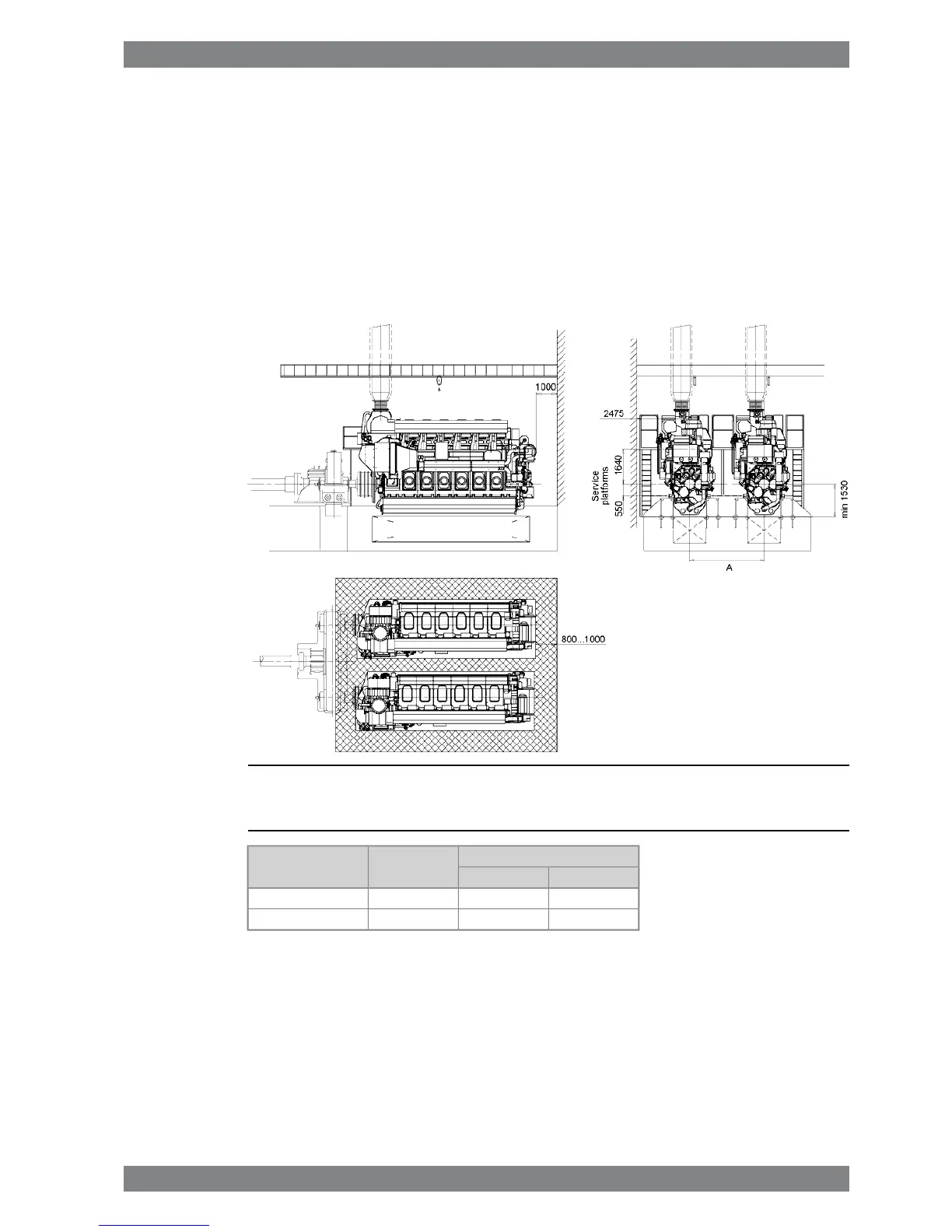

Fig 18-1 Engine room arrangement, in-line engines (DAAE044913B)
Table 18-1 Min. crankshaft distance
A [mm]
TC typeEngine type
RecommendedMin
34003200TPL 71C6L46F
37003500TPL 76C7L, 8L, 9L46F
Wärtsilä 46F Product Guide - a19 - 1 December 2017 18-1
18. Engine Room LayoutWärtsilä 46F Product Guide

Wartsila 14V46F Specifications

General

Number of Cylinders	14
Bore	460 mm
Stroke	580 mm
Cylinder Arrangement	V-engine
Fuel Type	Heavy fuel oil, Marine diesel oil
Engine Type	4-stroke turbocharged
Specific Fuel Oil Consumption	174 g/kWh (HFO)
