Detergent compartment
The detergent compartment has four compart-
ments for prewash, main wash, rinse and
bleaching agent/liquid detergent.
Themachine’sdetergentcompartmentisdescri-
bed more thoroughly in the section Detergent
compartment.
Drain valve
The valve is a diaphragm valve that is opened
and closed through water pressure. The control
valve is mounted by the water valves.
Themachine’sdrainvalveisdescribedmore
thoroughly in the section Drain valve.
Frame and suspension
The machines are freely suspended, i.e. the
drum package can move and is suspended in
relation to the frame. In this way, a minimum of
vibration passes to the bottom plate, which in
turn simplifies installation as a concrete founda-
tion is not required.
The machine has four shock absorbers between
the bottom plate and the drum package.
Themachine’sframeisdescribedmore
thoroughly in the section Frame.
11
11
11

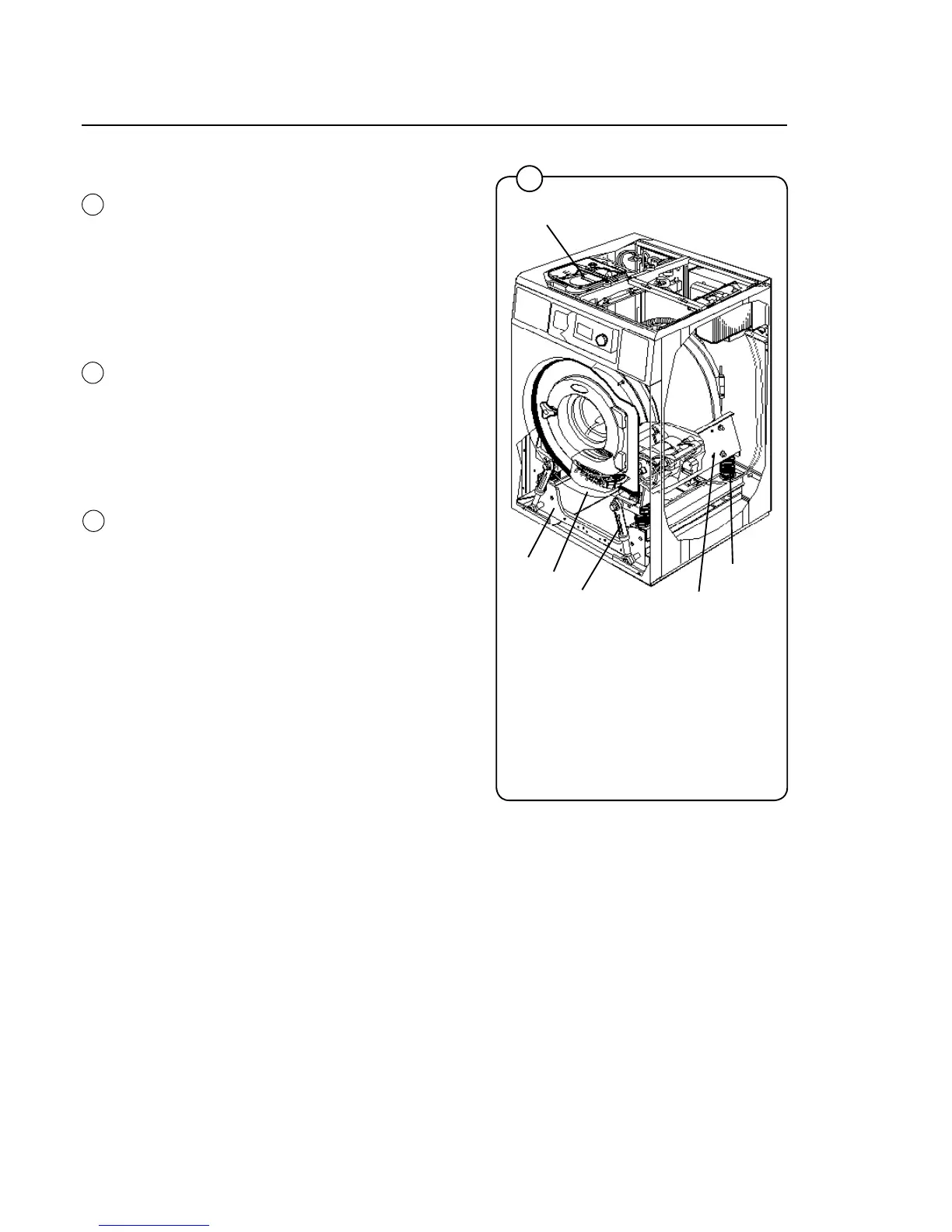

1. Detergent compartment
2. Outer Support
3. Shock absorbers
4. Drain valve
5. Inner support
6. Coil spring
Machine presentation
