Wascomat EX677 - Page 70

70

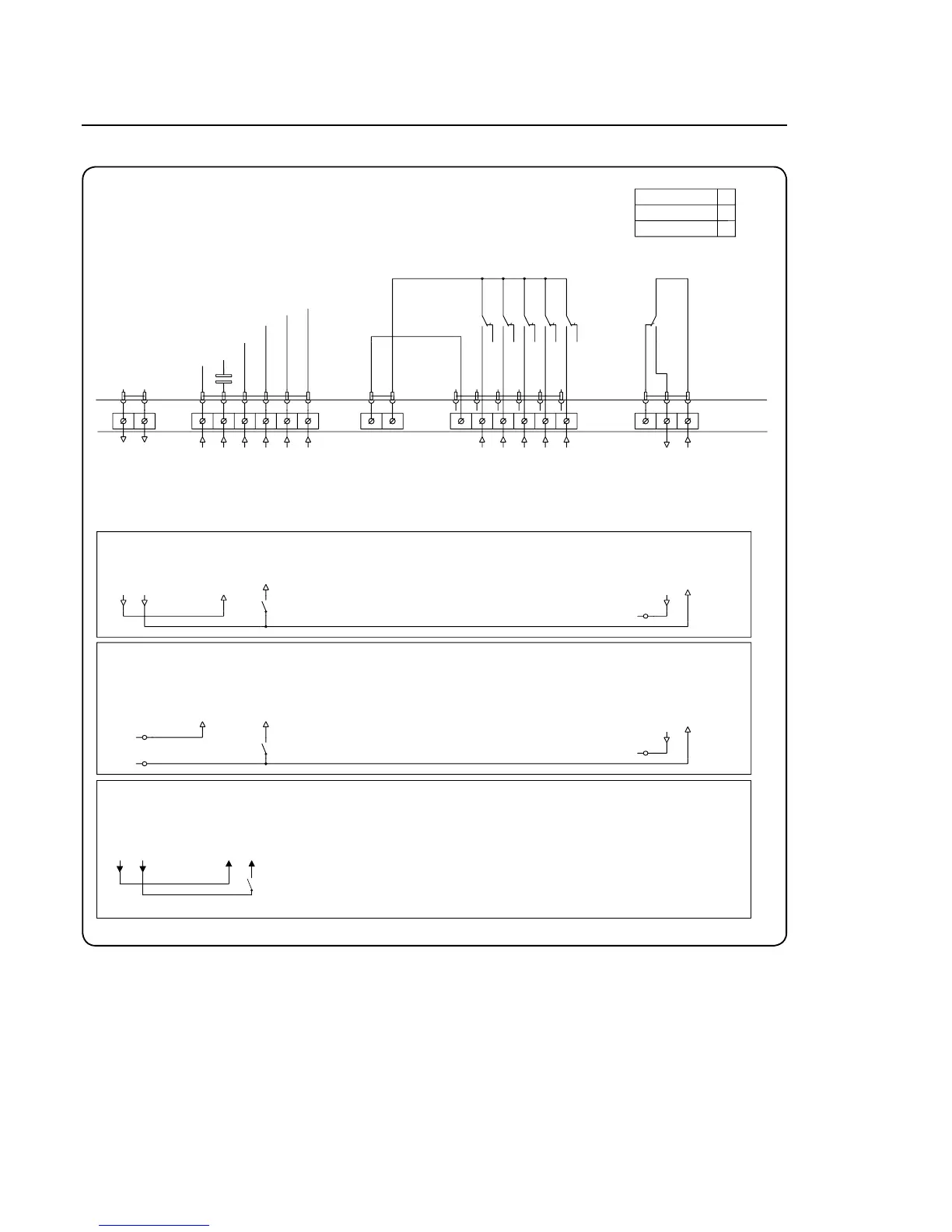

I/O modules
  



 
















 










       
       


 
 



   
     
     

  
  



     







22B
6316
• Tostartthemachinefromacentralpaymentsystem,thepaymentsystem
must transmit a start pulse to the machine. Door lock activates on positive
flank and program starts on negative flank of start pulse. The start pulse can
be either 230V or 24V. In order to receive a feedback signal once the machine
has started, 230V or 24V must be connected to connection 19. The feedback
signal on connection 18 remains active (high) during the entire wash program.
