Wascomat Junior W 75 - Page 13

6

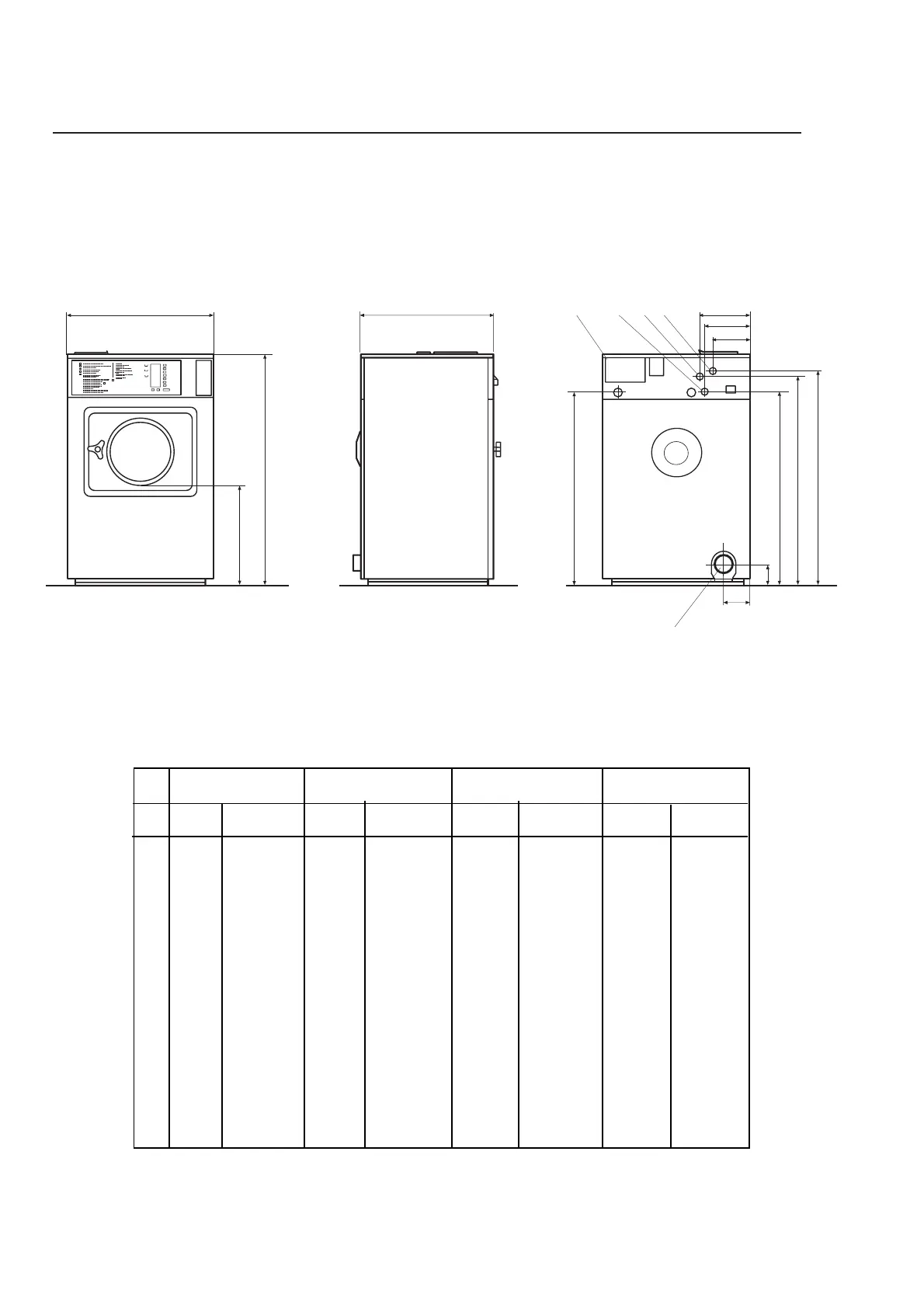

Outline and dimensions
Technical data
1 Cold water
2 Hot water
3 Hot water (W185)
4 Drain outlet
3210 A
B
A
CD
Electrical
cable
connection
E
2
31
N
L
M
J
H
K
F
G
4
W75 W105 W125 W185
mm inches mm inches mm inches mm inches
A 1050 41 5/16 1135 44 11/16 1196 47 1/16 1315 51 3/4
B 437 17 3/16 522 20 9/16 465 18 5/16 540 21 1/4
C 660 26 660 26 745 29 5/16 827 32 9/16
D 593 23 3/8 710 27 15/16 915 36 960 37 13/16
E 895 35 1/4 980 38 9/16 1040 40 15/16 1160 45 11/16
F 100 3 15/16 185 7 5/16 100 3 15/16 100 3 15/16
G 125 4 15/16 125 4 15/16 270 10 5/8 260 10 1/4
H 980 38 9/16 1065 41 15/16 1130 44 11/16 1255 49 7/16
J – – – – – – 1215 47 13/16
K 890 35 975 38 3/8 1035 40 3/4 1155 45 1/2
L – – – – – – 295 11 5/8
M 205 8 1/6 205 8 1/16 205 8 1/16 205 8 1/16
N 160 6 5/16 160 6 5/16 160 6 5/16 160 6 5/16
