7
W75 W105 W125 W185
mm inches mm inches mm inches mm inches
A 364 14 5/16 481 18 15/16 508 20 600 23 5/8
B 593 23 3/8 710 27 15/16 915 36 960 37 13/16
C 643 25 5/16 760 29 15/16 965 38 1010 39 3/4
D 100 4 100 4 115 4 1/2 115 4 1/2
E 530 20 7/8 530 20 7/8 600 23 5/8 700 27 9/16
G 700 27 9/16 700 27 9/16 815 32 1/16 900 35 7/16
H 643 25 5/16 715,6 28 3/16 786 30 15/16 922 36 1/8
I - - - - 991 39 1090 42 7/8
K - - - - 281 11 236 9 5/16
Installation
2
3
4
0271
1677
1132
Installation

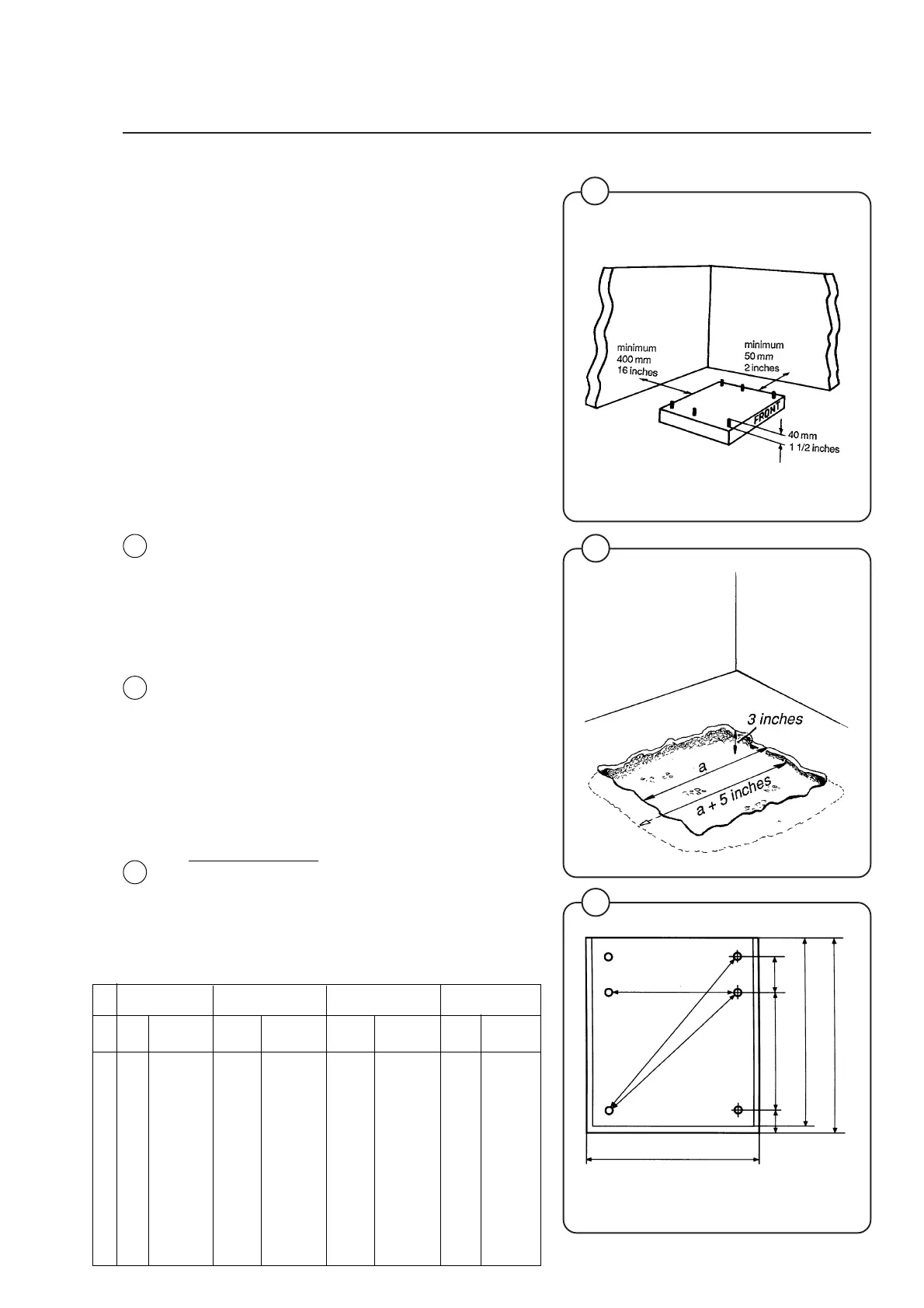

Machine foundation
The machines are designed to be bolted in
position to a concrete floor or specially prepared
concrete foundation. A template showing the size
of the foundation and positioning of the foun-
dation bolts can be provided by Wascomat.
For installation on an existing concrete floor, the
floor must be at least 8" thick and of good quality.
If the floor does not meet these requirements,
then a 6-8" high concrete foundation should be
made. A prefabricated steel base is available for
mounting of machines without an additional
foundation.
Follow the instructions below when making a
concrete foundation:
1. Decide where to place the machine and
consider maintenance requirements, i.e.
determine a suitable distance from the rear of
the foundation to the wall, and the distance
from the foundation to the nearest side wall.
The distance should be at least 16 and 12
inches, respectively.
2. Break up the floor to a depth of 3 inches,
making sure that the sides of the hole slope
inwards - the bottom of the hole should be 5
inches longer than the upper length.
3. Wet the hole well. Brush the bottom and sides
with cement grout.
4. Prepare a casing and fill with 3,000 PSI min.
concrete to form a pad. Make sure the foun-
dation is level.
5.
Use the template to position the foundation
bolts correctly - bolts are to extend 1 1/2"
above concrete.
NOTE: A prefabricated steel frame, designed
to be placed in the concrete instead of the
individual mounting bolts, is available from
Wascomat.
Fig.
2
Fig.
3
Fig.
4
B = machine outline to edge of front panel
C, G = minimum foundation for one machine
E
I
H
G
A
B
C
K
D
