24
Panels
The machines are equipped with a top panel made of stainless steel. The
front panel is available in different colours or in stainless steel. The colored
panels are made of phosphatized steel plate with electrostatically applied
baked enamel paint finish for rust and chip resistance. For servicing
purposes, the panels can easily be removed.

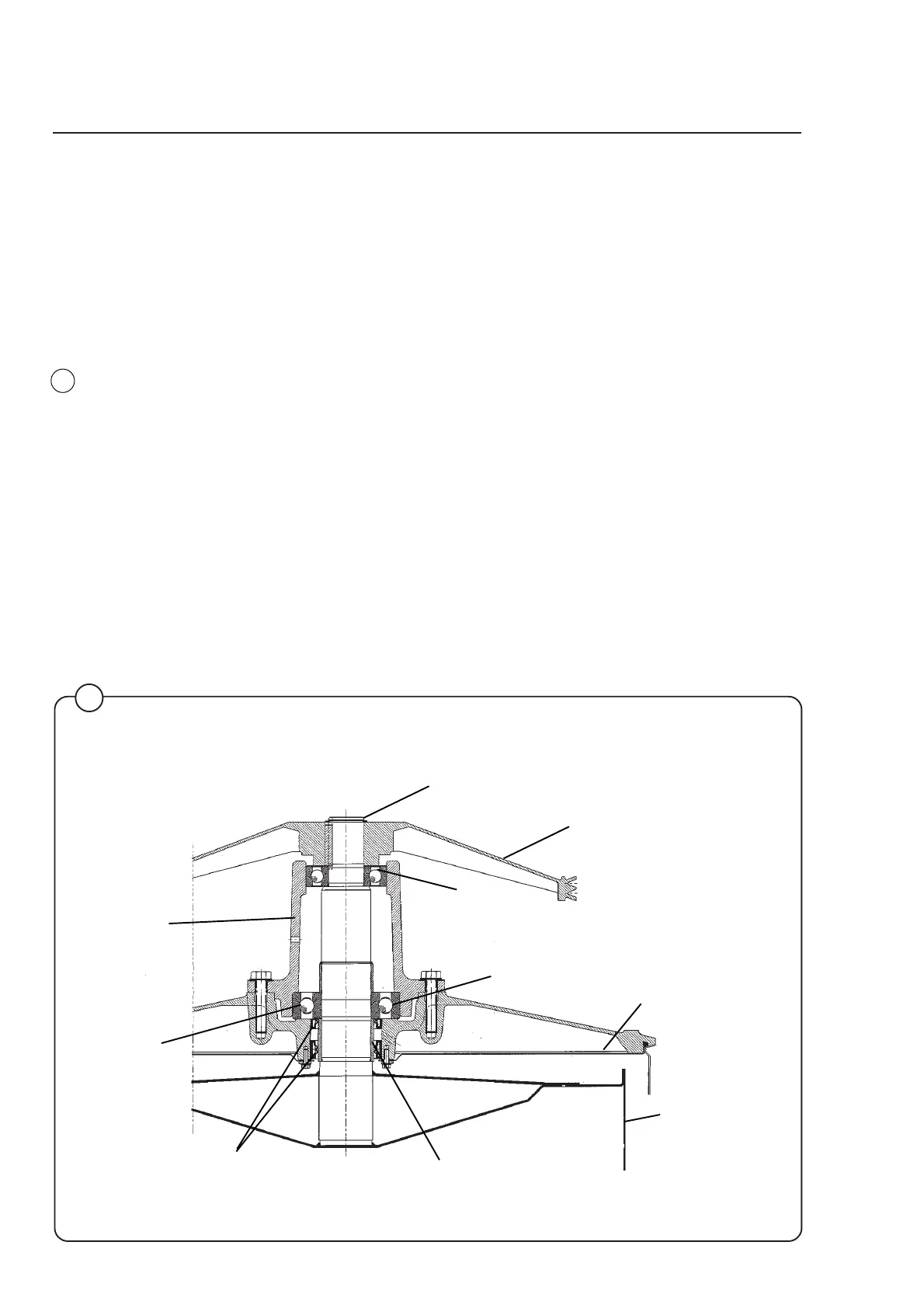

Back gable and bearing
The back gable and the bearing trunnion housing are constructed of a
webbed heavy casting for extra rigidity. The bearings are protected against
imfiltration of water by three neoprene seals. An intermediate safety outlet
provides an escape for any possible condensation.
The seals are mounted on a stainless steel, noncorrosive, specially harde-
ned sleeve bushing that is mounted on the drive shaft to prevent wear of
the seals and shaft. The main bearing is fitted machine-tight into the bea-
ring trunnion housing. A nut is tightened on the shaft to prevent the cylinder
from moving in and out.
The extension of the bearing trunnion housing supports the rear bearing
holding the shaft. A grease seal is mounted to prevent escape of grease.
The bearings are permanently lubricated and need no maintenance.
Wascomat's design transfers the weight of the loaded wash cylinder to the
largest possible surface area away from the bearings, for longest machine
life.
Mechanical and electrical design
31
1726
Fig.
31
W125
Clamp
Pulley
Rear
bearing
Front
bearing
Rear lining
Inner drum
Bushing
Seals
Front
bearing
Bearing
housing
