Mechanical installation
• Place wide steel shims on the concrete foun-
dation over the bolts.
• Lift the machine and lower it in position.
Never
use the door or the door handle to lift or lower
the machine.
• Check that the machine is level front-to-rear
and side-to-side and standing firmly on the
four (W75, W105) or six (W125 W185) sup-
porting points. Spacing washers must be
mounted if one or more of these points is not
resting against the floor/foundation.
• Place flat washers over the foundation bolts
and secure the machine in position by tighte-
ning the self-locking nuts. See illustration
below.
• Check and tighten the nuts every week for the
first month to compensate for any setting of
the foundation.

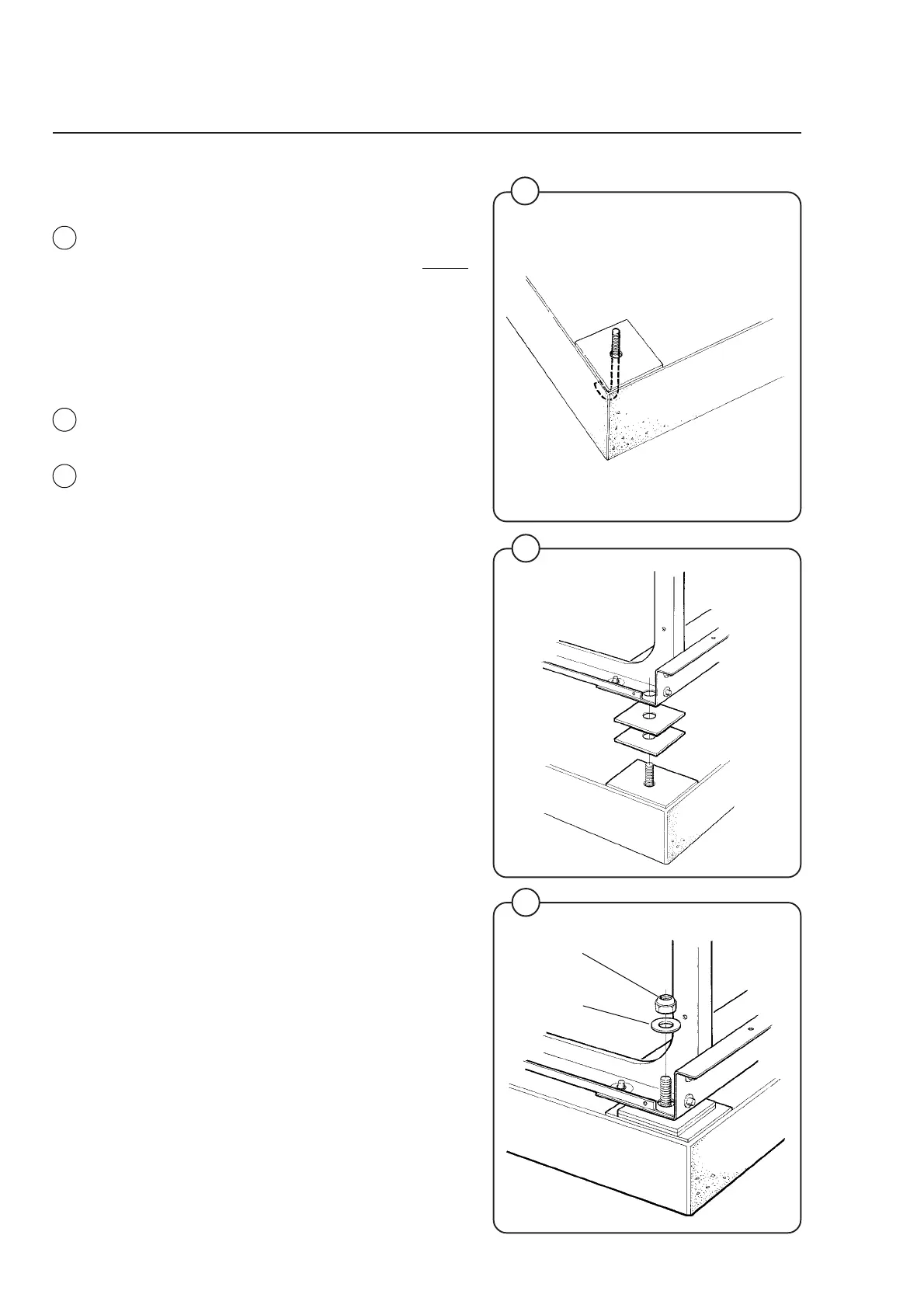

selflocking
nut
flat washer
Fig.
5
Fig.
7
Fig.
6
