Wascomat SU620 - Motor and Motor Control

25
6211
5189
5
6
2
1
3
2
M1
1
1. Motor control
2. Motor
1. Program unit A1
2. Power supply
3. Motor control U1
5
6
EX - model shown

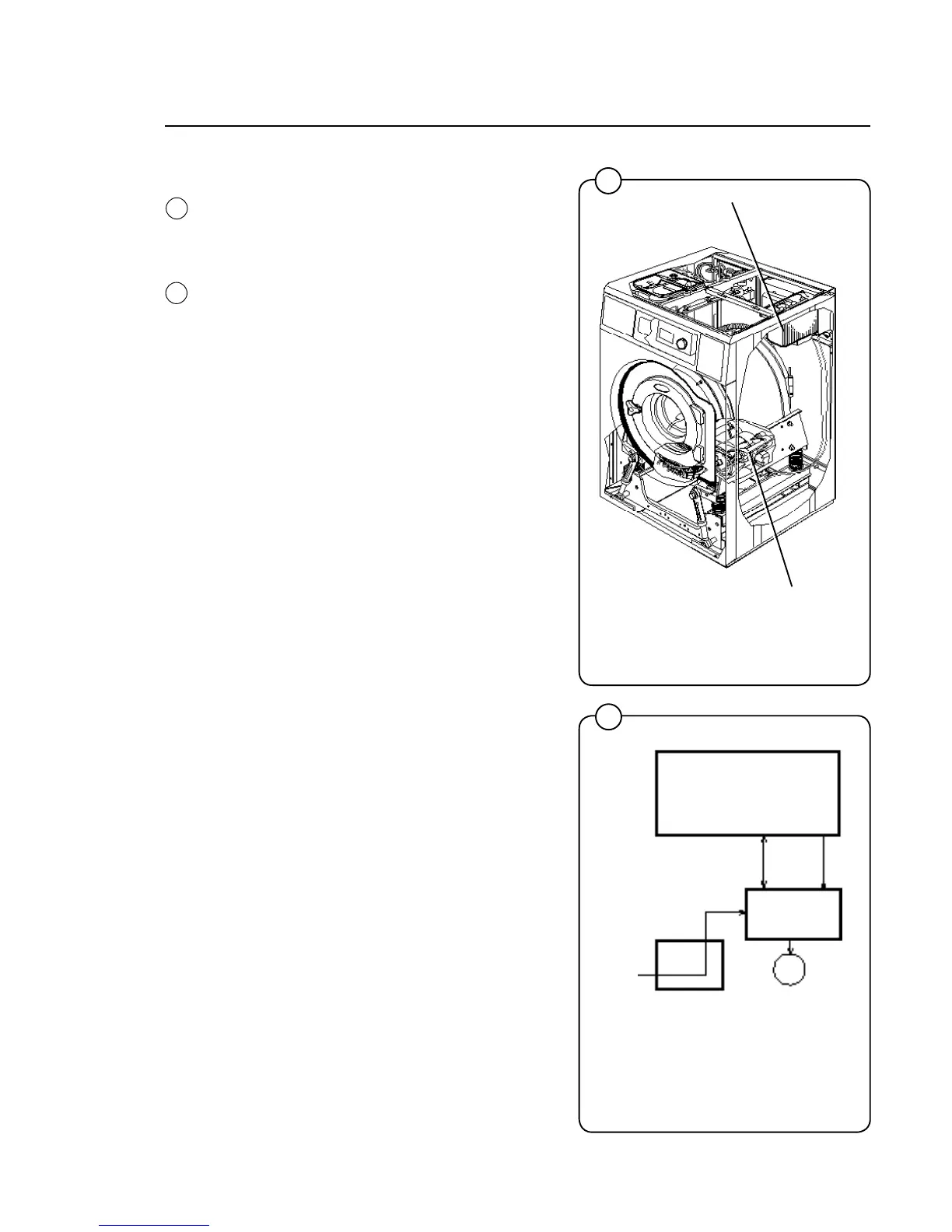

Machine presentation
Motor and motor control
The washer drum (inner drum) is belt driven by a
frequency controlled motor. The motor is located
on a motor shelf under the outer drum and has
been arranged with a belt tensioner.
Motor control is microprocessor controlled and
can control the acceleration of the drum, its rpm
and its retardation very precisely.
Motor control communicates with the program
unit through a serial interface.
The motor control is voltage-fed over a cable
which includes two fuses.
Themachine’smotorandmotorcontrolarede-
scribed in more detail in the section Motor.
