Wascomat SU620 - Addressing I;O Modules

76
I/O modules
6204
18
19
6204
6204
21
6580
22
18
19
20
CODE:
10103554
YOUR PASSWORD
0000
ADDRESS I/O BOARD
10.01.00.00
I/O BOARD 1
I/O BOARD 2
I/O BOARD 3
I/O BOARD 4
I/O BOARD 5

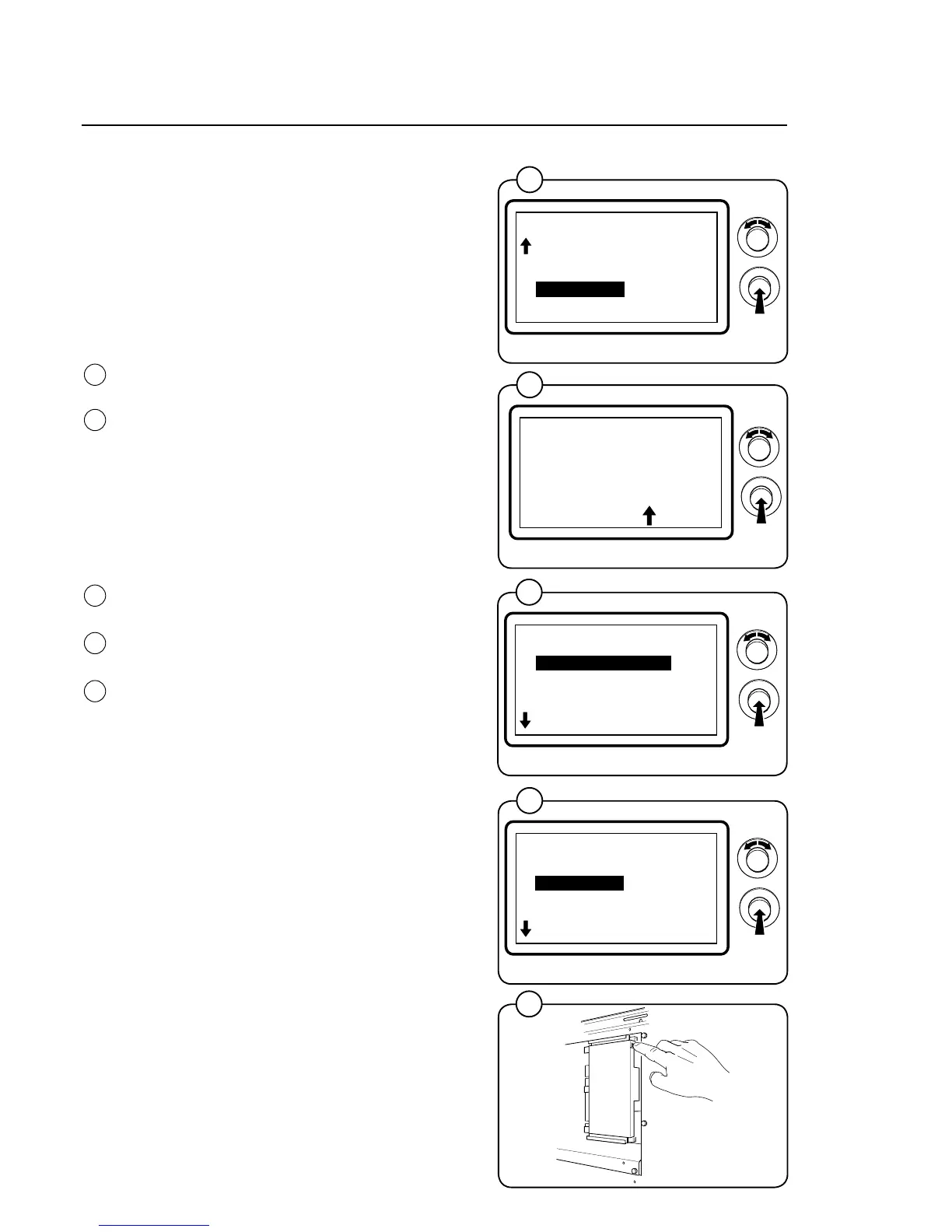

Addressing I/O modules
After replacing an I/O module or in instances
where a second module has been added to a
washing machine, the new I/O module must be
addressed in order to activate its function op-
tions. The function options of the module are
controlled by the parameter software loaded on
the relevant program device.
• Engagethemachine'sservicemode.
• HighlighttheI/OADDRESSlineinthemain
menu and press the knob.
The display will now show an 8-digit code.
• Callauthorisedserviceandquotethecode.
Authorised service will then assign a pass code.
• Enterthecodeyouhavebeengivenand
press the knob.
The I/O ADDRESS menu will appear in the dis-
play.
• SelectwetheranI/Omoduleshallbeaddres-
sed or removed.
• Ifaddressed,highlighttheI/Omoduleand
press the knob.
• PresstheserviceswitchontheI/Omodule
indicated in the display.
• WheremultipleI/Omodulesaretobeadd-
ressed, repeat the procedure for the relevant
modules.
• Exittheserviceprogram.
• Ifremoved,followtheinstructionsonthe
screen and press the service switch on the
I/O module to be removed.
• WheremultipleI/Omodulestoberemoved,
repeat the procedure for the relevant modu-
les.
• Exittheserviceprogram.
21
MAIN MENU
08.00.00.00
RESET TO FACTORY
ACTIVATE WASH PROGR.
QUICK START BUTTONS
I/O ADDRESS
PRICE PROGRAMMING
EXIT
6204
20
22
I/O ADDRESS
10.01.00.00
ADDRESS I/O BOARD
REMOVE I/O BOARD
EXIT
