I/O modules
16
6266
17
6265











24 V
230 V
• Connection8maybeconnectedifthereistobeapauseinthewash
program, e.g. while detergent is being dosed.

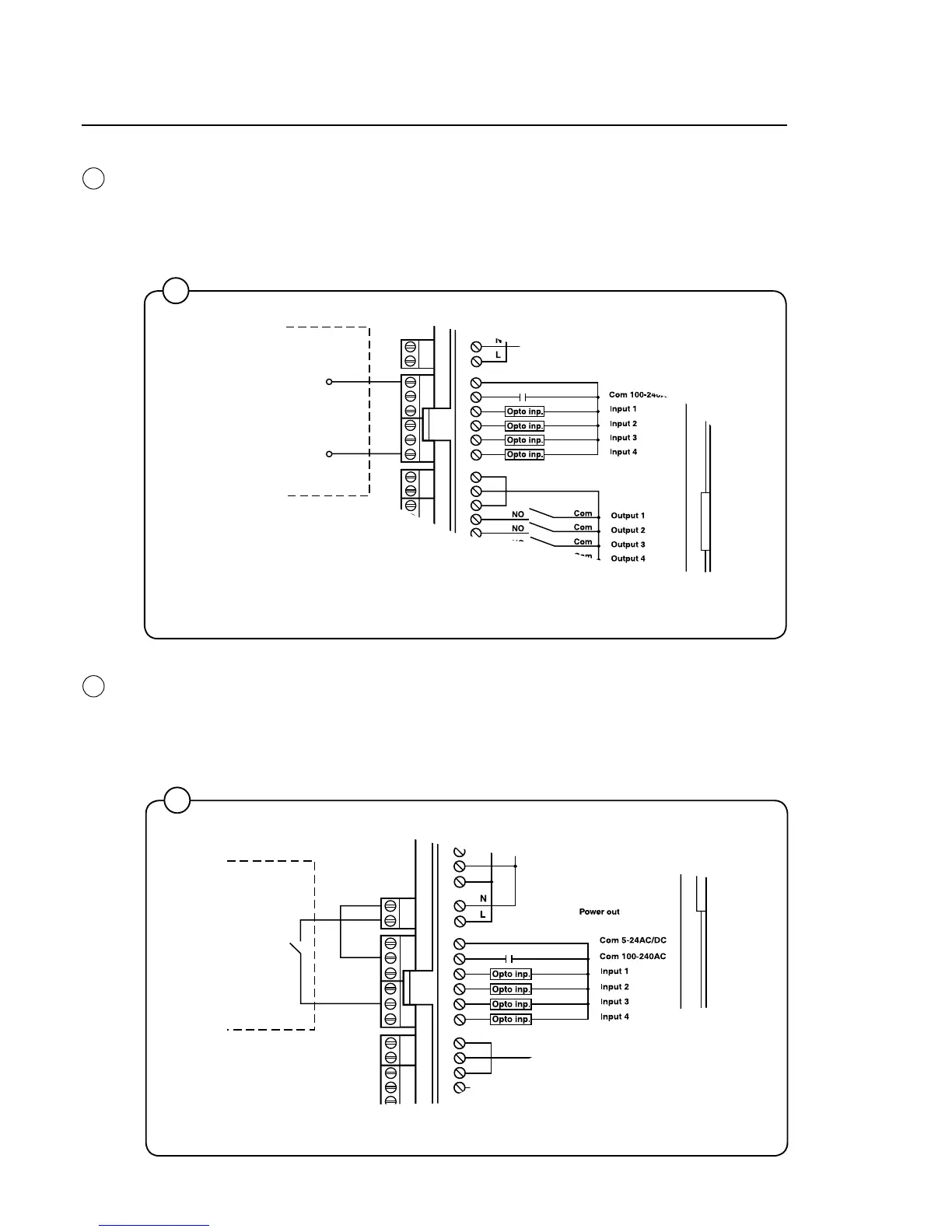

The figure shows an example of engaging a 24V pause signal. The wash
program will pause for as long as the pause signal remains active (high).
• Ifconnection7isconnected,anerrormessagewillbeshowninthe
display if any of the chemical tanks are empty. However, the wash pro-
gram will continue.
The figure shows an example of engaging a normal open contact.
16
17
